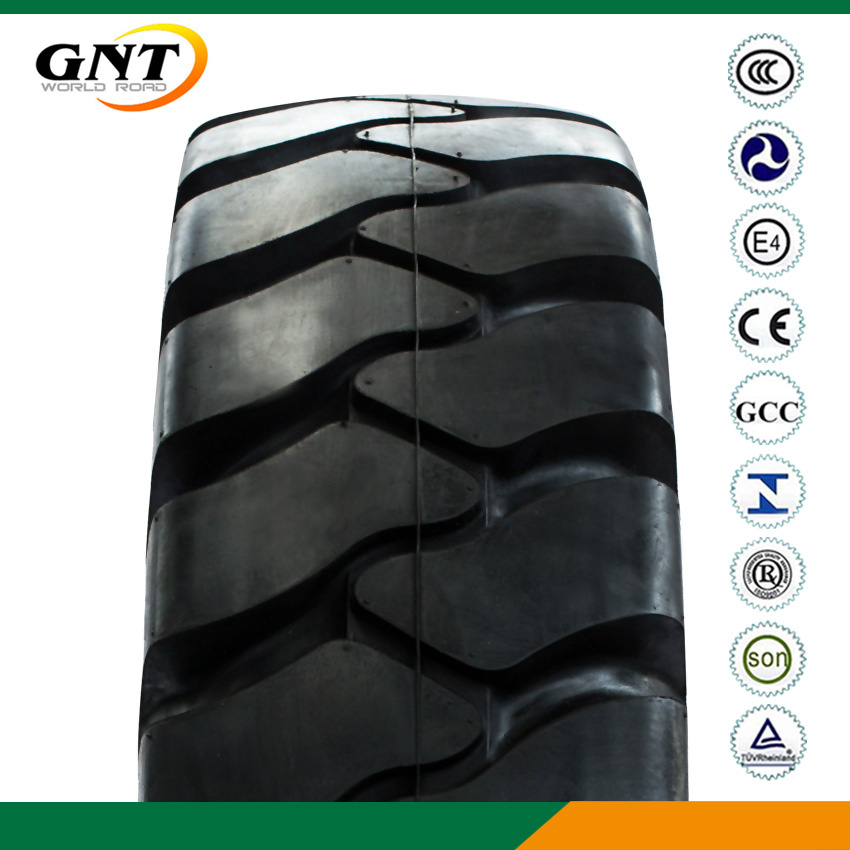

OTR Tire Nylon Industrial Offroad Mining Tyre 12.00-24
Price: |
US $ 400-1000/Piece |
Min Order: |
45/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
12.00-24 |
Pr: |
16/20/24/28/32/36/38/40 |
Rim: |
22.00/3.0 |
Load Rating: |
15500kg |
Pattern: |
OTR Tyre Pattern |
Type: |
Inner Tube |
Diameter: |
≥22" |
Tire Design: |
Bias Belted Tyre |
Certification: |
CE |
Tread Pattern: |
Cross-Country Tread Pattern |
Tire Hierarchy: |
28pr |
Product Description
Otr Tire Nylon Industrial Offroad Mining Tyre 12.00-24
Our OTR tyre advantages:
1. Our Radial and Bias OTR tyre suitable to Caterpillar, Komatsu, JCB, Hitachi Motor wheel loaders, dozers, excavators, scrapers, graders, dump trucks etc.
2.Our OTR tire with special tread compound provides excellent performance on quarry, construction sites and mining area with good cut resistance & heat resistance.
3. Our OTR tire capability: 3000pcs per day.
4. Our OTR tiredelivery time: for stock tyres 7 days, for new tyres 25 days.
5. Our OTR tire cooperation: for long terms and good aftersale services.
6. Our warranty: with test report and definite woking hours to confirm quality.
Product Description
Tyre Pattern E3L3 Features and Technidal Data .
Suits for construction machinery transporter in mine and other building sites.
With excellent traction, cut-resistance and avulsion resistance features. Size | Ind code | PR | Standard Rim | Section Width(Mm) | Overall Diameter(Mm) | Max Load(Kg) | Tread Depth (Mm) |
13.00-25 | E3 | 28 | 10.0 | 350 | 1300 | 9000/4750 | 30 |
14.00-24 | E3 | 16 | 10.0 | 375 | 1370 | 7300/4000 | 30 |
14.00-24 | E3 | 24 | 10.0 | 375 | 1370 | 9500/5150 | 30 |
16.00-25 | E3 | 28 | 11.25/2.0 | 430 | 1490 | 11500/6700 | 30 |
18.00-25 | E3 | 28 | 13.00/2.5 | 495 | 1615 | 13600/8000 | 30 |
18.00-25 | E3 | 32 | 13.00/2.5 | 495 | 1615 | 15000/8750 | 30 |
18.00-25 | E3 | 40 | 13.00/2.5 | 495 | 1615 | 17000/9750 | 30 |
17.5-25 | E3/L3 | 12 | 14.00/1.5 | 445 | 1350 | 6150/3650 | 26 |
17.5-25 | E3/L3 | 12 | 14.00/1.5 | 445 | 1350 | 6150/3650 | 30/25.5 |
17.5-25 | E3/L3 | 16 | 14.00/1.5 | 445 | 1350 | 7300/4250 | 26 |
17.5-25 | E3/L3 | 16 | 14.00/1.5 | 445 | 1350 | 7300/4250 | 30/25.5 |
20.5-25 | E3/L3 | 16 | 17.00/2.0 | 520 | 1490 | 8250/5450 | 29 |
20.5-25 | E3/L3 | 16 | 17.00/2.0 | 520 | 1490 | 8250/5450 | 32/28.5 |
20.5-25 | E3/L3 | 20 | 17.00/2.0 | 520 | 1490 | 9500/6000 | 29 |
20.5-25 | E3/L3 | 20 | 17.00/2.0 | 520 | 1490 | 9500/6000 | 32/28.5 |
23.5-25 | E3/L3 | 16 | 19.50/2.5 | 595 | 1615 | 9500/6150 | 32 |
23.5-25 | E3/L3 | 16 | 19.50/2.5 | 595 | 1615 | 9500/6150 | 36/31.5 |
23.5-25 | E3/L3 | 18 | 19.50/2.5 | 595 | 1615 | 10050/6700 | 32 |
23.5-25 | E3/L3 | 18 | 19.50/2.5 | 595 | 1615 | 10050/6700 | 36 |
23.5-25 | E3/L3 | 20 | 19.50/2.5 | 595 | 1615 | 10900/7300 | 32 |
23.5-25 | E3/L3 | 20 | 19.50/2.5 | 595 | 1615 | 10900/7300 | 36/31.5 |
23.5-25 | E3/L3 | 24 | 19.50/2.5 | 595 | 1615 | 12500/8000 | 36/31.5 |
26.5-25 | E3/L3 | 20 | 22.00/3.0 | 675 | 1750 | 13200/8250 | 35 |
26.5-25 | E4/L4 | 20 | 22.00/3.0 | 675 | 1800 | 13200/8250 | 54 |
26.5-25 | E3/L3 | 28 | 22.00/3.0 | 675 | 1750 | 15500/10000 | 54 |
26.5-25 | E4/L4 | 28 | 22.00/3.0 | 675 | 1750 | 15500/10000 | 54 |
29.5-25 | E3/L3 | 22 | 25.00/3.5 | 750 | 1875 | 15000/10000 | 43 |
29.5-25 | E3/L3 | 28 | 25.00/3.5 | 750 | 1875 | 17500/11500 | 43 |
29.5-29 | E3/L3 | 28 | 25.00/3.5 | 750 | 1975 | 19000/12100 | 43 |

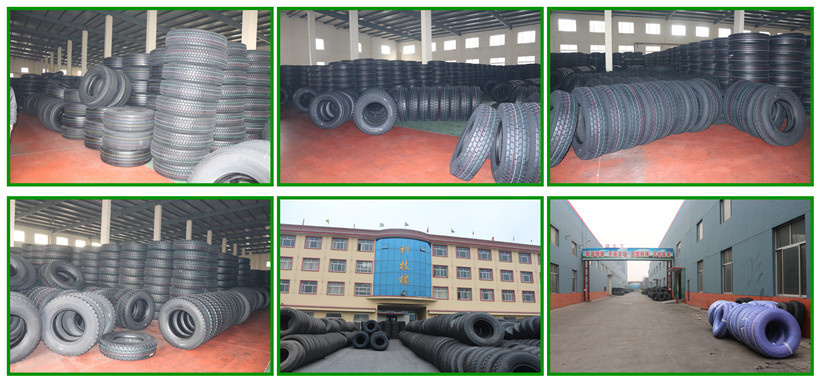

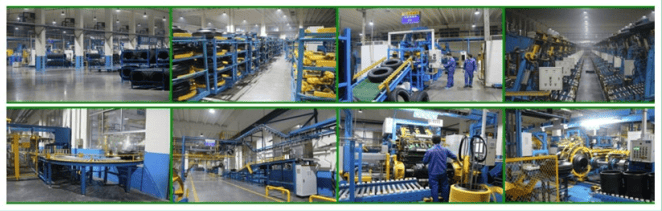

The production line of tyre : Any questions of otr tyres will be appreciated.Welcome to contact with me . /Tel: +86-15963602734
Weifang gunaite Rubber Co., Ltd. Was founded in 1980, is located in the Chinese rubber tire manufacturing industry of Shandong Province, Weifang City, the existing staff of five hundred people, was on the verge of open city of Qingdao, Yantai, Dalian, Rizhao Port, geographical location and environment, convenient traffic, is a collection of R & D and rubber products manufacturing, sales of high-quality strong, durable, and suitable for special purposes, tires and other products and services in one of the professional tire company.
The company mainly produces various truck tires, light truck tires, specifications and varieties of agricultural tires, OTR tires, industrial tires, special tires, product sales all over the country and exported to many countries and regional Corporation in Europe and the United States has advanced production equipment and the ability to meet international requirements, fully equipped Development Laboratory, strict implementation of ISO 9001 quality system and strict implementation of RoHS directive, the overall operation of the enterprise resource planning computer management system, and the application of Six Sigma management mode to protect the product defect rate of less than three point four parts per million, all products are insured by the People's Insurance Company of China, so as to guarantee customers a comprehensive, the rights and interests of consumers.
We have a high-quality product manager and customer manager team, customers can become a close advisor. We based on the fundamental, committed to the development of the industry. We implement provide guarantee product concept, let us win the customers at home and abroad.
We expect and welcome friends from all walks of life together with cooperation, create a better future!
