XTOOL EZ400 Diagnosis System
Two years free software update and one year warranty)
Powerful, Fast, Economical! More than Diagnosis!
EZ400 is a high-end and new style auto diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking. EZ400 provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for works.
Features:
*Easy registration with EZ400 connected to WIFI
*Wireless diagnosis via Bluetooth
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*7 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes
Easy registration with EZ400 connected to WIFI. Don't bother to use PC for registration.
Wireless diagnosis via ultrafast Bluetooth technology
One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!
Extensive vehicle coverage for most US, Asian and European vehicle makes
American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn
Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV
Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more
Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...
Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer,
Body (ECM), Chassis...
Basic function: read fault codes, clear fault codes, live data, actuation
Accurate live data in both Wave and Dashboard form
Special function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment..
Operating System: |
Android 4.4.4 |
Memory: |
1GB RAM,16GB Flash |
CPU |
Quad Core, 1.3 GHz |
Display |
7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
Sensors: |
Gravity Sensor, Light Sensor |
Input/Output: |
Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USB Port, TF Card Port |
Battery: |
2400mAh, 3.7V |
Power Voltage: |
5V |
Power Consumption: |
8W |
Operating Temperature: |
-20 to 50ºC(-4 to 126ºF) |
Humidity: |
<90% |
Dimension: |
(L*W*H): 208*140*15.5mm |

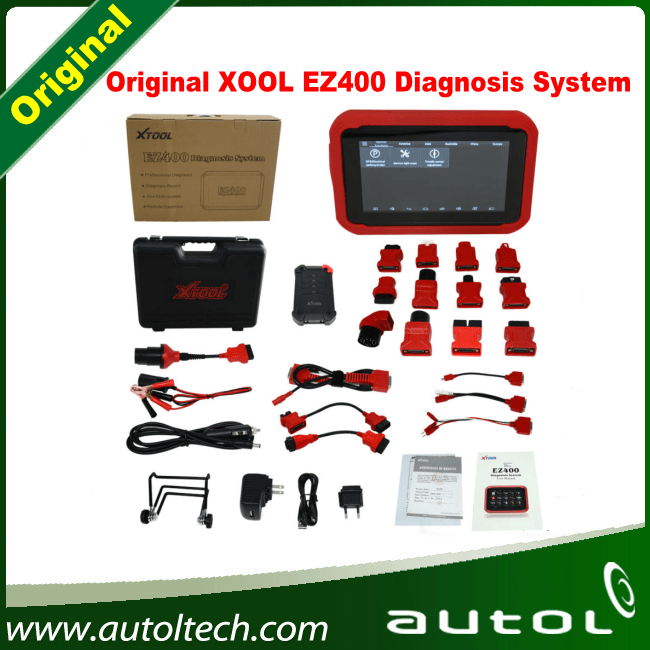

Packing list:
Type |
Name |
QTY |
Test Connectors |
OBD II-16 |
1 |
|
HONDA-3 |
1 |
|
BMW-20 |
1 |
|
TOYOTA-17 |
1 |
|
MAZDA-17R |
1 |
|
KIA-20 |
1 |
|
HYUNDAI/KIA-10 |
1 |
|
NISSAN-14 |
1 |
|
GM/DAEWOO-12 |
1 |
|
SELFTEST |
1 |
|
UNIVERSAL-3 |
1 |
|
SUZUKI-3 |
1 |
|
FIAT-3 |
1 |
|
CITROEN-2 |
1 |
|
AUDI-4 |
1 |
|
MITSUBISHI-12+16 |
1 |
|
BENZ-38 |
1 |
|
BENZ-14 |
1 |
|
Main Cable |
1 |
|
battery Cable |
1 |
|
Cigar Lighter Cable |
1 |
Main Units |
EZ400 Tablet |
1 |
|
VCI Box |
1 |
|
Charger for Tablet |
1 |
|
US Power Adapter |
1 |
|
EU Power Adapter |
1 |
|
Micro USB Cable |
1 |
|
Case |
1 |
|
Stand for EZ400 |
1 |
Accessories |
Certificate of Quality |
1 |
|
Packing List |
1 |
|
User Manual |
1 |
|
Carton |
1 |
