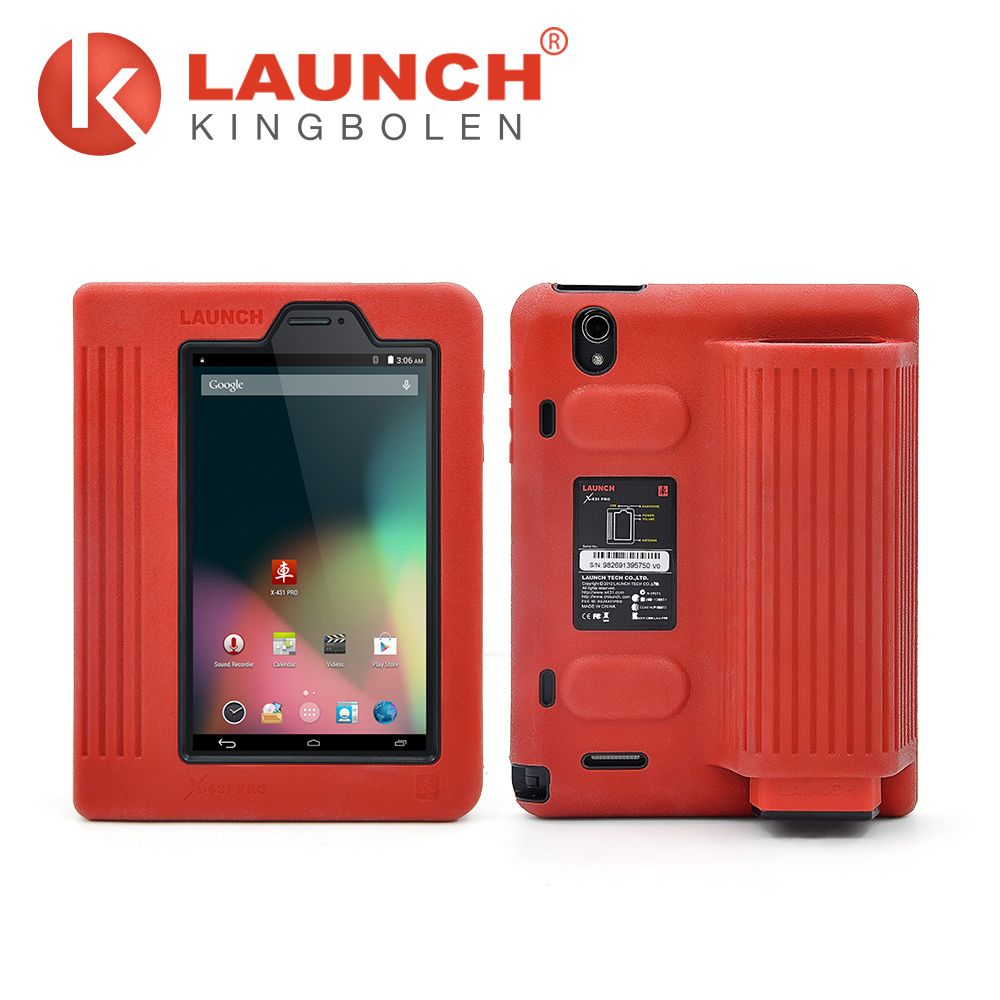

Original Launch X431 PRO Diagnostic Tool Global Version X431 V PRO Update Online X-431 PRO WiFi/Bluetooth Replace Diagun 3

Original Launch X431 Pro Diagnostic Tool Global Version X431 V PRO Update Online X-431 pro Wifi/Bluetooth Replace diagun 3

 X-431 PRO is a new type of auto diagnostic device developed by LAUNCH based on Android system and Internet application. It inherits LAUNCH company's product features of vast cover of car modules, strong diagnostic functions, many special functions, and precise test data Through Bluetooth communication between diagnostic connector and smart terminal device to realize all car modules and full system auto malfunction diagnosis. X-431 PRO has the application advantage of mobile Internet, which could sharing the Maintenance and cases database of the DBScar network., also provide instant maintenance information, create public and private circle and so on. So as to enter a vast auto diagnostic community. This is an internet application based classic diagnostic device provided by Launch to diagnostic industry.

Car owners can rely on the corporation of DBScar and smart phones to diagnose full vehicle system, and then the diagnostic report is generated. After that, the report is transmitted to relevant repair shop or maintenance technician (X 431 PRO holders). They can use the user management interface on X431 PRO to check the report, in order to provide the remote consultation and maintenance advice to car owners.



Launch X431 Pro Features:
1.tablet with high configuration;
2.multi-point capacitive touch screen;
3.Bluetooth diagnosis;
4.online service
5.light and small;
6.multitask on one screen;
7.support WIFI;
8.open Android platform;
9.many additional functions.

Pannel PC Parameters:
Operating System: Android
CPU: Dual core 1GHz
Battery: 3000mh, rechargeable polymer lithium battery
Standby time: it is subject to the using environment. Generally it can keep working for 4 hours.
Extension memory card: 32G Micro SD(TF) card supported
Memory: 512MB
Storage capacity: 2GB
LCD: 7.0 inch
LCD resolution: 1024X600
Touch screen: 5 points capacitive touch screen
Cameras: 2 mega rear and 0.3 mega front
Working temperature: -10°C ~ 55°C (14°F to 131°F)
Storage temperature: -20°C ~ 70°C (-4°F to 158°F)

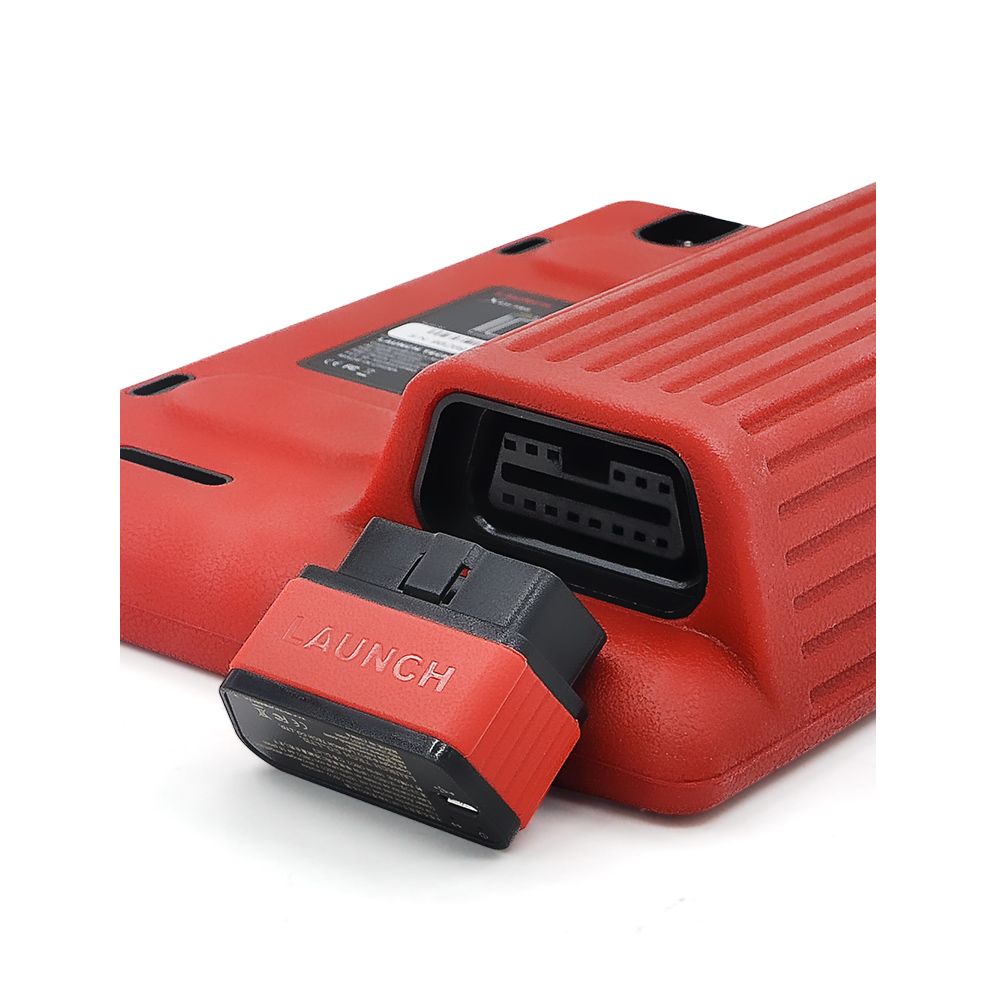

DBSCar Connector Parameters:
Working Voltage: 9 ~15V
Average working current: about 35mA
Standby current: about 25mA
Working temperature: -20 to 55°C (-4°F to 131°F)
Storage temperature: -30 to 70°C (-22°F to 158°F)
Storage humidity: <80%
Working humidity: <60%
Net weight: about 26g
Bluetooth Distance: 10M (without obstacle)

If you want more supported car list, please kindly contact us directly.
