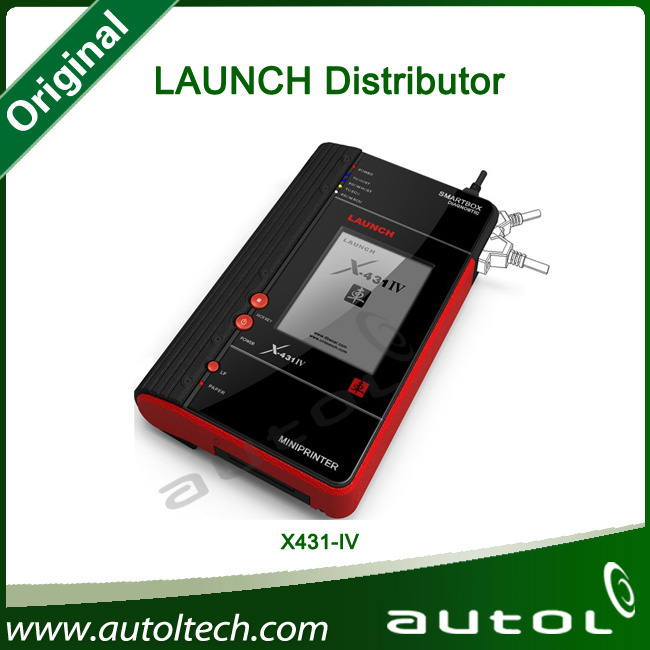

Original Launch LAUNCH X431 Master X431 IV Professional diagnostic tool
Product Description
launch X-431 IV is an classic,economical,simple,steady vehicle diagnostic tool newly released by Launch. It follows the open platform of X431 series, also it inherits many advantages of X431 including a wide coverage of vehicle models, powerful testing functions and accurate test data. At the same time,the unique rotatable diagnostic connector design is convenient for use"s operating.It"s a cost-effective diagnostic product on the market.
Feature
a)Diagnostic functions: trouble diagnosis of automotive ECU"s; (Features including: read trouble code, clear trouble code, read data stream and special features), the diagnostic software completely consistent with that of X431, fully inherited the advantages of X431 including wide coverage of vehicle models and high precision test;
b)PDA functions: (handwriting with stylus, personal data management, English-Chinese dictionary, etc.);
c)Optional functions: creation of repair files and access to maintenance data);
d)Mini printer (can be used with X431PCCENTER to connect to the computer for storage of vehicle test data
Specification
Operating system: LINUX operating platform
Memory: 16M
CF card: 1G
Host power supply: DC12V
Host power: about 9W
Printer: Mini high-speed thermal printer
Display: large 240 × 320 touch inductive LCD screen, with backlight
Ambient temperature :-10ºC-55 ºC
Relative Humidity: <90%
Product Dimension: 198mm × 316mm × 55.5mm
Components Sketch:
1, Diagnostic connector (rotatable)
2, SMARTBOX Power indicator
3, Indicator to show SMARTBOX sending data to the main unit
4, Indicator to show SMARTBOX receiving data from the main unit
5, Indicator to show SMARTBOX sending data to ECU
6, Indicator to show SMARTBOX receiving data from ECU
7, Serial port (to connect with PCLINK for extending functions)
8, Touch screen
9, HOTKEY button
10, Power button
11, Printer LF button (paper feed)
12, Printer ready indicator
13, Paper out (printed the data)
14, CF card slot (to install CF card)
15, Printer cover (to install printing paper)
16, Stylus slot ( to place the stylus)
Car List:
Demo, Smart diagnostic software, Smart OBDII
America: America Ford, Chrysler, GM, Acrus, INFINITI, Lexus.
Australia: Australia Ford, Holden
Brazil: Brazil GM
India: Indonesia Daihatsu, Indonesia Suzuki, Mahindra, MARUTI, TATA
Japan: Daihatsu, Honda, JP Isuzu, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
Europe: Audi, Benz, BMW, Citroen, Europe Ford, Fiat, Jaguar, Lancia, Landrover, Opel, Peugeot,
Porsche, Renault, Romeo, Rover, Saab, Seat, Skoda, Transporter&V-Class, Volkswagen, Volvo
China: Brilliance, BYD, Changan, ChangCheng, Changhe, Chery, GEELY, Gonow, HaFei, JAC,
Jiangling, SGMW, Tianjin, Xiamen Golden, XinKai, ZhongShun, Zhongxing, ZOTYE
Korea: Daewoo, Hyundai, Kia, Ssangyong
Malaysia: Perodua, Proton
Russia: GAZ, VAZ
S.Africa: S.Africa Opel
Thailand: Thailand Isuzu
X-431 IV Oversea Full Configuration Software List
No. | Origin | Software Name | Version | No. | Origin | Software Name | Version |
1 | - | Demo Software | V14.40 | 33 | Europe | BMW diagnostic software | V46.10 |
2 | Smart OBDII diagnostic software | V22.14 | 34 | Citroen diagnostic software | V40.54 |
3 | America | America Ford diagnostic software | V41.91 | 35 | Europe Ford diagnostic software | V41.10 |
4 | Chrysler diagnostic software | V28.04 | 36 | Fiat diagnostic software | V32.90 |
5 | GM diagnostic software | V42.90 | 37 | Jaguar diagnostic software | V18.13 |
6 | X431, Acura Diagnostic Software | V10.41 | 38 | Lancia diagnostic software | V15.80 |
7 | X431, INFINITI Diagnostic Software | V10.40 | 39 | Landrover diagnostic software | V31.50 |
8 | X431, Lexus Diagnostic Software | V10.80 | 40 | Opel diagnostic software | V40.00 |
9 | Australia | Australia Ford diagnostic software | V25.12 | 41 | Peugeot diagnostic software | V42.50 |
10 | Holden diagnostic software | V40.01 | 42 | Porsche diagnostic software | V20.24 |
11 | Brazil | Brazil GM diagnostic software | V13.00 | 43 | Renault diagnostic software | V40.90 |
12 | X431, Brazil Fiat diagnostic software | V10.02 | 44 | Romeo diagnostic software | V18.60 |
13 | China | Brilliance Auto diagnostic software | V30.00 | 45 | Rover diagnostic software | V23.02 |
14 | BYD diagnostic software | V17.20 | 46 | Saab diagnostic software | V22.00 |
15 | Changan vehicle diagnostic software | V15.00 | 47 | Seat diagnostic software | V26.32 |
16 | ChangCheng diagnostic software | V32.00 | 48 | Skoda diagnostic software | V26.32 |
17 | Changhe diagnostic software | V20.00 | 49 | Smart diagnostic software | V17.26 |
18 | Chery diagnostic software | V55.00 | 50 | Transporter&V-Class diagnostic software | V19.51 |
19 | GEELY diagnostic software | V17.00 | 51 | Volkswagen diagnostic software | V26.32 |
20 | Gonow Auto diagnostic software | V12.01 | 52 | Volvo diagnostic software | V41.64 |
21 | HaFei diagnostic software | V25.00 | 53 | India | Mahindra diagnostic software | V11.02 |
22 | JAC car diagnostic software | V18.01 | 54 | MARUTI diagnostic software | V14.02 |
23 | Jiangling diagnostic software | V12.30 | 55 | TATA diagnostic software | V13.02 |
24 | SGMW diagnostic software | V20.10 | 56 | Japan | Daihatsu diagnostic software | V19.92 |
25 | Tianjin FAW diagnostic software | V16.40 | 57 | Honda diagnostic software | V44.00 |
26 | Xiamen Golden diagnostic software | V13.00 | 58 | JPIsuzu diagnostic software | V13.30 |
27 | XinKai Diagnostic software | V11.02 | 59 | Mazda diagnostic software | V38.20 |
28 | ZhongShun diagnostic software | V12.01 | 60 | Mitsubishi diagnostic software | V29.90 |
29 | Zhongxing diagnostic software | V21.00 | 61 | Nissan diagnostic software | V41.51 |
30 | ZOTYE diagnostic software | V17.00 | 62 | Subaru diagnostic software | V21.80 |
31 | Europe | Audi diagnostic software | V26.32 | 63 | Suzuki diagnostic software | V33.02 |
32 | Benz diagnostic software | V45.91 | 64 | Toyota diagnostic software | V47.00 |
FAQ:Q: The accessory between X431 IV and Master can be used universally ?
A:Can not,because the connector of the main USB cable is different.

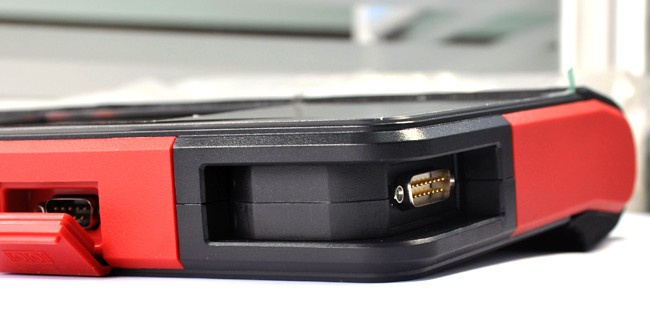

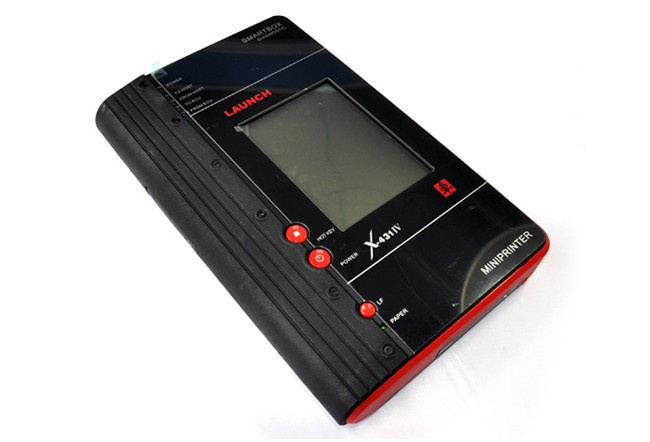

Product Pictures
