Features
Provide variable speed and rotation torque during brake machining is a characteristic of this equipment.
The spindle rotation speed swivels within a certain range, this can eliminate the mechanical resonance and enable the machined surface to be smooth.
The 1.5-HP powerful motor can machine brakes for4-wheel drive automobiles, 1t trucks and even medium duty truck's rear wheels easily.
The micro-round cutter blade can undergo knock, it can be rotated by an angle after it has been worn to elongate its service life.
The brake lathe can be rotated180° To machine the automobile at its another side. Lt is very convenientin use because it is unnecessary to remove the bolts and move the arbor.
Theunique twin-arbor design makes it be adjusted conveniently and the machining with high efficiency.
Semiautomatic operation system.
Automatic safety and shutdown system.
Fast connection system.
Conform to be the demands of use. E48
Specifications h
Maximum Rotor Turning Diameter 14.1 inches(360mm)
Maximum Rotor Thickness 2.00 inches(51mm)
Maximum RotorFriction Surface Area 3.00 inches(76mm)
Feed Distance 4.3 inches (110mm)
Spindle Revolutions: Variable Speed 30-120RPM
Motor Power 1.5HP(1.1kw)@3450rpm

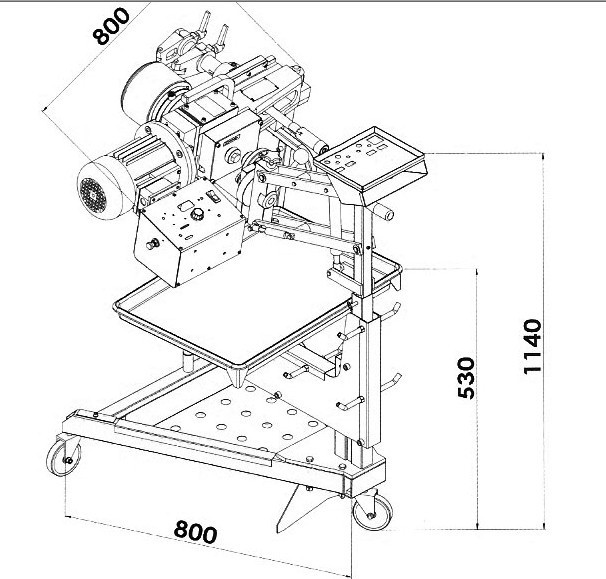

Dimensions 31-in. X18. X15-in.
Net Weight Approximately90lbs. (41kg)(Without trolley)
Electric Power AC220 volts 50/60Hz 15A
1. AA4C have full range of garage equipments. You can buy most items in AA4C related to garage equipments to save your energy to purchase everywhere. 2. AA4C main products: 1)car lifts(1 post, 2 post, 4 post, scissor lift, etc)2)tire changer(car tire changer, truck tire changer, semi-automatic, full-automatic)3)wheel balancer(car wheel balancer, truckwheel balancer, semi-automatic, full-automatic)4)Wheel alignment(commercial CCD Wheel alignment, commercial zigbee wheel alignment, 3D wheel alignment, truck wheel alignment)5)Our featured product rim straightening machine is the most popular in a lot of countries. Other products such as spraybooth, cleaning machine, brake lathe, tire vulcanzier, Nitrogen inflator, A/C handling machine, fuel injector cleaning machine, weldingMachine, hydraulic tools, etc...Pls visit our website AA4cautomotive. COM for more items! 3. Easy way to submit the order! You can submit the order list in our website AA4cautomotive. COM, after we get the list, we will issue the PI to you to save your time! 4. AA4C quality management: To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of ourProducts are 100% inspected before shipment. Our whole manufacturing processes are under a very serious and strict system in our company. 5. AA4C services: To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied. 6. AA4C products warranty: We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the service forever. We are standing by for any of the quality problems. Our service1.1% of order amount free parts for replacement. 2.1 year warranty since conatiner arrive port of destination. 3.2 post lifts, alignment lifts, parking lifts, MID-rise lifts, scissor lifts, and high-rise lifts are warranted for five (5) years on structural components and one (1) year on electric or air / hydraulic power units and cylinders effective since date of arrive port of destination. 4. Any parts which broken for quality reason will be replaced via courier within 1 week. If any question you can find 24 hours 365 days at: Mob: +8618017229377FAQ1. Why should I choose AA4C car lift? There are several reasons you should strongly consider purchasing AA4C Lift: Top raw materials from only the finest plants
Only professional cost-effective equipment
Low prices with high quality revenue producing products
Increase productivity for your customers( Your customers gain more, they will enjoy buying from you. )
The best customer service. Quick reply within 24 hours and more.
Great Warranty2. How safe are your 2 post car lift? Our 2&4 post lifts have been tested and CE certified for safety. They also meet the American
And Australian Standard. 3. Should I keep repair and replacement parts in stock? Yes, most all commonly required repair and replacement parts should always keep in stock. 4. What type of fluid is required for my 2 post car lift? We recommend use of a SAE10 hydraulic fluid that meets an ISO 32 specification, approximately 3 gallons / 12L are required. 5. Are AA4C car lift designed for commercial use? All of our lifts can be used in commercial applications without any problems. 6. Do you offer any custom designs? Yes, AA4C provide OEM/ODM services to top range partners. Produce a superior product for you by your designs.
Shanghai AA4C AUTO Maintenance Equipment Co., Ltd is professional auto maintenance equip ment manufacture since 1995. AA4C means Always and All for(4) Customer. Our factory covers an area of more than 20, 000 squares meters and with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service with a total capital of more than ten millions. For many years our company has been awarded as "Enterprise with High Reputation" "Enterprise with High Credit in Quality " and "China National Grade AAA Enterprise, etc. Besides, Wehave passed ISO9001, authenticated by 2000 International Quality Control System.
Tire changers, Wheel balancers, car lifts are the goods produced by ourself, other goods are supplied by our cooperated factories in order to decrease customers' trouble to buy many goods from many factories. We are mainly dealing AA4C products development, product design as well as OEM/ODM manufa-cturing...Our Product has been shipped to worldwide (Europe, East Europe, North & South America, Africa, Australia, Middle East, Asia as well as different province in China).
Facing the future opportunites and challenges, AA4C will be still adhering to "Seeking higher & being practical" trying to enlarge the intercourses and cooperation with other producers in the fieid both at home and aboad; And exert ourselves to pay back our clients with high-quality products and perfectafter-service. Our goal is: Always and All for(4) Customer.
