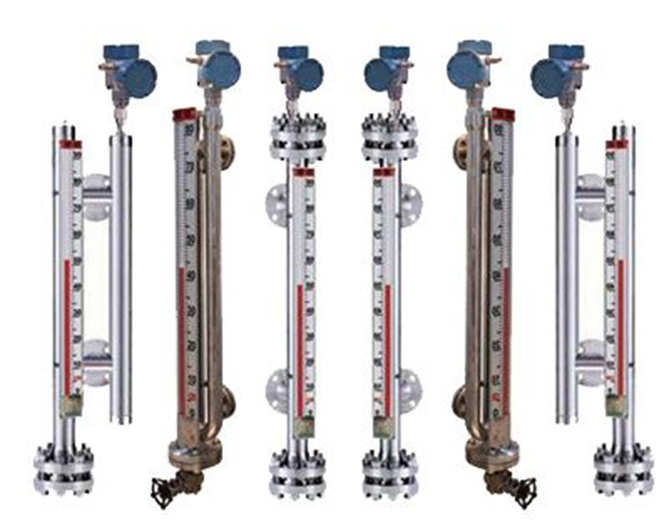

Oil Tank Fuel Gauge-Floater Level Gauge
| Price: |
US $ 330/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product DescriptionFloats UHC Floats are specifically calibrated to match the conditions of the vessel. The density, operating pressure and temperature are taken into account, ensuring that the inferred level is accurate and repeatable.Floats material: SUS304, SUS316, PTFE, PP, and Titanium.Anticorrosive material: such as stainless steel SUS 304 or SUS316L, Teflon PTFE, polypropylene (PP), FRP and advanced tech. application such as X-ray detection, cold-rolling broaching weld, all ensure that the product can be adapted to any demand at site. Additional blow off valve can be added onto the bottom sealing type of the tube when necessary.our application is unique, All U-ideal instruments are custom-made based on your requirements.

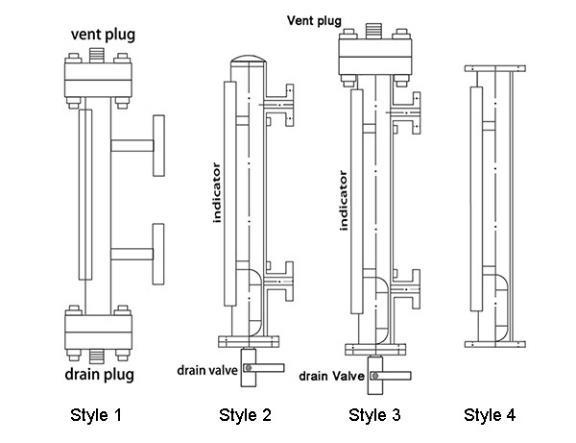

U-ideal mounting stylesNo matter what your application, we can design and manufacture a magnetic level indicator to fit. Above are our standard mounting styles, but if none of these meet your needs we will come up with the best solution based on your requirements.NOTE: Style "4" is for through process piping only. Other connections shown are examples of typical process connections and need to be specified.Typical pictures of magnetic level indicators
Model Selection TableBasic selection of magnetic level indicator please refer to the following steps:| UHC- | C | Side mounted; |
| | D | Top mounted |
| O | Other |
| Signal | Y | Standard transmitter 4~20mA current signal (Resolution: 20mm/10mm/5mm); |
| Y3 | Magneticostrictive transmitter 4~20mA |
| H | Hart; |
| A | Switch and number; |
| L | transmitter with LCD |
| | No signal output |
| Indicator type | O | Ordinary pannel |
| S | Sealed bargraph |
| L | Red/Green flaps with LED lamp |
| Structure | S | Steam tracing |
| E | Electric heating |
| F | Defrost |
| Valve | D | Drain valve or drain plug |
| DV | Drain valve and Vent valve or plug |
| N | No valve |
| Working temperature | A | Ambient temperature (0~40ºC) |
| M | -20~200ºC |
| H | High temperature (<400ºC) |
| L | If easy frozen |
| Material | SS304 | 0Cr18Ni9 |
| SS316L | 022Cr17Ni12Mo2 |
| SS321 | 0Cr18Ni10Ti |
| PP | PP (Polypropylene),PVC,PVDF |
| PTFE | stainless steel lined with PTFE |
| Explosion-proof | S | Safety environment |
| E | Explostion-proof ExdII BT4 |
| I | intrinsic safety ExibII CT4 |
| Measure range | Unit: mm |
| Fluid density | g/cm3 |
| working pressure | Unit: MPa |
| Flange size, rate and standard | ANSI | DIN | JIS |
| Example: UHC-C-YA-O-D-M-SS304-S-500-0.8-1-DIN DN25 PN16 |
Remark: Manufactured customized is available for this product. The level indictator can be made to Sections if gauge is longer than 3m to make suitable for delivery.
| Prod Model: |
UVZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
Liquid Level Transmitter |
| Structure: |
All in One, All in One~ |
| Range: |
0-10m |
| Principle: |
Magnetic Sensors |
| Ex-Proof: |
Intrinsic Safety/ Explosion-Proof |
| Anticorrosive Material: |
Stainless Steel Ss 304 SS316L, Teflon PTFE,PP,FRP |
| Floats Material: |
SUS304, SUS316, PTFE, PP, and Titanium |
