Specification

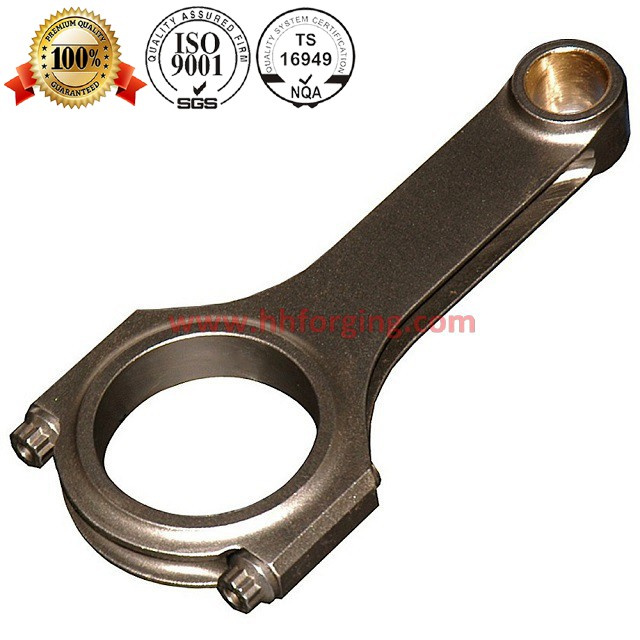

Item Name: Racing Connecting Rod (forged steel con rod)
Application for: Porsche, Chevy, Volvo, Opel, BMW, VW, Toyota, Nissan, Honda, Mitsubishi, Suzuki, Ford, Peugeot and etc.
Material: Forged steel/40Cr/20Cr/aluminum
Production capacity: 10,000 Set/month
Warranty: 2 years
Delivery Day: about 30 days
Beam Style: I beam/H beam
|
| No. | Car model | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
| 14 | Toyota | 2JZ | 6 | 142.00 | 55 | 22 | 26 | 26 | 3/8" |
| 14b | 2JZ | 6 | 142.00 | 55 | 22.005 | 26 | 22 | 3/8" |
| 15 | 4AG | 4 | 122.00 | 45 | 20 | 21.8 | 21.8 | 5/16" |
| 15b | 134 | 4 | 134.00 | 45 | 18 | 21.8 | 21.8 | 5/16" |
| 15B | 4AGE | 4 | 132.00 | 45 | 18 | 21.5 | 19 | 5/16" |
| 15H | 4AGE | 4 | 127.00 | 45 | 18 | 21.5 | 25 | 5/16" |
| 15c | 5K | 4 | 131.00 | 45 | 18 | 24.7 | 24.7 | 5/16" |
| 15d |
| 4 | 127.00 | 45 | 18 | 21.5 | 25 | 5/16" |
| 16 | RDT-4A(4AG) | 4 | 122 | 45 | 20 | 21.8 | 22 | 5/16" |
| 17 | 3SG | 4 | 138.00 | 51 | 22.02 | 26.75 | 23.5 | 3/8" |
| 17e | 140.8 | 4 | 140.80 | 51 | 22.02 | 26.7 | 23.5 | 3/8" |
| 17b | 3SG | 4 | 138.00 | 51 | 22 | 24.032 | 26.92 | 3/8" |
| 17f | 3sg | 4 | 138.00 | 51 | 22.02 | 26 | 23.5 | 3/8" |
| 17h | 3SG | 4 | 144.00 | 51 | 22.02 | 26.75 | 23.5 | 3/8" |
| 17k |
| 4 | 137.50 | 55 | 22 | 26.75 | 26.75 | 3/8" |
| 17g | 3SG | 4 | 146.00 | 51 | 22.02 | 26.75 | 23.5 | 3/8" |
| 17c | 3SG-I | 4 | 138.00 | 51 | 22 | 26.75 | 23.5 | 3/8" |
| 88 | CRT-1(4E-FTE) | 4 | 118 | 43 | 18 | 20.8 | 20.78 | 5/16" |
| 88b | Starbet | 4 | 118 | 43 | 18 | 20.8 | 20.8 | 3/8" |
| 133 | 4AGD | 4 | 122 | 43 | 20 | 21.8 | 21.8 | 5/16" |
| 134 | 4AGE | 4 | 122 | 45.01 | 20.008 | 21.8 | 21.8 | 5/16" |
| 135 | 4AGC | 4 | 122 | 45.01 | 20.008 | 21.8 | 21.8 | 5/16" |
| 134c | CR-TS-127.3 | 4 | 127.3 | 45.01 | 20.01 | 21.8 | 21.8 | 3/8" |
| 134D | 4AGE | 4 | 144 | 45 | 20 | 21.85 | 21.85 | 3/8" |
| 133b |
| 4 | 122 | 43 | 20 | 21.8 | 21.8 | 3/8" |
| 134B | 4AGE | 4 | 122 | 45 | 20 | 21.8 | 21.8 | 3/8" |
| 134e | 4AGE | 4 | 135.5 | 45 | 20.005 | 21.8 | 21.8 | 3/8" |
| 134f | 4AGE | 4 | 132 | 45 | 18 | 21.5 | 21.5 | 3/8" |
| 134g |
| 4 | 125 | 45.01 | 20.01 | 21.8 | 21.8 | 3/8" |
| 134h |
| 4 | 127 | 45.01 | 20.01 | 21.8 | 21.8 | 3/8" |
| 138 | 2TC/3TC 4.850" | 4 | 123.2 | 48 | 21.97 | 26.8 | 26.92 | 5/16" |
| 139 | Supra 7MGTE 152 | 6 | 152 | 55 | 22.02 | 24.8 | 24.8 | 3/8" |
| 139b | Supra | 6 | 152 | 51 | 22.02 | 24.8 | 24.8 | 3/8" |
| 139c | 7MGTE | 6 | 152 | 55 | 22.02 | 24.8 | 24.8 | 3/8" |
| 140 | 2AZ-FE 5.886" | 4 | 149.5 | 51.001 | 22 | 19.81 | 19.81 | 3/8" |
| 229a | CC154(4.5L) | 6 | 154 | 60.6 | 26 | 27.77 | 27.77 | 7/16" |
| 289 | 4AG-2 | 4 | 122 | 45 | 20.005 | 21.8 | 21.8 | 5/16" |
| 289A | 4AG-2 | 4 | 122 | 45 | 20 | 21.8 | 21.8 | 5/16" |
| 290 | 4AG-3 | 4 | 122 | 45 | 20.005 | 21.8 | 21.8 | 3/8" |
| 291 | 2TG | 4 | 123 | 51 | 22 | 26.8 | 20.8 | 5/16" |
| 291b |
| 4 | 130.5 | 46 | 18 | 26.8 | 20.8 | 5/16" |
| 292 | 5E | 4 | 130.5 | 46 | 18.005 | 20.8 | 20.8 | 3/8" |
| 292d |
| 4 | 134.5 | 46 | 19 | 20.8 | 20.8 | 5/16" |
| 292e | 5E | 4 | 130.5 | 46 | 18.005 | 20.8 | 20.8 | 3/8" |
| 303 | 3TC | 4 | 123 | 51.005 | 21 | 26.8 | 24 | 5/16" |
| 303b |
| 4 | 122.8 | 51 | 22 | 26.72 | 24 | 3/8" |
| 351 | 4E | 4 | 118 | 43 | 18 | 20.8 | 20.8 | 5/16" |
| 396 | CC146.7 | 4 | 146.7 | 47 | 20 | 19.8 | 19.8 | 5/16" |
| 396c | Toyota-134.5 | 4 | 134.5 | 47 | 20.01 | 19.8 | 19.8 | 3/8" |
| 400 | 1jz-4tg | 4 | 125.2 | 55 | 22.01 | 25.9 | 25.9 | 3/8" |
| 458 | CELICA 2.0L | 4 | 122.5 | 51.6 | 21 | 23.8 | 24 | 3/8" |
| 512 | 140.9 | 4 | 140.9 | 43 | 18 | 17.92 | 17.92 | 5/16" |
| 522 | 4AGD | 4 | 135 | 43 | 16 | 21.8 | 18 | 5/16" |
| 528 | 3TG | 4 | 122.9 | 51 | 22.01 | 26.7 | 26.7 | 3/8" |
Nanjing Honghe precision forging Co., Ltd was established in 2004 which is located in famous historical city Nanjing Jiangsu province, only need less than 2 hours to Shanghai by high-speed rail.
The company has a registered capital of $740, 000 and specialized in manufacturing, producing, designing and researching precision forging parts for electric power, automobile, motorcycle, railway, shipping, mining, mechanical and so on. It covers more than 21, 000 square meters, 6000 square meters standard workshop.
Having 5 sets of forging production lines mainly include300T, 400T, 630T, 1600T friction presses, also 1 sets of free forging lines include some air hammers.
We had been passed ISO9001: 2008 and ISO/TS16949 quality management system, CAD/CAM system was implemented for design and fabrication of forging dies. We utilize effective inspection equipments to inspect every operation and detail from the raw material to the finished products, hence our quality is secured and reliable.
The products have been exported to Asian, Europe, South America, Africa etc, achieving client's prasise. Our clients contain Emerson, Ford Motor, Samsung, Energy China etc.
Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
