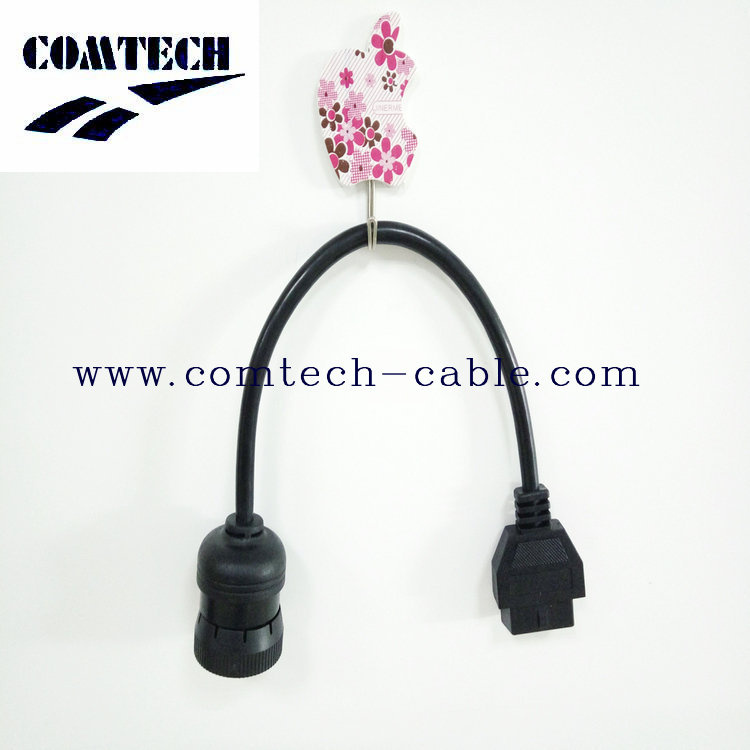

OBD2 16p Female to J1939 9pmale Diagnosis of Line

Name: OBD2 16p Female to J1939 9pmale Diagnosis of Line
Brand: ibuyautoparts.com
SKU: 789254775
Availability: InStock
Rating: 4.3 (56 reviews)

Price:	US $ 5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

ELM327 used pin:
2: the SAE - J1850 PWM and SAE - 1850 VPW bus (+)
4. Body earthing
5. The signal ground
6. CAN high (ISO 15765-4 and SAE - J2284)
7. ISO 9141-2 and ISO 9141-4 K line bus
10. SAE - J1850 bus PWM agreement (-)
14. CAN low (ISO 15765-4 and SAE - J2284)
15. ISO 9141-2 and ISO 14230-4 bus L line
16. The battery voltage
All the pin definition:
1. The Manufacturer discretion. GM: J2411 GMLAN/SWC/Single - Wire CAN.
2. The Bus positive Line of SAE - VPW J1850 PWM and SAE - 1850
3. Ford DCL (+), Argentina, Brazil (pre OBD II) 1997-2000, USA,
4. The Chassis ground
5. Signal ground
6. CAN high (ISO 15765-4 and SAE - J2284)
7. K line of ISO 9141-2 and ISO 14230-4
8. -
9. -
The Bus was negative Line of SAE - J1850 PWM only (not the SAE - 1850 VPW)
Europe, etc. Chrysler CCD Bus (+)
11. Ford DCL (-), Argentina, Brazil (pre OBD II) 1997-2000, USA, Europe, etc., Chrysler CCD Bus (-)
12. -
13.
14. CAN low (ISO 15765-4 and SAE - J2284)
15. L line of ISO 9141-2 and ISO 14230-4
16. 'voltage

Prod Model:	zxk-005
