| Prod Model: |
30316 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Stock |
| Type: |
Wheel Hub Bearing |
| Material: |
Chrome Steel |
| Tolerance: |
P5 |
| Clearance: |
C3 |
| Brand: |
Ikc SKF NSK NTN Koyo NACHI Timken |
Product Description

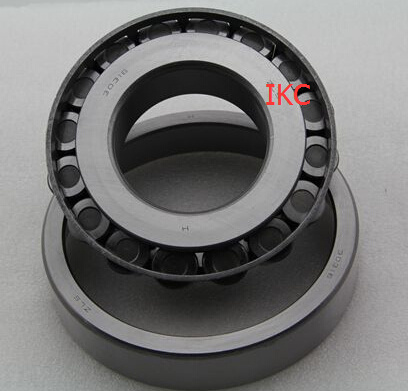

The Description of Tapered Roller Bearing
Tapered roller bearing main bear with radial primarily, the axial union load. Bearing outer ring rolling bearing capacity depends on the way Angle, the greater the carrying capacity of the larger Angle. This type of bearings is bearing separation, according to the bearing of the roller column number into a single, double row and four row circular cone roller bearings. The single row circular cone roller bearing clearance to users in the installation to adjust; Double row and four row circular cone roller bearings clearance has set up a file in the products based on user requirements given, don't need to adjust by the user.
We supply SKF TIMKEN NSK KOYO NTN China BRAND TAPER ROLLER BEARINGS WITH CHEAP PRICE.
30202 30308 31316 32204 32926 32303 32005
30203 30309 31317 32205 32928 32304 32006
30204 30310 31318 32206 32930 32305 32007
30205 30311 31319 32207 32932 32306 32008
30206 30312 31320 32208 32934 32307 32009
30207 30313 31321 32209 32936 32308 32010
30208 30313 31322 32210 32938 32309 32011
30209 30314 31324 32211 32940 32310 32012
30210 30314 31326 32212 32944 32311 32013
30211 30315 31328 32213 32948 32311 32014
30212 30316 31330 32214 32952 32312 32015
30213 30317 31332 32215 32956 32313 32016
30214 30318 31336 32022 32960 32314 32017
30215 30319 32216 32024 32964 32315 32018
30216 30320 32217 32026 32968 32316 32019
30217 30321 32218 32028 32972 32317 32020
30218 30322 32219 32030 33005 32318 32021
30219 30324 32220 32032 33006 32319 31038X2
30220 30326 32221 32034 33007 32320 31064X2
30221 30328 32222 32036 33008 32321 31068X2
30222 30330 32224 32038 33009 32322 31072X2
30224 30332 32226 32040 33010 32324 31080X2
30226 30334 32228 32044 33011 32326 31084X2
30228 30336 32230 32048 33012 32328 31088X2
30230 30338 32232 32052 33013 32330 18590/18520
30232 30340 32234 32056 33014 32332 25590/25523
30234 30344 32236 32060 33015 32334 25877/25821
30236 30348 32238 32064 33016 32336 31594/31520
30238 30352 32240 32068 33017 32340 33281/33462
30240 31305 32244 32072 33018 30613 37425/37625
30244 31306 32248 32904 33019 30614 42381/42584
30248 31307 32252 32905 33020 33205 44649/44610
30252 31308 32256 32906 33021 33206 47686/47620
30256 31309 32260 32907 33022 33207 48548/48510
30302 31310 33895/22 32908 33024 33208 65237/65500B
30303 31311 39581/20 32909 33026 33209 67048/67010
30304 31312 559/552 32910 33028 33210 78349/78310A
30305 31313 K598/593 32911 33030 33211 84548/84510
30306 31314 2780/2720 32912 594/592A 33212 86649/86610
30307 31315 3585/3525 32913 580/572 33213 88649/88610
30311 30616 15106/250X 32914 28680/22 33214 603049/603011
30312 30621 33287/462 32915 29586/20 33215 716649/711610
30313 30623 3982/3920 32916 28584/20 33216 807045/807012
30628 55200C/437 32917 29590/20 33217 807046/807010
30636 55206C/437 32918 JL69349/10 33218 905843/905810
362A 29590 U399/360L 32919 67790/67720 33219 LM102949
382A 33275 U399/365L 32920 48385/320 33220 LM104949
382AS 39581 U497/460L 32921 67048/10 33221 JLM104948
394A L44643 K497/492A 32922 11949/10 33222 M201047
414 L44649 K498/492A 32924 12749/10 33108 JH211749
| TAPERED ROLLER BEARING |
| Model | Dimensions (mm) |
| Bearing No. | Old No. | d | D | T | Kg |
| 30303 | 7303E | 17 | 47 | 15.25 | 0.129 |
| 30304 | 7304E | 20 | 52 | 16.25 | 0.165 |
| 30305 | 7305E | 25 | 62 | 18.25 | 0.263 |
| 30306 | 7306E | 30 | 72 | 20.75 | 0.387 |
| 30307 | 7307E | 35 | 80 | 22.75 | 0.515 |
| 30308 | 7308E | 40 | 90 | 25.25 | 0.747 |
| 30309 | 7309E | 45 | 100 | 27.25 | 0.984 |
| 30310 | 7310E | 50 | 110 | 29.25 | 1.28 |
| 30311 | 7311E | 55 | 120 | 31.5 | 1.63 |
| 30312 | 7312E | 60 | 130 | 33.5 | 1.99 |
| 30313 | 7313E | 65 | 140 | 36 | 2.44 |
| 30314 | 7314E | 70 | 150 | 38 | 2.98 |
| 30315 | 7315E | 75 | 160 | 40 | 3.57 |
| 30316 | 7316E | 80 | 170 | 42.5 | 4.27 |
| 30317 | 7317E | 85 | 180 | 44.5 | 4.96 |
| 30318 | 7318E | 90 | 190 | 46.5 | 5.8 |
| 30319 | 7319E | 95 | 200 | 49.5 | 7.2 |
| 30320 | 7320E | 100 | 215 | 51.5 | 8.27 |
| 30321 | 7321E | 105 | 225 | 53.5 | 10.5 |
| 30322 | 7322E | 110 | 240 | 54.5 | 11.4 |
| 30324 | 7324E | 120 | 260 | 59.5 | 13.8 |
| 30326 | 7326E | 130 | 280 | 63.75 | 17.4 |
| 30328 | 7328E | 140 | 300 | 67.75 | 21.2 |
| 30330 | 7330E | 150 | 320 | 72 | 25.5 |
| 30352 | 7352E | 260 | 540 | 114 | 108 |
