Nexlink NL101 Battery Monitor & OBD/EOBD & CAN Diagnostic Tool

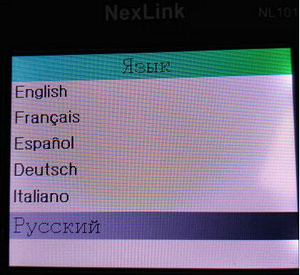

1. NL101 Support Languages:Russian,English, French, German, Spanish, Italian




2. NL100 Supported Car Makers:

Japanese Cars: Works on After 2003 and newer  OBDII/OBD2/OBD/CAN-BUS Vehicles

American Cars: Works on 1996 and newer OBDII/OBD2/OBD/CAN-BUS Vehicles

(Support all OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000)

3.Special Functions:

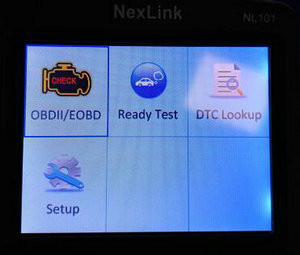

• OBD functions: O2 sensor test, DTC lookup, freeze frame, I/M readiness status; Check Engine Light (MIL), turns off MIL by erasing the trouble codes and Monitors reset; Read PCM live data stream, with graphic data display

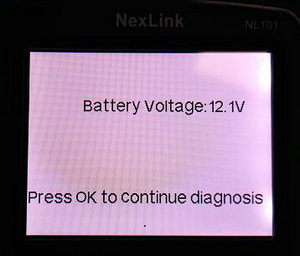

  BATTERY TEST: Analyze battery status, which provides a reliable analysis for battery maintenance . It notifies the user to replace battery in advance while it's getting aged.

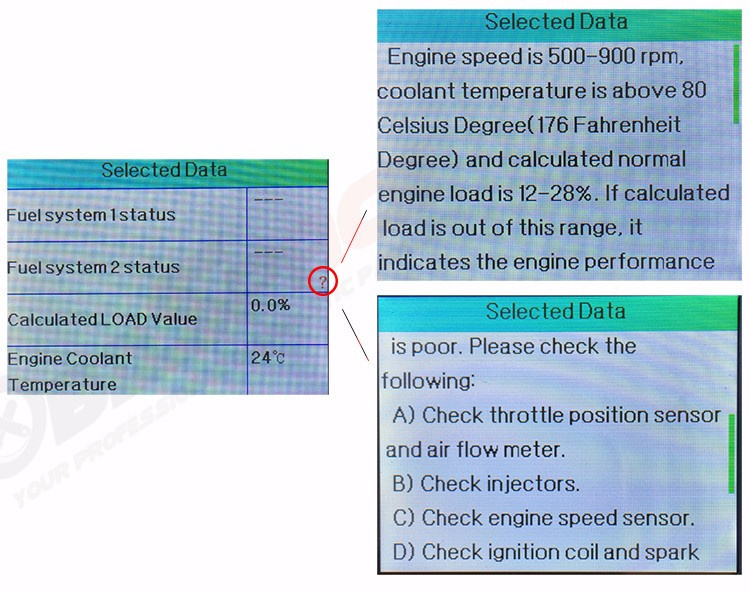

  Featuring the unique patented "?" Key, If there is a question mark "?" show on the screen, please press "?" key button directly, you will get the explanation, no need refer the manual




  4.Brief Description

  Hand-held OBD2 tool---NL101 make it a easy way to saves time and money on repairs - find out what's wrong before repair
  NL101 offers a solution for someone who worried about car maintenance.
  The easy-to-use device, which apply to drivers to monitor their vehicles' health.



  5.Features And Functions:



  1, Work on cars, mini vans and light duty vehicles (OBDII & CAN) from 1996 on and latest – European, American and Asian

  2, Uniquely featured with battery power monitoring function

  3, Support all OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000

  4, Troubleshooting tips guide technicians to the root of problems faster, saving diagnosis and repair time

  5, Read and erase generic codes (P0, P2, P3 and U0), manufacturer specific codes (P1, P3 and U1), and pending codes

  6, Easily determine the cause of the Check Engine Light (MIL), and turn off Check Engine Light (MIL) by erasing the trouble codes and Monitors reset

  7, Display DTC definition, freeze frame data, monitor and I/M readiness status (emissions), and vehicle information (VIN, CIN and CVN)

  8, Read, store and playback live O2 sensor test data

  9, Read PCM live data stream, with graphic data display

  10, Enhanced OBDII Mode 6

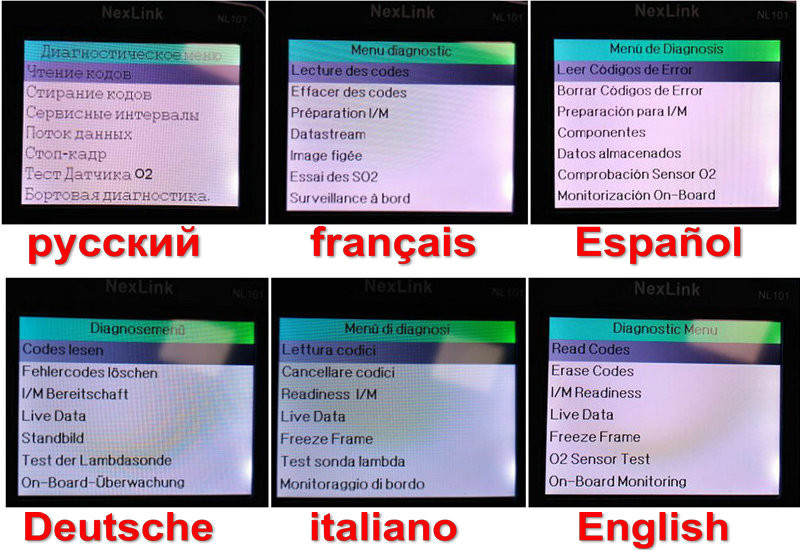

  11, Multilingual menu and DTC definitions – English, Spanish and French, German, Italian, etc.

  12, Software upgrade via internet

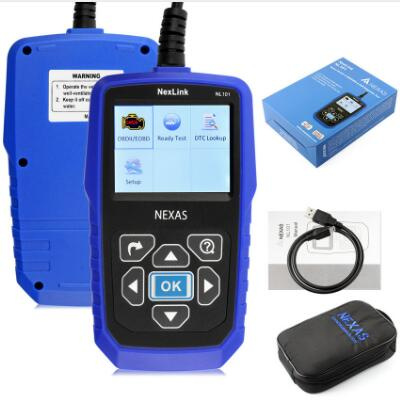

  7.Packing List:



  1X NL101 Main Unit

  1X USB Cable

  1X User Manual

  1X Packbag
