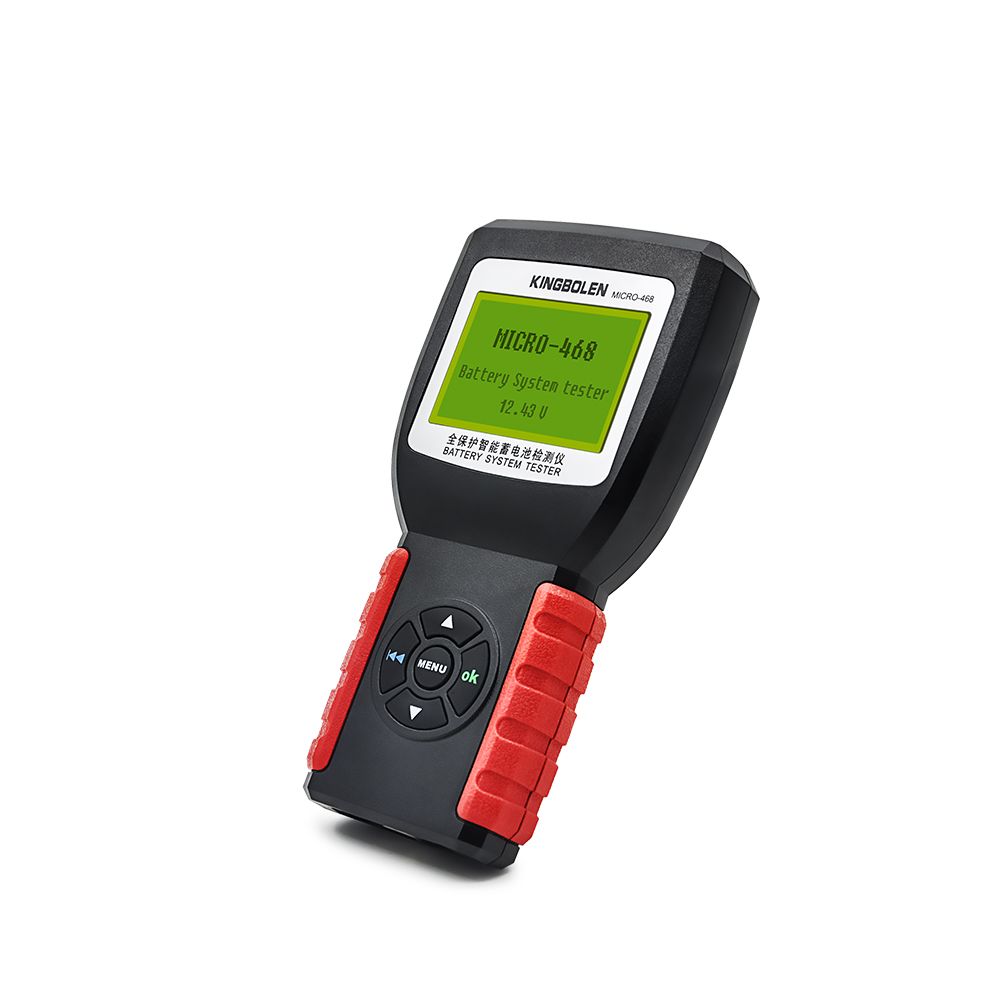

New Released Car Battery System Tester Micro-468 for 12V & 24V System Multi-Language Micro 468 for Soh Soc CCA IR
| Price: |
US $ 84-89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |

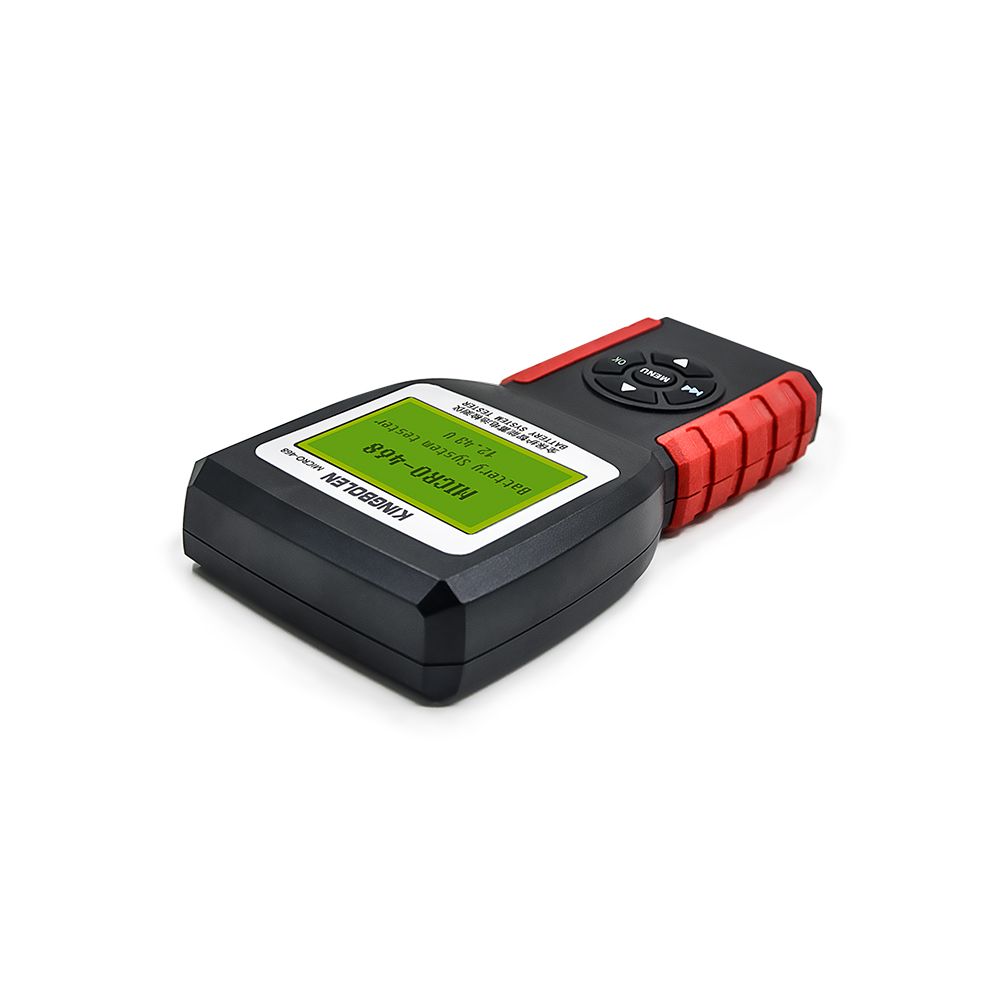

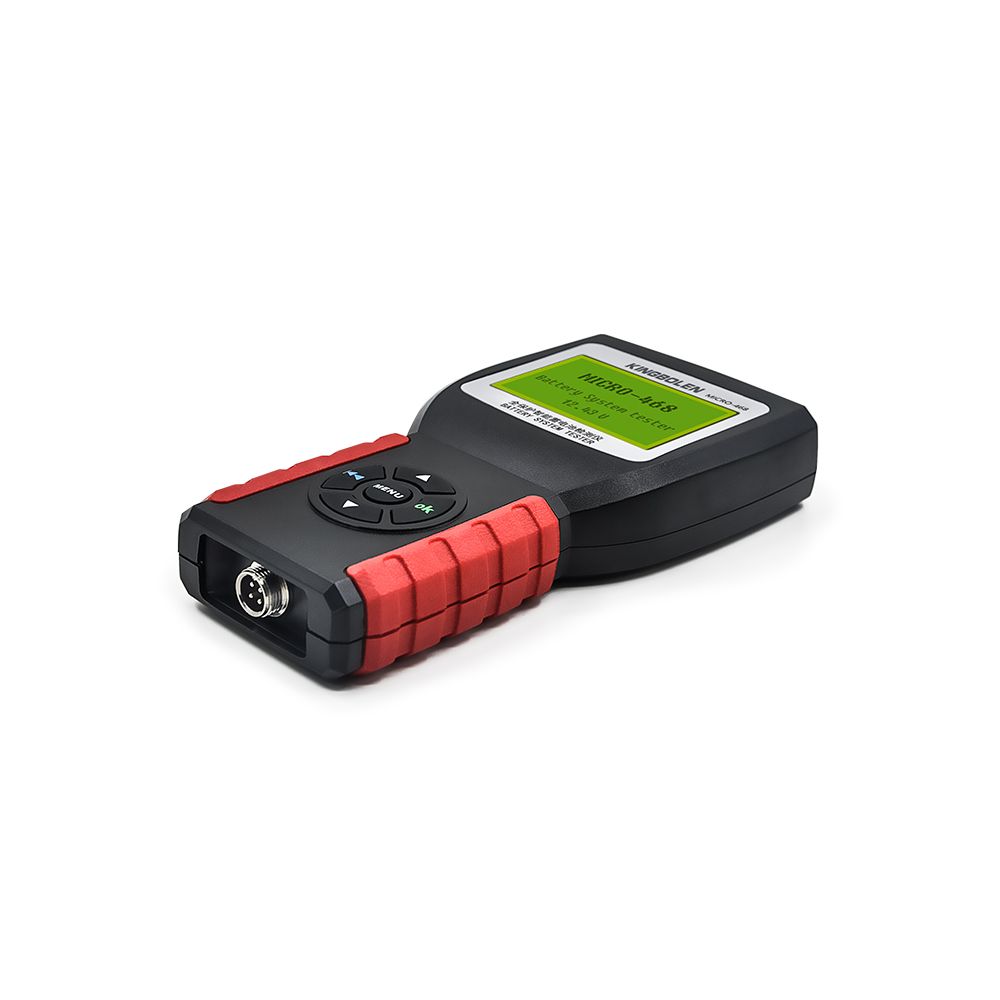

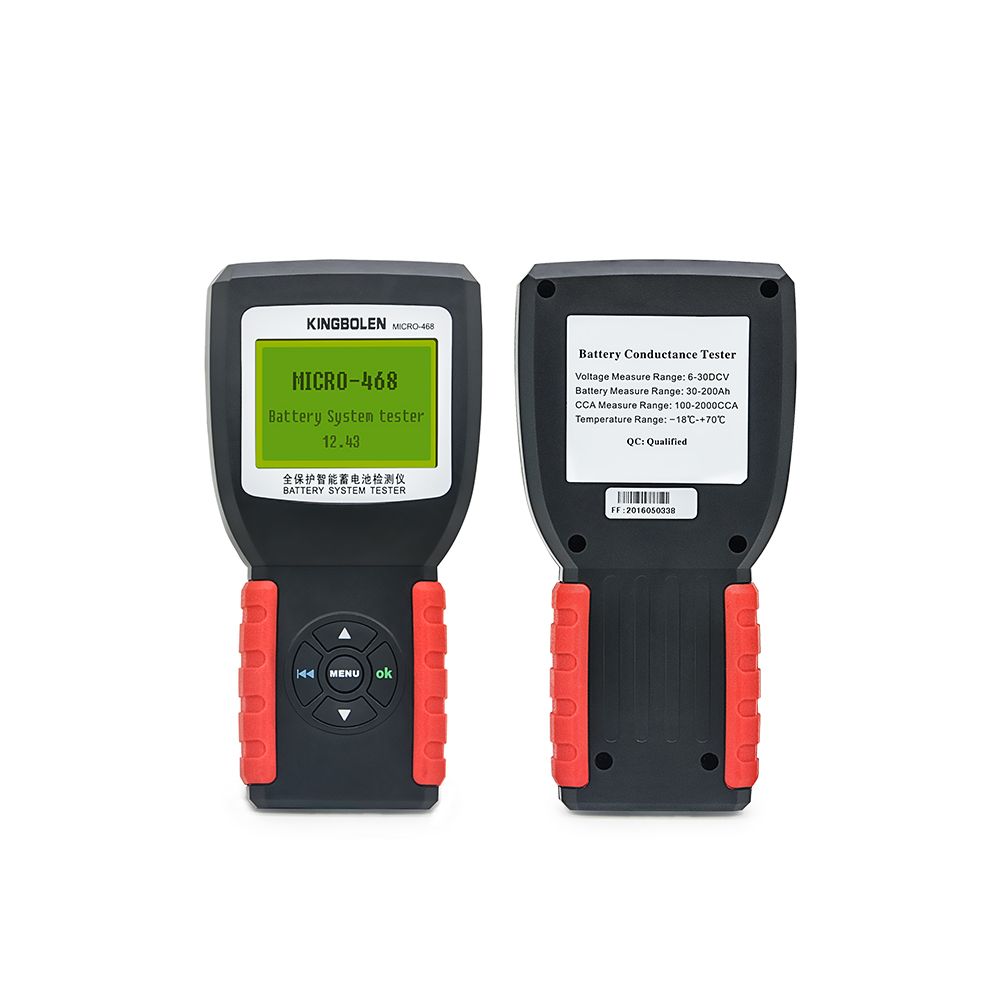

Battery System Tester MICRO-468
Lancol Battery Conductance Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.
Advantage:
1.Support 12v & 24v system ,Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
2.Directly detect bad cell battery.
3.Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.
4.Directly test the battery with loss of electricity, no need to full charge before testing.
5.Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
6.Support multi-languages, customer can select different language package, which includes: Chinese Simple, Chinese Traditional, English, Japanese, Russian, Spanish, French, Italian, German, etc. Other languages can also be customized according to user's need.
Product Function:
Battery test is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery.It notifies the user to replace battery in advance when the battery is getting aged.
Cranking test is mainly to test and analyze the starting motor. Through testing the actual required cranking current and cranking voltage of the starting motor, it can find out whether the starting motor works fine.There are several reasons why the starting motor is abnormal: lubricating system fault causing the starting loaded torque increasing or rotor friction of the starting motor causing the increasing friction of the starting motor itself.
Charging test is to check and analyze the charging system, including generator, rectifier, rectifier diode, etc., thus to find out whether the output voltage of the generator is normal, the rectifier diode works fine and the charging current is normal.Suppose one of the above mentioned parts is not in normal situation, it will lead to over charge or incomplete charge of the battery, thus the battery will be quickly damaged and also greatly shorten the using life of other loaded electrical appliance.
Additional Function :
1.Set language
2.Set voltmeter
3.Screen light adjustment
Specifications:
1) Voltage Measure Range:6-30DCV.
2) Temperature Measure Range:-18°C - +70°C.
3) Cable Length: 120cm (3M optional)
4) Housing Materieal: Acid-resistant ABS plasticd

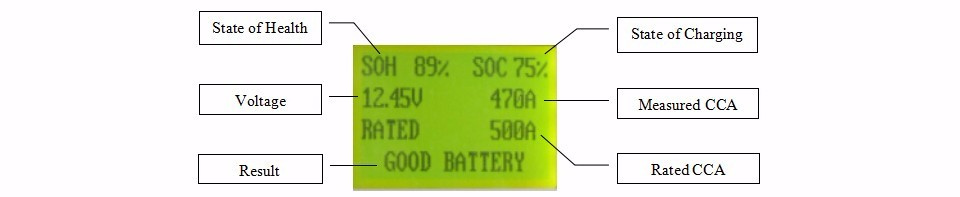

Testing Result Description:

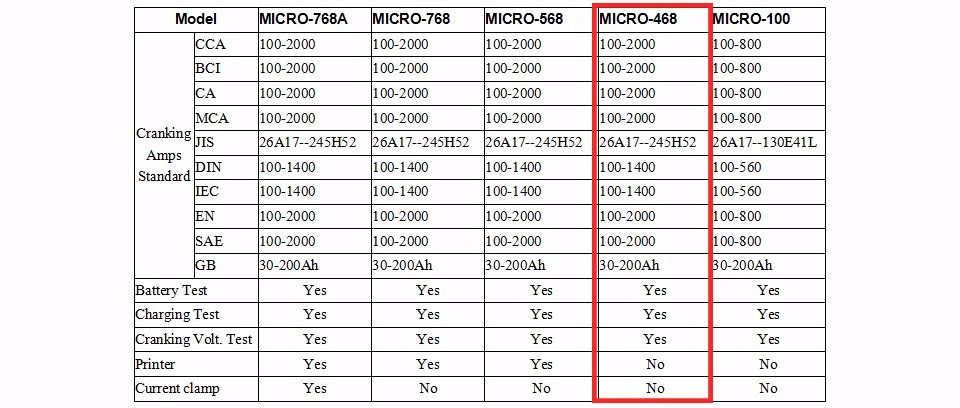

Battery Conductance Tester Model Difference
Packing List
* 1X MICRO-468
* 1X Connecting Cable
* 1X User Manual
| Prod Model: |
KZ02 |
| Product Name: |
Micro-468 |
| Function: |
Battery Tester |
| Test Battery: |
Dedicated Kelvin Test Clip |
| Function 1: |
Removable Replacement Test Line |
| Function 2: |
Automatic Temperature Compensation Function |
| Warranty: |
One Year Warranty |
| Delivery Time: |
Within 1 Working Days After Payment |
| Technical Support: |
for Free |
| Special Features: |
Battery Tester |
| Languages: |
Muti-Languages |
| Testing Equipment Type: |
Battery Tester |
