New Design Mini Spray Painting Cabinet

Name: New Design Mini Spray Painting Cabinet
Brand: ibuyautoparts.com
SKU: 711180432
Availability: InStock
Rating: 4.9 (52 reviews)

Price:	US $ 4900-12000/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

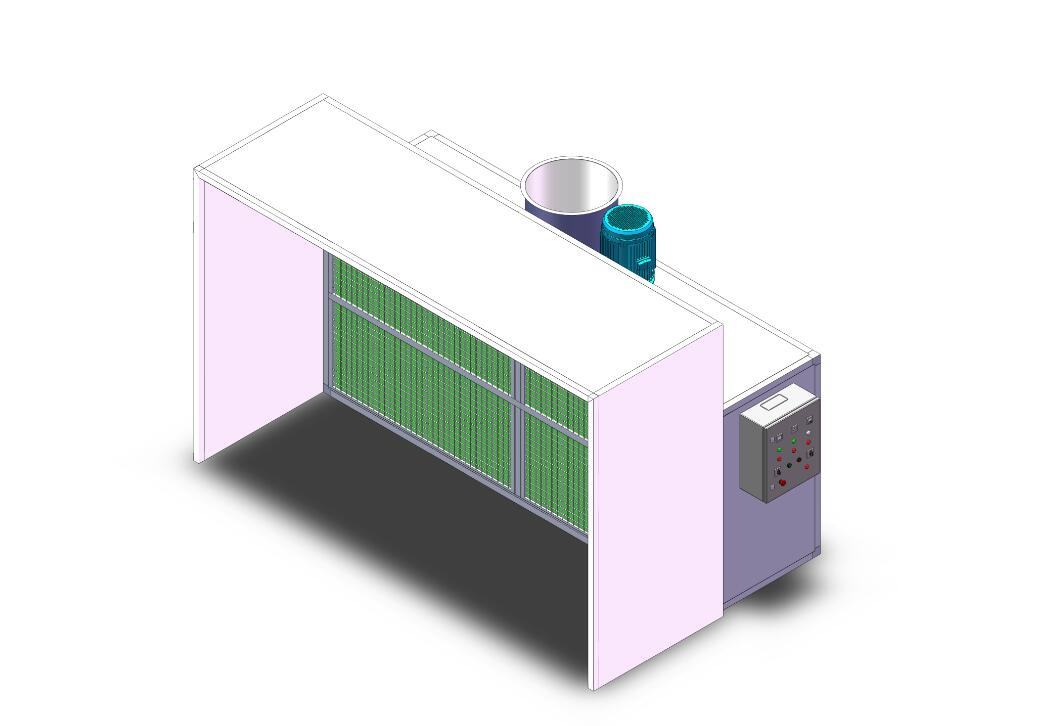

New Design Mini Spray Painting Cabinet
1. CE approved
2. German Technology
3. Spray booth professional manufacturer
4. Factory price, energy saving
5. High quality, best sell service, timely delivery
6. We can meet at customer's special requirement

Product:open faced spray booth(1.2×3.6×2.4M)
Cabin size
Internal size	1200×3600×2400mm(L×W×H)
External size	2150×3700×2460mm(L×W×H)
Basement
Basement design type	Without basement, rear air collection box for air extraction
Cabin
Door frame structure	50X50X1.2 square tube welded forming
Wall panel
Wall panel	50mm EPS panel
Material of wrap edge	1.2mm galvanized steel plate bend forming
Side lighting	(lighting box open from outside)
QTY and power	2 units, each 2×36W, total 144W
Arrangement type	On two sides
Lighting description	IP55,CE certified electronic ballast, OSRAM brand light
Total illumination	>700Lux
Filtration system
Exhaust filter	Fiber glass paint-stop filter
Exhaust system
Exhaust fan type	axial flow fan
Exhaust fan power and motor description	T40No.6C/1.5KW-4,1.5KW,1450 rpm, 415 V,50 Hz
Exhaust fan parameter	10000m3/h ,200pa
Equipment empty loaded air speed	+/- 0.28m/ when empty loaded
Noise	<86 dB
Control system
Performance standard	Direct start
Function	Painting, emergency stop switch, failure indication
Special item
Australian standard
	A travel switch is installed above the exhaust fan. Throttle pushing gravity work when the exhaust fan is turned on, the limit switch is triggered, exhaust fan normal operation. Work state reservation if the damper open is not in place, it will force other components to stop working, and display failures. Add differential pressure gauge switch at the front end of the fan ,to detect whether the gas supply is normal when the spray paint or other condition.

Prod Model:	custom design
Management Certification:	ISO9001: 2000
Technology:	German Technology
Warranty Time:	2 Years
Service Time:	Lifelong Maintenance
Usage:	Spraying
Configuration Level:	Economic Type Spray Booth
Color:	White
Lighting System:	Osram Lamp with Tempered Glass
Popular In:	Asia, Africa
Certification:	CE
Airflow Direction:	Cross-flow Type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Spray Booth
Brand:	Btd

BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.

BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.

BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.

BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
