Prod Model: |
N200 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Battery Type: |
Super Power Car Battery 12V200ah Power Starting Ba |
Color: |
White Case and Black Cover |
Sealed Type: |
Dry Charge |
Usage: |
Truck/Marine/Boat/Scooters |
Warranty: |
13 Months From B/L Date |
Material: |
Lead-Acid Starter Battery |
Battery Case: |
ABS |
Good Performance: |
Low Self-Discharge |
Type: |
Lead-acid Battery |
Rated Voltage: |
12V |
Charging Type: |
Constant Current |
Wet Shelf Life: |
2~3Year |
Discharging Type: |
Constant Resistance |
Electrolyte: |
Acid Battery |
Certification: |
SGS, Cnas |
Charging Voltage: |
12V |
Working Voltage: |
12V |
Brand: |
Koyama |
Product Description

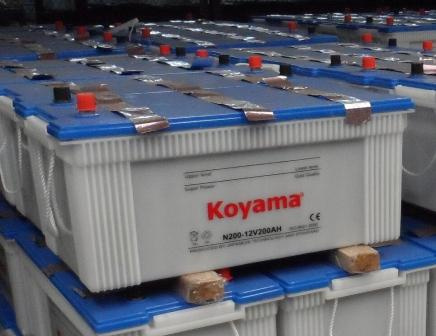

Koyama® 12V200AH Auto battery/ Car battery/ Truck battery/ Automotive battery/ Maintenance free battery/ Smf battery/ Sealed mf battery/ Lead acid battery/ Starting battery/ Rechargeable starting battery/ Dry charged car battery/ Automotive battery/ Automobile battery/ Auto battery/ DIN, JIS standard battery
JIS standard Africa battery
1. Product Description:
Standard | JIS Standard |
Sort | Dry charge automotive batteries |
Model | N200 |
Voltage | 12V |
Rated Capacity ( 20HR ) | 200ah |
Dimension(mm) | 506*265*215*235 |
CCA( -18º C,) | 1380 |
Approx Wt. ( Kgs ) | 25.5 |
Terminal type | A |
Layout | 3/4 |
OEM service | OK |
2.Charactistics of dry charge car batteries:
Packing: Newest Strong PP Plastic;
Surperior Starting Power; Higher CCA starting performance than other suppliers;
Material: Lead-acid Dry Storage Battery; Self-producing excellent quality internal material of batteries with lower cost;
Minimizing waters loss;
Extended battery's life;
Stable performance in different temperature working environment;
provide greater vibration resistance;
Strict Production Procedures Control and Responsible staff, Ensuring our product's quality much more stable;
Stronger resistance to corrode, more effective charging&discharging ;
3. Business terms:
Warranty life: 13 months or 24months
Payment term: 30% T/T upon oder confirmation, 70% T/T before shipment
Delivery time: 20-30 days after oder confirmation
Brand name: KOYAMA OEM is accepted
4.Advantages:
Long-Lasting Service Life
Reliable Starting Power
Excellent ELECTRICAL Performance
Unique Design For Safety
Incredible cranking power, capacity and vibrations resistance
5.Quality Warranty:
The quality guarantee is 13 months/ 24months from our manufacture date or B/L date. We will replace any defective battery by new one at our cost if there is any.
Application scope:
Starting batteries of auto/automobile, cars, trucks, motorcycles, ships, marine boats and other vehicles. 1. For passenger car Koyama standard line for passenger car fits most of Japanese, European and American vehicles on the road in the world, today 2. For van & SUV Koyama standard line for light -truck, van& SUV is designed to offer incredible cranking power, capacity and vibration resistance feature 3. For heavy-duty truck Koyama standard line for heavy duty truck is resistance to vibration and offers outstanding performance
6.KOYAMA AUTOMOTIVE BATTERIES
7.Package and shipment
8. Battery models of all ranges:
New TypeOld TypeVoltageCapactiyR.C.C.C.AOverall Dimensions (mm)LayoutTerminal
TypeBattery
Photos(V)(Ah)(Min)(A) -18ºCLWHTH
|
|
26A19R | 12N24-4 | 12 | 24 | 34 | 190 | 184 | 125 | 160 | 170 | 1 | Flange | |
26A19L | 12N24-3 | 12 | 24 | 34 | 190 | 184 | 125 | 160 | 170 | 0 | Flange | |
36B20R | NS40 | 12 | 32 | 46 | 225 | 196 | 130 | 165 | 190 | 1 | A/F | |
36B20L | NS40L | 12 | 32 | 46 | 225 | 196 | 130 | 165 | 190 | 0 | A/F | |
36B20RS | NS40S | 12 | 32 | 46 | 225 | 196 | 130 | 165 | 190 | 1 | B | |
36B20LS | NS40LS | 12 | 32 | 46 | 225 | 196 | 130 | 165 | 190 | 1 | B | |
38B20R | NS40Z | 12 | 36 | 52 | 252 | 198 | 128 | 200 | 220 | 1 | A | |
38B20L | NS40ZL | 12 | 36 | 52 | 252 | 198 | 128 | 200 | 220 | 0 | A | |
38B20RS | NS40ZS | 12 | 36 | 52 | 252 | 198 | 128 | 200 | 220 | 1 | B | |
38B20LS | NS40ZLS | 12 | 36 | 52 | 252 | 198 | 128 | 200 | 220 | 0 | B | |
40B19R | | 12 | 35 | 52 | 252 | 198 | 128 | 200 | 220 | 1 | B | |
40B19L | | 12 | 35 | 52 | 252 | 198 | 128 | 200 | 220 | 0 | B | |
32C40R | N40 | 12 | 40 | 59 | 280 | 240 | 132 | 200 | 220 | 1 | A | |
32C24L | N40L | 12 | 40 | 59 | 280 | 240 | 132 | 200 | 220 | 0 | A | |
32C24RS | N40S | 12 | 40 | 59 | 280 | 240 | 132 | 200 | 220 | 1 | B | |
32C24LS | NS40LS | 12 | 40 | 59 | 280 | 240 | 132 | 200 | 220 | 0 | B | |
46B24R | NS60 | 12 | 45 | 70 | 315 | 240 | 132 | 200 | 220 | 1 | A | |
46B24L | NS60L | 12 | 45 | 70 | 315 | 240 | 132 | 200 | 220 | 0 | A | |
46B24RS | NS60S | 12 | 45 | 70 | 315 | 240 | 132 | 200 | 220 | 1 | B | |
46B24LS | NS60LS | 12 | 45 | 70 | 315 | 240 | 132 | 200 | 220 | 0 | B | |
55B24R | NX100-6 | 12 | 50 | 76 | 350 | 240 | 132 | 200 | 220 | 1 | A | |
55B24L | NX100-6 | 12 | 50 | 76 | 350 | 240 | 132 | 200 | 220 | 0 | A | |
55B24RS | NX100-6S | 12 | 50 | 76 | 350 | 240 | 132 | 200 | 220 | 1 | B | |
55B24LS | NX100-6LS | 12 | 50 | 76 | 350 | 240 | 132 | 200 | 220 | 0 | B | |
US-6TN | | 12 | 100 | 176 | 760 | 272 | 260 | 200 | 220 | 0 | A | |
US-6TL | | 12 | 100 | 176 | 830 | 272 | 260 | 200 | 220 | 2 | A | |
NS100R | | 12 | 90 | 170 | 650 | 310 | 170 | 200 | 225 | 1 | A | |
55D20R | | 12 | 50 | 76 | 350 | 200 | 170 | 200 | 220 | 1 | A | |
55D20L | | 12 | 50 | 76 | 350 | 200 | 170 | 200 | 220 | 0 | A | |
48D26R | N50 | 12 | 50 | 80 | 350 | 260 | 170 | 200 | 220 | 1 | A | |
48D26L | N50L | 12 | 50 | 80 | 350 | 260 | 170 | 200 | 220 | 0 | A | |
55D26R | N50Z | 12 | 60 | 103 | 420 | 260 | 170 | 200 | 220 | 1 | A | |
55D26L | N50ZL | 12 | 60 | 103 | 420 | 260 | 170 | 200 | 220 | 0 | A | |
65D26R | | 12 | 65 | 113 | 430 | 260 | 170 | 200 | 220 | 1 | A | |
65D26L | | 12 | 65 | 113 | 430 | 260 | 170 | 200 | 220 | 0 | A | |
75D26R | NS70 | 12 | 65 | 113 | 430 | 260 | 170 | 200 | 220 | 1 | A | |
75D26L | NS70L | 12 | 65 | 113 | 430 | 260 | 170 | 200 | 220 | 0 | A | |
80D26R | NX110-5 | 12 | 70 | 134 | 560 | 260 | 170 | 200 | 200 | 1 | A | |
80D26L | NX110-5L | 12 | 70 | 134 | 560 | 260 | 170 | 200 | 200 | 0 | A | |
55D23R | | 12 | 60 | 100 | 420 | 230 | 170 | 204 | 225 | 1 | A | |
55D23L | | 12 | 60 | 100 | 560 | 230 | 170 | 204 | 225 | 0 | A | |
65D23R | | 12 | 65 | 112 | 430 | 230 | 170 | 204 | 225 | 1 | A | |
65D23L | | 12 | 65 | 112 | 430 | 230 | 170 | 204 | 225 | 0 | A | |
75D23R | | 12 | 65 | 112 | 450 | 230 | 170 | 204 | 225 | 1 | A | |
75D23L | | 12 | 65 | 112 | 450 | 230 | 170 | 204 | 225 | 0 | A | |
65D31R | N70 | 12 | 70 | 134 | 480 | 310 | 170 | 200 | 225 | 1 | A | |
65D31L | N70L | 12 | 70 | 134 | 480 | 310 | 170 | 200 | 225 | 0 | A | |
75D31R | N70Z | 12 | 75 | 137 | 500 | 310 | 170 | 200 | 225 | 1 | A | |
75D31L | N70ZL | 12 | 75 | 137 | 500 | 310 | 170 | 200 | 225 | 0 | A | |
95D31R | NX120-7 | 12 | 80 | 160 | 620 | 310 | 170 | 200 | 225 | 1 | A | |
95D31L | NX100-7L | 12 | 80 | 160 | 620 | 310 | 170 | 200 | 225 | 0 | A | |
30H90R | | 12 | 90 | 170 | 650 | 310 | 170 | 200 | 225 | 1 | A | |
30H90R | | 12 | 90 | 170 | 650 | 310 | 170 | 200 | 225 | 1 | A | |
30H90L | | 12 | 90 | 170 | 650 | 310 | 170 | 200 | 225 | 0 | A | |
NS100L | | 12 | 90 | 170 | 650 | 310 | 170 | 200 | 225 | 0 | A | |
N90 | | 12 | 90 | 170 | 680 | 355 | 175 | 190 | 210 | 1 | A | |
30H102 | | 12 | 102 | 186 | 710 | 355 | 175 | 190 | 210 | 0 | A | |
30H105R | | 12 | 105 | 180 | 720 | 345 | 173 | 210 | 230 | 1 | A | |
30H105L | | 12 | 105 | 180 | 720 | 345 | 173 | 210 | 230 | 0 | A | |
30H115R | | 12 | 115 | 200 | 810 | 345 | 173 | 210 | 230 | 1 | A | |
30H115L | | 12 | 115 | 200 | 810 | 345 | 173 | 210 | 230 | 0 | A | |
30H125R | | 12 | 125 | 240 | 840 | 345 | 173 | 210 | 230 | 1 | A | |
30H125L | | 12 | 125 | 240 | 840 | 345 | 173 | 210 | 230 | 0 | A | |
95E41R | N100 | 12 | 100 | 186 | 700 | 404 | 172 | 205 | 225 | 1 | A/F | |
95E41L | N100L | 12 | 100 | 186 | 700 | 404 | 172 | 205 | 225 | 0 | A/F | |
105E41R | N100Z | 12 | 105 | 204 | 730 | 404 | 172 | 205 | 225 | 1 | A/F | |
105E41L | N100ZL | 12 | 105 | 204 | 730 | 404 | 172 | 205 | 225 | 0 | A/F | |
115E41R | N120A | 12 | 110 | 215 | 760 | 404 | 172 | 205 | 225 | 1 | A/F | |
115E41L | N120AL | 12 | 110 | 215 | 760 | 404 | 172 | 205 | 225 | 0 | A/F | |
N110 | | 12 | 110 | 215 | 800 | 430 | 170 | 210 | 230 | 1 | A/F | |
130E41R | NX200-10 | 12 | 115 | 232 | 790 | 404 | 172 | 205 | 225 | 1 | A/F | |
130E41L | NX200-10L | 12 | 115 | 232 | 790 | 404 | 172 | 205 | 225 | 0 | A/F | |
N115 | | 12 | 115 | 232 | 840 | 500 | 155 | 205 | 225 | 1 | A/F | |
115F51 | N120 | 12 | 120 | 228 | 720 | 506 | 180 | 210 | 230 | 4 | A/F | |
145F51 | NS150 | 12 | 135 | 250 | 810 | 506 | 180 | 210 | 230 | 4 | A/F | |
145G51 | N150 | 12 | 150 | 300 | 840 | 506 | 220 | 210 | 230 | 4 | A/F | |
165G51 | NS200 | 12 | 165 | 329 | 930 | 506 | 220 | 210 | 230 | 4 | A/F | |
195G51 | N180 | 12 | 180 | 360 | 1080 | 506 | 220 | 210 | 230 | 4 | A/F | |
N185 | N200A | 12 | 185 | 370 | 1100 | 506 | 265 | 215 | 235 | 4 | A/F | |
195H52 | N200 | 12 | 200 | 390 | 1120 | 506 | 265 | 215 | 235 | 4 | A/F | |
245H52 | N220 | 12 | 220 | 410 | 1180 | 506 | 265 | 215 | 235 | 4 | A/F |
9.Prodcution Facilities
OUR SERVICE
1.all service availble at working days from Monday to Satuardy
2. OEM or ODM accepted
About US
We are big battery factory from Guangdong, China,with battery production license .the total square is about 60000m2 .we produce battery from plate to battery completely,with more than 50 production lines and more than 400 employee.our products are battery plate , automotive battery , motorcycle battery and valve regulated lead acid battery (sla battery )
Certified by ISO9001-2008,ISO14001 ,OHSMS18001,CE ,ROSH ,UL
All batteries are excellent quality, well recognizing worldwide and with reasonable Prices. Any inquiries or query would be replied at the earliest date.
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
Your any cooperation is highly appreciated
