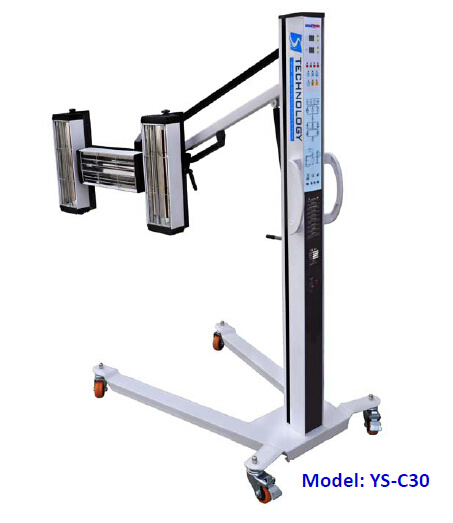

Moveable Short Infrared Lamp for Spray Booth Manufacturer

Name: Moveable Short Infrared Lamp for Spray Booth Manufacturer
Brand: ibuyautoparts.com
SKU: 690105051
Availability: InStock
Rating: 4.3 (30 reviews)

Price:	US $ 275-298/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Model: YS-L2
No matter what your size is, if you can dream it, we can build it.
With plenum, intake and exhaust air fan.
Ce certificate approval.

Technical Parameter:

Temperature Rise Time: 5-15 min (50-80ºC)
Drying Time for different coating
Putty: 8-10 min
Base Coat: 8-15 min
Top Coat: 15-20 min
Clear Coat: 8-10 min
Baking Area: 1200 x 700 mm
Baking Distance: 0.5-0.8m
Input Voltage: 220-240V,50HZ,1KW
Cable: 5M long , specification is 3x1.5 m2,can be changed as per different country demand.
Gross Weight: 54KG

Key Features:

The heat reflection plate with multi angle design to make the heat reflecting rate more than 80%.

The shortwave infrared lamp is CE approved; rising temperature is faster and heating time is shorter; the using life is more than 5,000 hours; suitable for small area baking.

The cassette is made of aluminium alloy for durability and good thermal diffusivity; the baking time and power of heating lamp can be adjusted by knob switch for different coating requirement.

The "H" style basement provides a smooth and solid working condition.

Equipped with a special device to prevent cassettes from falling down.
The installation and operation are very easy.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.Custom Design paint booth is our super advantage.

Prod Model:	YS-L2
Dry Acreage:	1.2*0.6m²
Dry Distance:	0.5-0.8m
Temperature Rise Time:	5-15min(20-80 Degrees Celsius)
Voltage:	1X220V, 3X380V, Your Special Voltages Are Accepted
Certification:	CE
Condition:	New
Type:	Short Wave Infrared Curing Lamp

Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.

Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).

As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.

The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.

YOKISTAR is an ideal cooperator who deserves your reliance.
