Motorized Bike Motor Kit/Motor Kit 80cc

Name: Motorized Bike Motor Kit/Motor Kit 80cc
Brand: ibuyautoparts.com
SKU: 727790212
Availability: InStock
Rating: 4.4 (65 reviews)

Price:	US $ 35-70/Piece
Min Order:	30/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

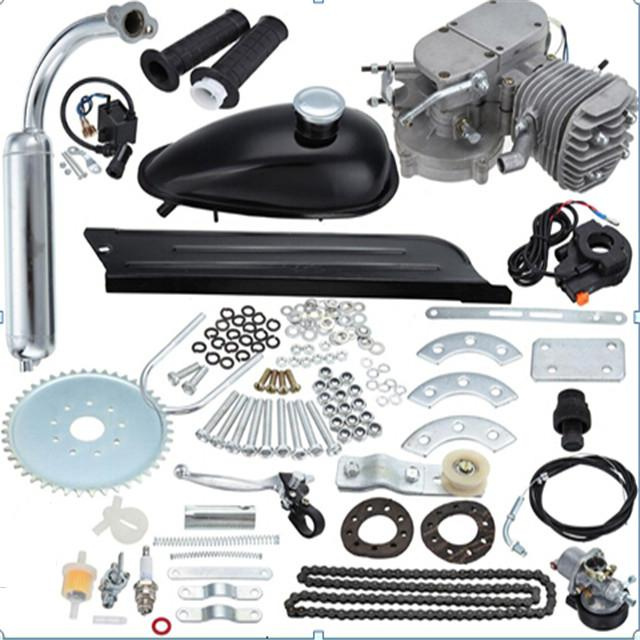

motorized bike motor kit/motor kit 80cc

Specification:
Engine & CDI Assembly:

Type: 2 Stroke, Single Cylinder, Air Cooled

Material: Aluminum

Replacement: 50cc/60cc/66cc

Max. Power: 1.68KW/1.86kw/2.2kw

Max. Safe Speed: 42Km/h; Actually, 80km/h is no problem

Bore and Stroke: 40 x 38mm/45 x 38mm/47x 38mm

Fuel Consumption: 2L/100km;2.5L/100km;3L/100km

Dimension: 12 x 21 x 22cm
There must be enough space to install this engine

Magneto with solid state CDI assembly

Slant head makes spark plug at the top at a 45 degree angle which gives the
motor higher compression and adds extra MPH

Fuel Tank & Carburetor Assembly

Fuel Tank Material: Iron

Fuel Tank Volume: 2L

Fuel Ration: 16:1, 20:1 after running in

Running in Period: 500Km

Carburetor provides better fuel

Rubber hose to connect fuel tank and carburetor

Fuel filter to avoid scratching the engine with crap in the fuel

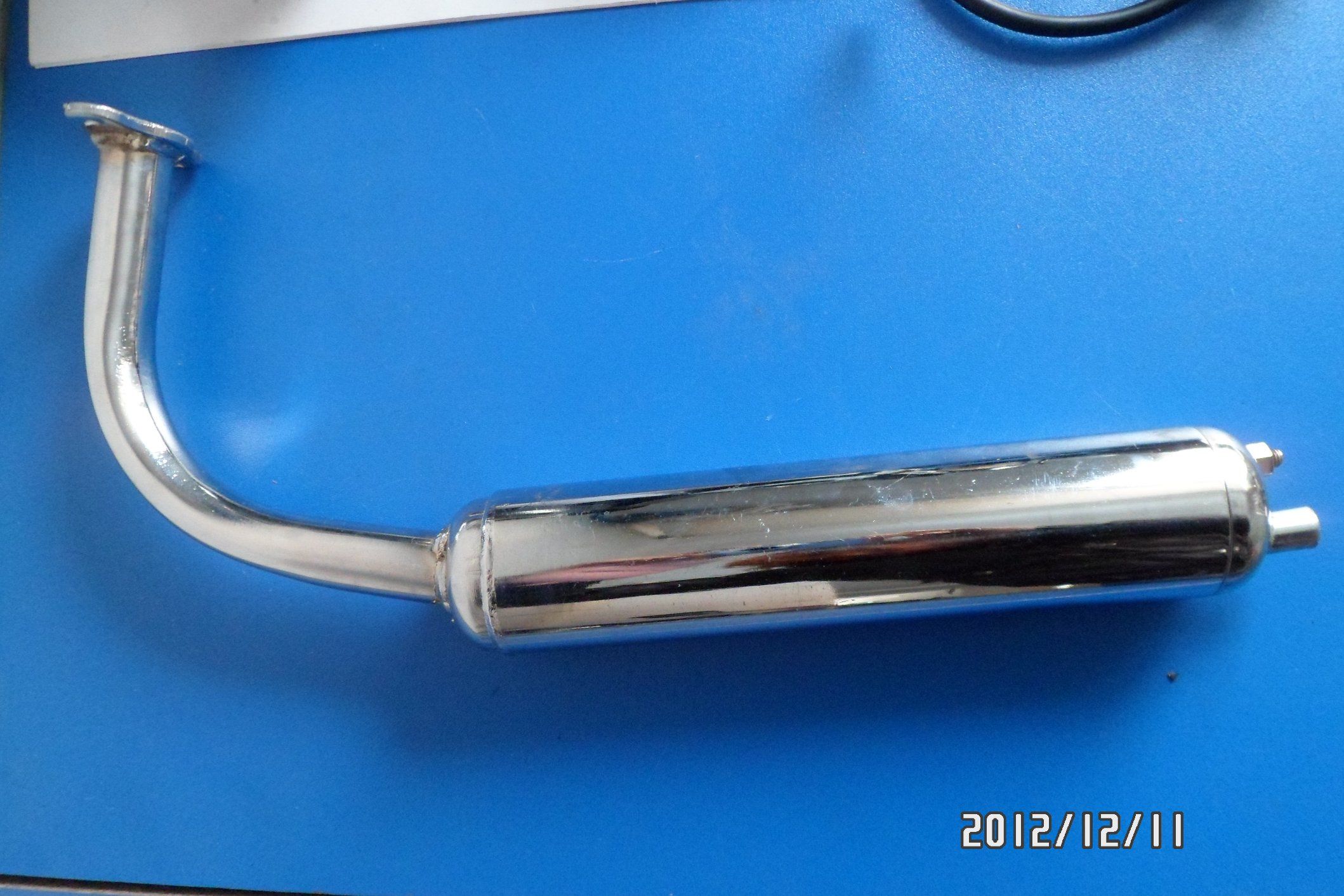

Exhaust Muffler

Material: Chrome Plated(normally, it's galvanized plate )

Muffler makes engine produce low heat and low noise

Muffler fixer for better installation of exhaust system

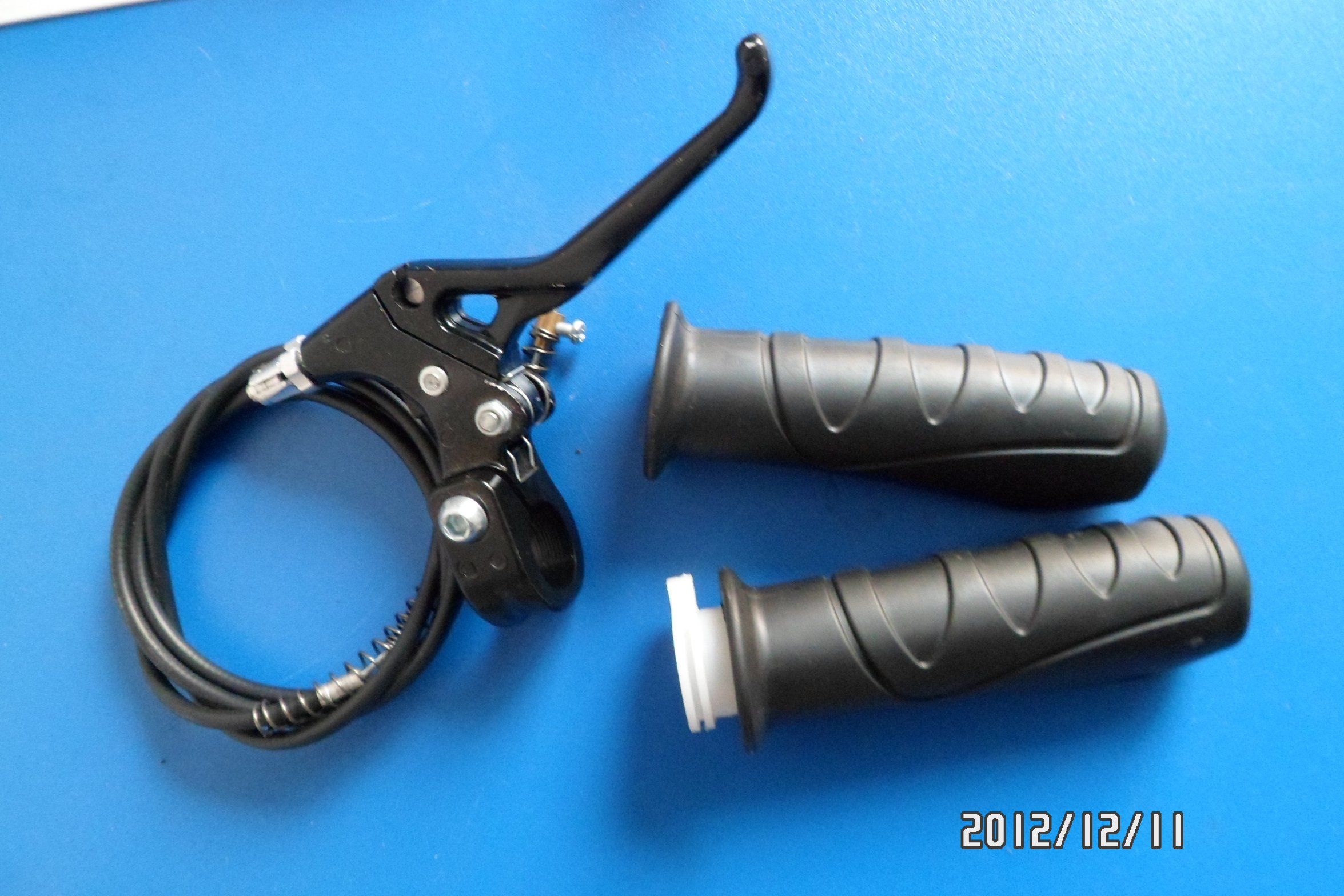

Clutch & Twist-grip Throttle

Easy to use, convenient, agile clutch

Twist throttle to increase speed, reverse throttle to decrease speed

Kill switch on twist-grip throttle to stop engine

Disengage clutch and apply brakes to stop bicycle

Chain Assembly

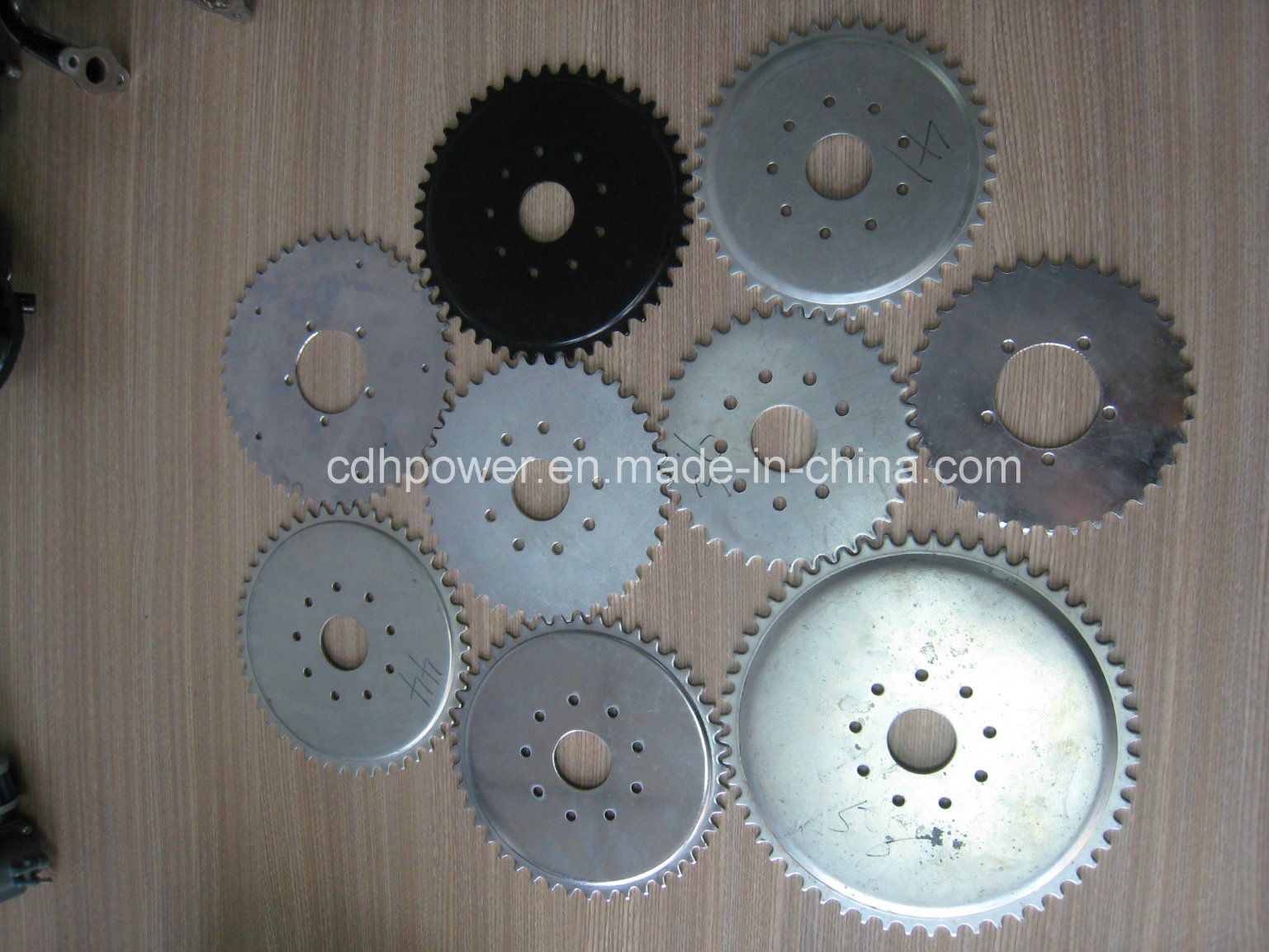

44-Tooth, 9 Hole chromed plated chain sprocket

Heavy duty standard 415 Chain

Independent drive sprocket and chain do not interfere with current drive chain and peddling

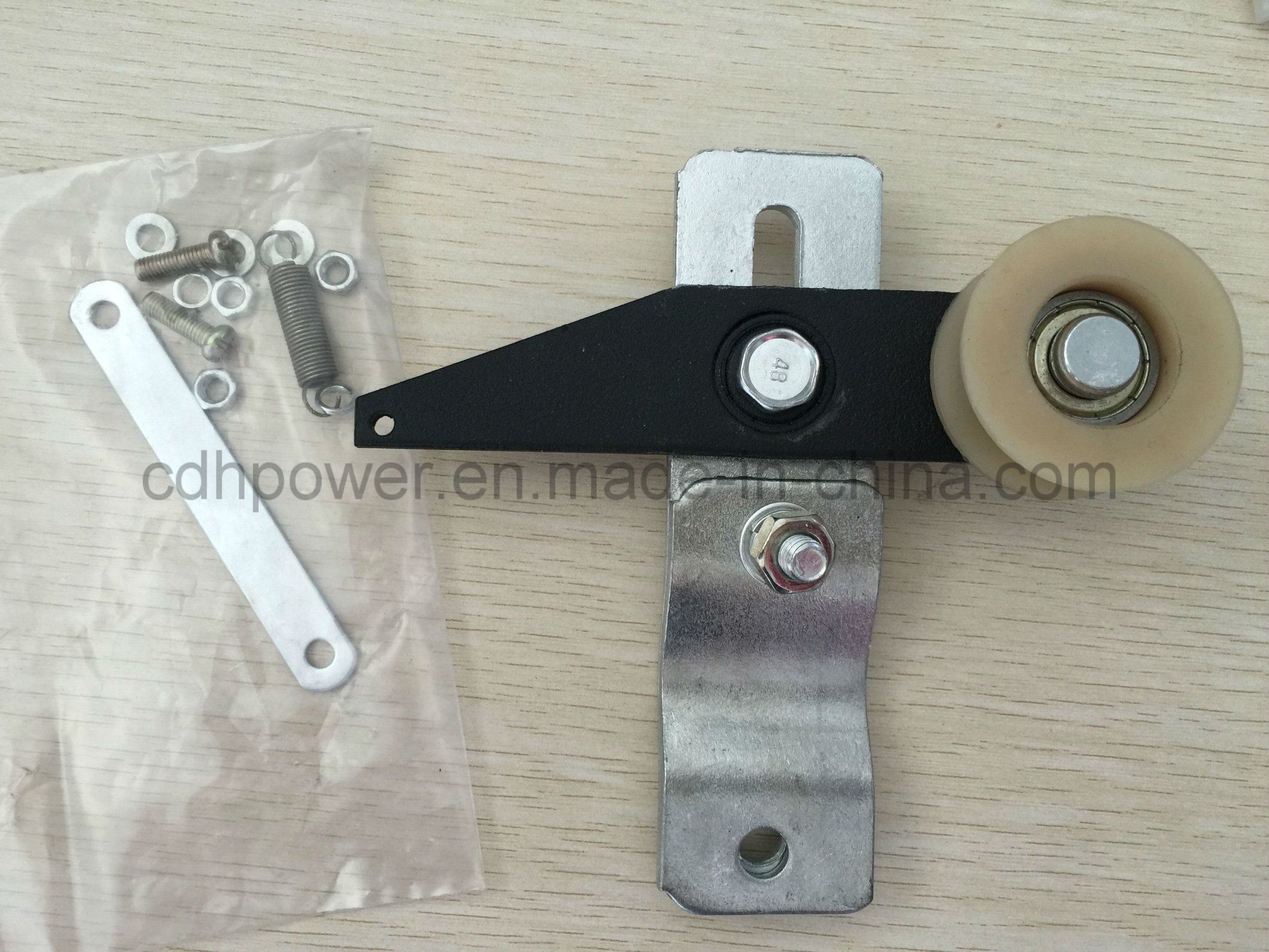

Chain idler pulley ensures chain rotate smoothly

Chain guard protects chain well

Other Accessories

Gear puller helpful to rotate the small sprocket

Spark plug tool used to install spark plug

Fiber gaskets, half-moon plates used to fix sprocket

Bolts, washers and nuts make mounting easier and more convenient

Completely easy to follow installation instruction

Prod Model:	CDH80cc
Colore:	Silver, Black, Red, Blue, Chromed; Optional
Warranty:	12 Months
Power:	2.2kw/66cc
Bore&Troke:	47mm*38mm
Type:	Fuel System
Certification:	CE
