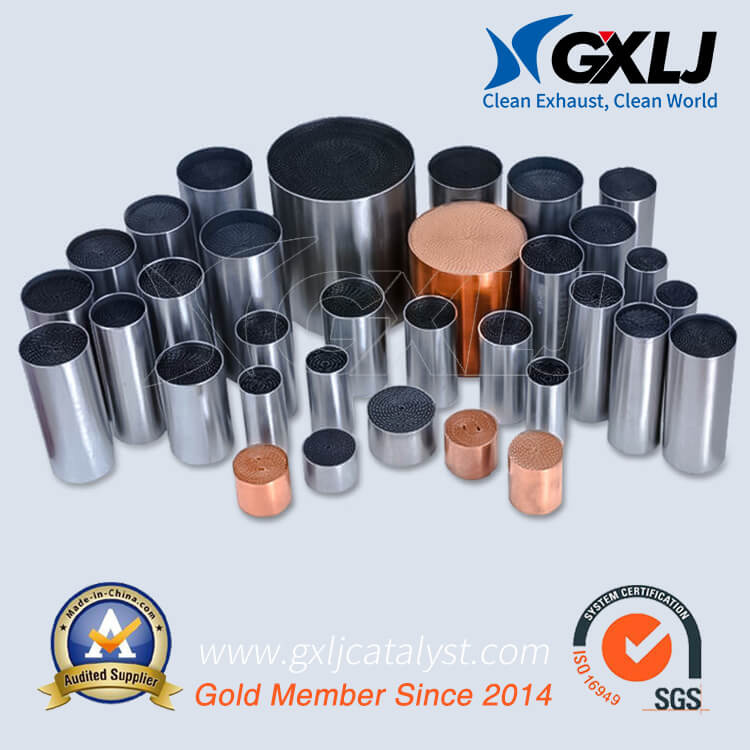

Motorcycle Use Metallic Honeycomb Catalyst Converter Substrate
| Price: |
US $ 20-30/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LJJZ000 |
| Fitment: |
Fit for Catalytic Converter for Diesel Engine or P |
| Emission Standard: |
Euro II,Euro III,Euro IV, Euro V, EPA, Carb Compli |
| Shell Material: |
Stainless Steel 409,304,444,441,430 |
| Shell Shape: |
Round, Ellipse, Racetrack,Triangular or Abnormity |
| Thickness Of Shell: |
1.5mm |
| Core Material: |
Fe Cr Al |
| Size: |
Customized According to Customers' Requirements |
| Cell Density: |
100cpsi,200cpsi,300 Cpsi , 400 Cpsi,600 Cpsi (Cell |
| Thickness Of Foil: |
0.03 to 0.1mm |
| Braze Welding: |
Nickel-Based Solder |
| Body Material: |
Steel |
| Discharge Standard: |
Euro V |
| Certification: |
CCC |
| Type: |
Metallic Honeycomb Substrate |
| Component: |
Core of Catalytic Converter |
Product Description
Metallic Honeycomb Catalyst is suitable for automobile exhaust purification catalytic converters , industrial waste gas purification and other fields. It can meet the increasing requirements of environmental protection .We also supply Catalytic Converter, Catalytic muffler, Motorcycle catalytic converter, DPF,DOC Catalyst, SCR catalyst ,TWC catalyst,Ceramic honeycomb monolith , Metal honeycomb carrier, ect. Our management system has been certified the ISO9001 and TS16949 by SGS company. We offer the most diverse metallic substrate configurations in the world.
All shapes can be made with or without mantels.Sizing for rounds, ovals and rectangles up to 48" - 1200mm ODCustom cell configurations available SubstrateConfigurations
Shapes can be made with or without mantels/tubeCustom shapes that may not be shown here are also available upon requestCustom foil geometries availableExtensive product offering with variable cell sizes and flow depth options SubstrateConstruction
Brazed, Oxidized & Mechanically RetainedSingle brazed rounds as large as 48"OD (1200mm)Rectangles up to 48" (1200mm) Standard Metallic Substrate Nomenclature Metal Substrates without mantelsMetal Substrates with mantelsMatrix OD x Matrix length x CPSIMatrix OD(Mantel OD)x Matrix length(Mantel Length)Example: 6.5 inch x 3.5 inch x 300CPSIExample:6.38 inch (6.5 inch ) x 3.5 inch (4.0 inch) x 300CPSI | Cell densities - CPSI | Stock foil widths | Rounds in Mantels |
| (air flow depth) | Available tube sizes smaller 6″ OD |
| 25 | 260 | Inches | mm | Inches | mm |
| 50 | 300 | 1 | 25 | 1 | 25 |
| 70 | 350 | 1.7 | 43 | 1.25 | 32 |
| 80 | 400 | 2 | 51 | 1.5 | 38 |
| 100 | 500 | 2.25 | 57 | 1.75 | 44 |
| 150 | 600 | 2.5 | 64 | 2 | 51 |
| 200 | 900 | 2.75 | 70 | 2.25 | 57 |
| 230 | 1000 | 3 | 76 | 2.5 | 64 |
Custom sizes also
available upon request | 3.25 | 83 | 2.75 | 70 |
| 3.5 | 89 | 3 | 76 |
| 4 | 102 | 3.25 | 83 |
| 4.72 | 120 | 3.5 | 89 |
| 5 | 127 | 4 | 102 |
| 5.91 | 150 | 5 | 127 |
| 12 | 305 | 6 | 152 |
| | | Any OD larger than 6″ |
| is available |
| Advantage | 1.Low initiation temperature
2. Low pressure drop
3.High mechanical strength
4. Excellent thermal and coking resistance
5. Reliable braze welding intensity
6. Durable heat-resisting impact performance
7. Perfect catalyst coating binding force
8. Good anti-shock
9.can be specialized designed for the customers various vehicle type |
| Application | Use for exhaust system of general engine and off-road engine's catalyst carrier/support.
Apply to Auto/Motorcycle, Infrared Gas Stove, garden machinery
(Gasoline Chain Saw, Brush Cutter, Hedge Trimmer, Earth-Auge), etc. |
| Specification | Diameter: 35-266mm
Length: 40-130mm
Round/ Racetrack/Oval or can be customized to your requirement
Cylinder shape, "T" series(one hole)/ "S" series
(Two holes) |
| Pore density | 100-400CPSI |
| Conversion rate | If have coating ,CO≥96%, HC≥95%, NO≥90%. |
| Coating losing rate | If have coating, ≤3 % |
| Emission Standard | Meet the Standards Euro II ~ Euro V emission standard, EPA, CARB standard |
| Service life | Above 120,000 KM |
Specifications| Mantle | Matrix | Brazing |
| Ferritel (SUS444, SUS441, SUS430) | Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy | Nickel base alloy |
| Domestic FeCrAl(2073/216) |
| or Austenitic heat resistant stainless steel(SUS304) | Import FeCrAl(1.4725/1.4767) |
| Dimension and Cell Densitities | | |
| Dimensions(mm) | Cell densities(CPSI) | Foil thickness(mm) |
| round shape with diameter more than 28mm, length up to 300mm | 50,100,200,250,300,400,000,000 | 0.03,0.04, 0.05,0.06,0.08,0.10 |
| Oval shape |
| Others (Rectangle etc.) |
Add us to your favorite sellers list & Recommend our store to your friends and family!Don't forget to regularly pass-by as we are constantly adding new products, special offers and unbeatable deals to our listings!
General Description
Our cost-effective solutions to tighter emissions standards, Guangxi Huihuang Langjie environmental &Tech. Co., Ltd, specializing in the development and manufacture of exhaust emissions catalytic converter/catalyst solutions for all applications.
Since 2001, GXLJ has integrated complete product design, testing and manufacturing. Today, GXLJ is a premier supplier and manufacturer of high performance catalytic converters and substrates for diesel and gas fueled engines, with shorter lead times, greater quality control and superior service - all at greatly reduced cost.
GXLJ Catalytic Converter
Advantage
Our integrated approach and superior product quality allows us to provide highly customized solutions to manufacturers around the world. At GXLJ, we are dedicated to meeting and exceeding customer needs and requirements. Our staff is continually trained to stay current with cutting-edge developments in the field, for ongoing product improvement.
By controlling the design and manufacturing process, GXLJ is able to ensure strict quality control, by adhering to our TS16949 certification. Share your goals and business challenges with us. We will ask questions, listen, and respond to create solutions that fit like they were made for you - because they are.
GXLJ Catalyst for Exhaust emissions
Advantage
GXLJ specializes in the manufacture of high performance catalytic converters and metal/ceramic substrates. The cores offer a significant advantage, being more economical and less restrictive, while maintaining high durability.
With our cores you'll also experience additional advantages:
1. They are more cost effective in larger diameters
2. They have a quicker "light off"
3. The metallic cores experience 15%-30% less pressure drop than a ceramic of the same size and cell density
4. They provide more cost effective canning methods
5. Reduction of overall size of packaging
6. Can be produced to weld directly in exhaust system
7. They have higher thermal shock resistance
Welcome to consult us!
