Shenzhen Vcomsky Technology Co., Ltd. >> Mobile Car DVR -- 8CH 720p 3G 4G GPS WiFi Function for Optional

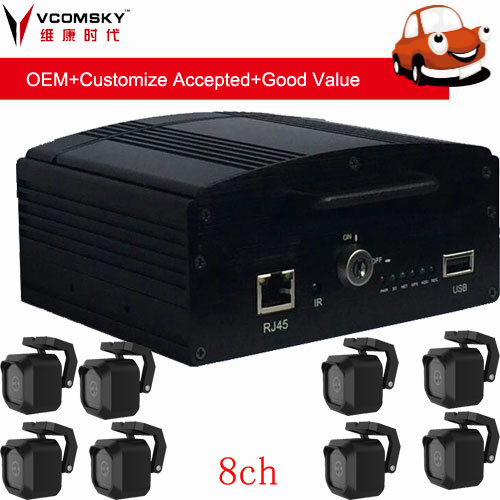

Mobile Car DVR -- 8CH 720p 3G 4G GPS WiFi Function for Optional

Mobile Car DVR -- 8CH 720p 3G 4G GPS WiFi Function for Optional
Price: Negotiable/Piece
Min Order: 2/Piece
Pay Type: T/T,Western Union
Prod Model: VC-H2-8
Compression Format: H.264
Interface: Aviation +VGA+RCA
Interface Display: 1CH 2CH 4CH 6CH 8CH Preview.
Brand: Vcomsky

Product Description




H2 Series 720P Small Size Hard Disk Mobile Digital Video Recorder
MODE: VC-H2


Descriptions

VC-H2 Series is a 720P MDVR withing 1pcs hard disk +1pcs SD Card . specially designed for analogy project solution's upgrade directly purpose,it can supply very  good quality picture to show the details more clearly without rewiring. Support 4 channel real time 720P video and 4 channel audio recording, or support 8ch 960H  AV as 8ch HD record solution.

Key Features
  1. Industrial level design;
  2. H.264 advanced audio/video compression technology;
  3. 4ch model support max 4ch 720P video input,4 ch audio input;
  4. 8ch model support max 8ch 960H video input,8 ch audio input;
  5. 8-36V wide voltage with low power consumption;
  6. Unique UPS Technology ensures the integrality of record when power failure occurs, even can for 8-10s;
  7. Exclusive pre-allocate File System protect data completeness,prevent HDD & SD Card fragment,ensure date stablely and completely;
  8. Built in G-sensor module for optional;
  9. Built in GPS/BD Extension module for optional;
  10. 3G/4G, GPS, Wi-Fi function for optional and switch automaticly;
  11. Central management software provided for optional;
  12. Local and remote PTZ control;
  13. Data redundant storage technology;
  14. Remote control ,remote download,remote playback;
  15. Support 6ch I/O alrm,over speed alarm,g-sensor alarm,video lose alarm, motion detection alarm;
  16. support USB port data backup and device update;
  17. HDD+SD Card Storage ( Support 2.5" HDD, max 128G SD Card);
  18. Support HDD heating functions,can work in harsh environment;
  19. Realize real time monitor through 3G/4G/wifi;
  20. Support Broadcast/Intercom/Text sent etc;
  21. Can help customer to add oil sensor/temperature sensor / POS / LED Advertisement Panel for optional;
  22. Support IOS/Android Phone Remote monitor



Application
Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat


Specifications

ITEMDESCRIPTION
SystemLinux
GUISetup system parameters through the remote controller.
LanguageCHINESE/English
SecurityAdministrator and user password supported
Video and previewVideo input/output4 channel input; 2 channel output; 1.0Vp-p, 75Ω
OSDOverlays letters like date & time information and vehicle ID into video streaming
Video Compression CriteriaH.264.With Hisilicon technology
Preview
Support 1 ch  2ch  4ch  6ch  8ch  preview.

FPS
PAL: 25Frame/s  NTSC:30Frame/s
ResolutionSupport 720P,D1,HD1, CIF for optinal
Video quality1-8 levels, 1 is the highest level and 8 is the lowest level
Video Bit RateCIF: 256Kbps ~ 1.5Mbps, 8 quality level support,
HD1: 600Kbps ~ 2.5Mbps, 8 quality level support,
D1: 800Kbps ~ 3Mbps, 8 quality level support,
720P:4Mbps-6Mbps, 8 quality level support


Audio
Audio input/output4 channel input for 4ch model/8ch for 8ch model;       1 channel output
Audio Streaming  G.726

Record
StorageSD card: support  max 128G,
support USB for data export
File form/systemH.264/FAT32
Recording ModeDefault auto recording after power on, support timed recording, alarm recording.
Video SearchSearch video by time, type (normal or alarm), target SD card
Video playbackSupport 1 to 4/8 channels playback simultaneously
Support forward and backward at the speed of: x2, x4, x8, and x16.
AlarmAlarm inputSupport up to 6 channels alarm input
Alarm record include the recording within 15 seconds ahead of the alarm starting, and the recording after alarm dynamically adjusted
Alarm of storage Support  storage alarm
Alarm function  The alarm of video loss
Communication interfaceRS232, RS485,RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional)Built-in 3/4G wireless transmission module for optional, WCDMA, CDMA2000, TD-SCDMA,TDDLTE,FDDLTE system optional; Compatible with GPRS, EDGE;
 Built-in Wi-Fi module for optional;
GPS (optional)Support external GPS module for optional
Data remote transmissionSupport 3G/4G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download;
PTZ controlSupport PTZ control function by local remote controller or client software;
Parameter configurationSupport parameter configuration
G-sensor (optional)Built-in G-sensor moudule for optional
UpgradeUpgrade by SD card or USB (advise USB)
Power&consumptionPower management
1.ACC ON/OFF
2. System power off according to the delay time
3.Timing ON/OFF
With overload protection, undervoltage protection, short protection,
Power inputDC:+8V ~ +36V
Power output+12V@5*0.5A;
Power consumptionThe normal state<10W;Standby 0W
Working environmentOperating temperature-25ºC ~ +60ºC
Operating Humidity10% to 95%
Dimensions142(W) x62(H) x123(D) mm.
Weight1.1KG
