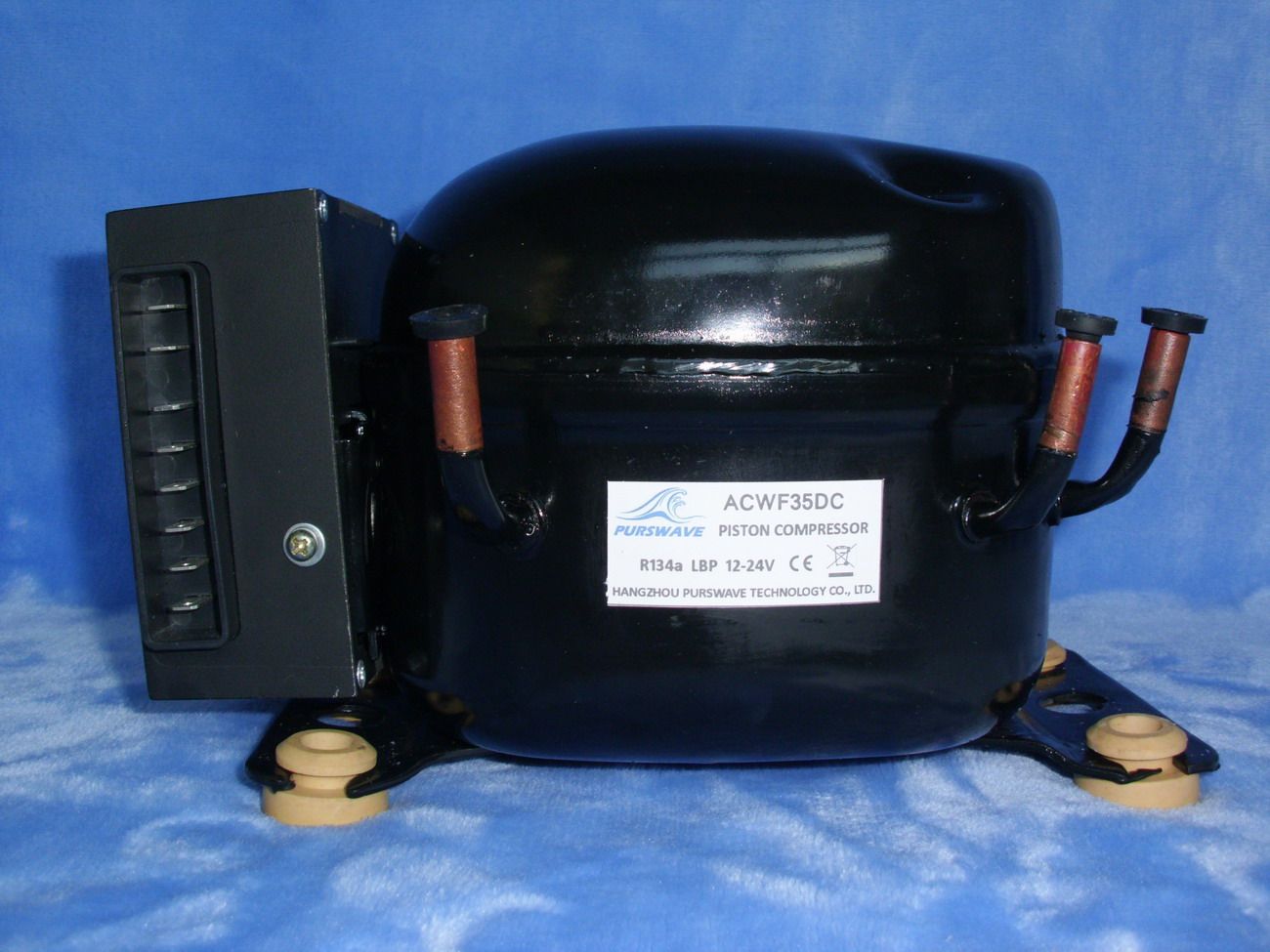

Hangzhou Purswave Technology Co., Ltd. >> Mini DC Compressor, R134A, LBP, 12-24V (ACWF35DC)

Mini DC Compressor, R134A, LBP, 12-24V (ACWF35DC)

Mini DC Compressor, R134A, LBP, 12-24V (ACWF35DC)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
2V 24V DC Compressor for refrigeration, dispenser, fridge, portable machine
Model: ACWF35DC
Power Supply: 10.9-17V; 22.7-31.5V
Displacement: 3.5CC
Refrigerant: R134A
Cooling Capacity at 3500RPM: 106W
Cooling Capacity at 3000RPM: 86W
Cooling Capacity at 2500RPM: 73W
Cooling Capacity at 2000RPM: 60W
Rated Power at 3500RPM: 88W
Rated Power at 2500RPM: 71W
Rated Power at 2000RPM: 50W
Rotary Speed: 2000-3500RPM
Current at 3500RPM: 7.3A
Current at 3000RPM: 5.9A
Current at 2500RPM: 5.0A
Current at 2000RPM: 4.1A
COP: 1.2W/W
Motor Type: BLDCM
Application: LBP
Weight: 4.2KG

Application:
LBP: Low back pressure; Refrigerator, Freezer, Wine cooler
MBP: Medium Back Pressure; Air-conditioner, vending machine
HBP: High Back Pressure: Air-conditioner, ice maker

LBP ASHRAE Test Condition:
Evapration Temperature: -23.3 º C
Condensing Temperature: 54.4 º C
Subcooling Temperature: 32.2 º C
Ambient Temperature: 32.2 º C

Parameter Variation Range:
Cooling Capacity: ≥ 95%
Inpurt Power: ≤ 115%
Current: ≤ 110%
COP: ≥ 95%

Cooling Type:
S: Natural cooling
F1: Fan cooling, 200mm fan diameter, 1.5m/s air speed
F2: Fan cooling, 200mm fan diameter, 3m/s air speed
Prod Model: ACWF35DC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity: 106W
Rated Power: 88W
Power Supply: 12-24V
Refrigerant: R134A
Current: 7.3A
Cop: 1.2W/W
Capacity: >20L
Voltage: 24V
Certification: CE
Power Source: Electricity
Displacement: 3.5CC
Hangzhou Purswave Technology Co., Ltd is located in Hangzhou, near Shanghai city and Ningbo port, transportation is convenient. We R & D, produce, sale and export product by ourselves, is committed to the promotion and application of DC refrigeration technology, with professional technology and first-class service, serve for society. Based on national patent products - the DC inverter compressor of the outer rotor structure, our company has developed solar freezer, car refrigerator, ice-maker, showcase, etc. 5 series and more than100 models of similar products are sold to all around the world. And we have solved the technical problems of large DC freezers above 1000L and get a number of national patents. Based on DC Tiny compressor, we developed a new structure of portable refrigerator and have obtained national patents. It can be widely used in outdoor camping, medicine storage cold frozen food transport and other fields. In addition, our company also professionally provides custom made refrigeration systems, such as cold water machine, refrigeration express cabinets, etc. Quality products, intentions of service! We will do our best to supply good products for society!
