Microwave Sensor for Automatic Sliding Door

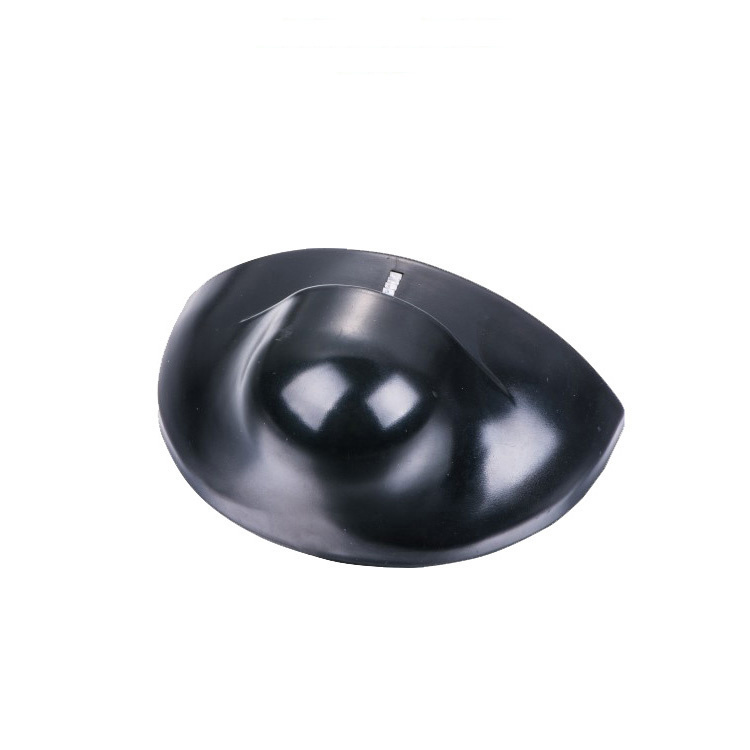

Name: Microwave Sensor for Automatic Sliding Door
Brand: ibuyautoparts.com
SKU: 821208305
Availability: InStock
Rating: 4.5 (63 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product features

1.Detecting range is large enough, and can be adjusted easily.

2.Electric filter provide a good capacity of resisting disturbance from raining, wind, lighting and so on.

3.This sensor the most detect distance can be 8 meter for special using (At the same time the blind zone will larger) .

4.Safe, beautiful, economic, comfortable.

Specifications

24 GHz Microwave Doppler Motion Sensor for automatic door opening (Y104)
Approval	CE & SGS
Lunch frequency	24.125ghz
Launch power	<20 dBm EIRP
Launch frequency density	< 5mW/ cm ²
Assemble a dip angle	15°, 30°, 45°, 60°
The maximum checks range	4x2m (WxH)
(while assembling 2.2 meters of altitude)	4x2m (WxH)
Checking pattern	Move
The minimum checks speed	5cm/s (Along the longitudinal axis of air wire to tests)
Power source voltage	12V-24V AC(+/-10%), 12V-30V DC
Power source frequency	50-60HZ
Power dissipation	<2W (VA)
The relay outputs(there be no initial electric potential)
Maximal contact voltage	42V AC-60V DC
Maximal contact electric current	1A(Electric resistance)
The maximum change power	30W(DC) / 60VA(AC)
Output retention time	0.5 second
Temperature range	-20ºC~55ºC
Protection rate	IP 52
Outer covering material	ABS Plastic
Outer covering color	Black, Silver gray
Weight	100g
Conducting wire length	2.5m
External form dimension	121x79mm (DxW)
External form dimension	42x52mm (Height)

Our service

Welcome OEM&ODM orders:

1) Logo printing on products;
2) Customized color box or carton;
3) Any your ideas on products we can help you to design and put it into production.

FAQ

1. Can we try the sample order first?

Yes, we can offer even 1 pc for testing.

2. What is lead time if we place an order?
If we have the order in stock, it would be 2 working days.
If we don't have the order in stock, it would be 7-20 days.

3. How to make payment?
T/T, Paypal, Western Union, L/C is acceptable.

4. What is the delivery way?
DHL, UPS, Fedex, TNT ,EMS, DTDC etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport.
For mass order, shipping by sea or by air transport will be good choice.

5. What's the after-sale service?
We will provide the after-sale service by e-mail, skype, whatsapp, trade manager, telephone, QQ and wechat etc if you need any assistance from us after receiving the order.

Prod Model:	Y104
Door Sensor GHz:	24.125GHz
Mounting Height:	Max 3.5m
Power Source Voltage:	12V-24V AC(+/-10%), 12V-30V DC
Outer Covering Color:	Black, Silver Gray
