Professional design high performance microwave induction module HW-MC202
AC 220V High sensitivity microwave transceiver module for Intelligent Systems
New AC220V 1500W Microwave motion sensor module Detector Detection HW-MC202
1500W Radar Sensor & Microwave Sensor Module HW-MC202 directly connected MCU
Customized Output Voltage microwave sensor module motion Detector Module HW-MC202
Microwave radar sensor body sensor switch module
Welcome OEM module!
Specifications:

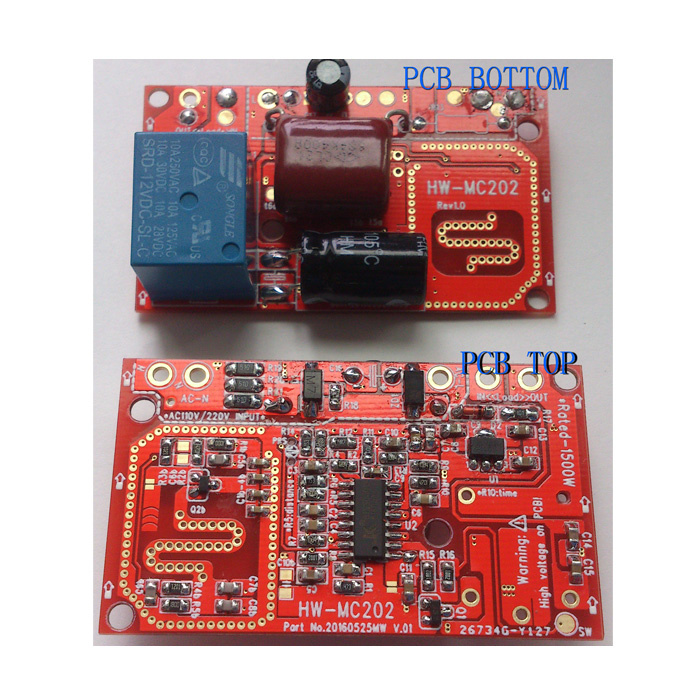

HW - MC202 microwave induction module adopts the planar antenna transmitting and receiving. Induction object for moving objects (or car), after induction to the output voltage signal, for active microwave induction, former hemisphere, output by relay ON/OFF.
Widely used in security monitoring, intelligent systems, control of lamps and lanterns, automatic doors, garage, corridor, roads, etc. Welcome to negotiate!
Features:
1.Is not affected by temperature, humidity, air flow, such as dust, noise, light and dark, strong anti-jamming capability.
2. microwave module is a pattern to launch out, no dead Angle blind area, wide coverage.
3. microwave is reflected more easily in the process of transmission, sensitivity inside will be better, outdoor is a bit poor.
4.can signal through the glass, obstacles such as trees, plastic (this will make the induction distance less)
5. professional design planar microstrip antenna, low power consumption, ROHS, high product consistency.
HW-MC202 Technical parameters:
| Frequency | 50HZ |
| Input voltage | AC220V (Custom AC100V/60HZ) |
| Output voltage | Customized |
| Distance | 10m(default,can be customized) |
| delay time | 2s(default,can be customized) |
| Size | L60*W35*D20mm |
Warm note:
| Power | AC 220V (Load Capacity: AC220V/DC30V:10A) |
False Action
| 1.Pay attention to the power supply related requirements, refer to the first one .
2. If anybody there about 1m distance from the module.
3.You shall test the module after 10seconds.
4 It is very sensitive if test indoor. People need stay far away.Test it when no signal output
5 current is very weak when test.Too much current is easy to cause false positives. |
| Delay time | Default one is 2S,NonRepeat trigger way |
| Abs cover | Can custom as client's request |
