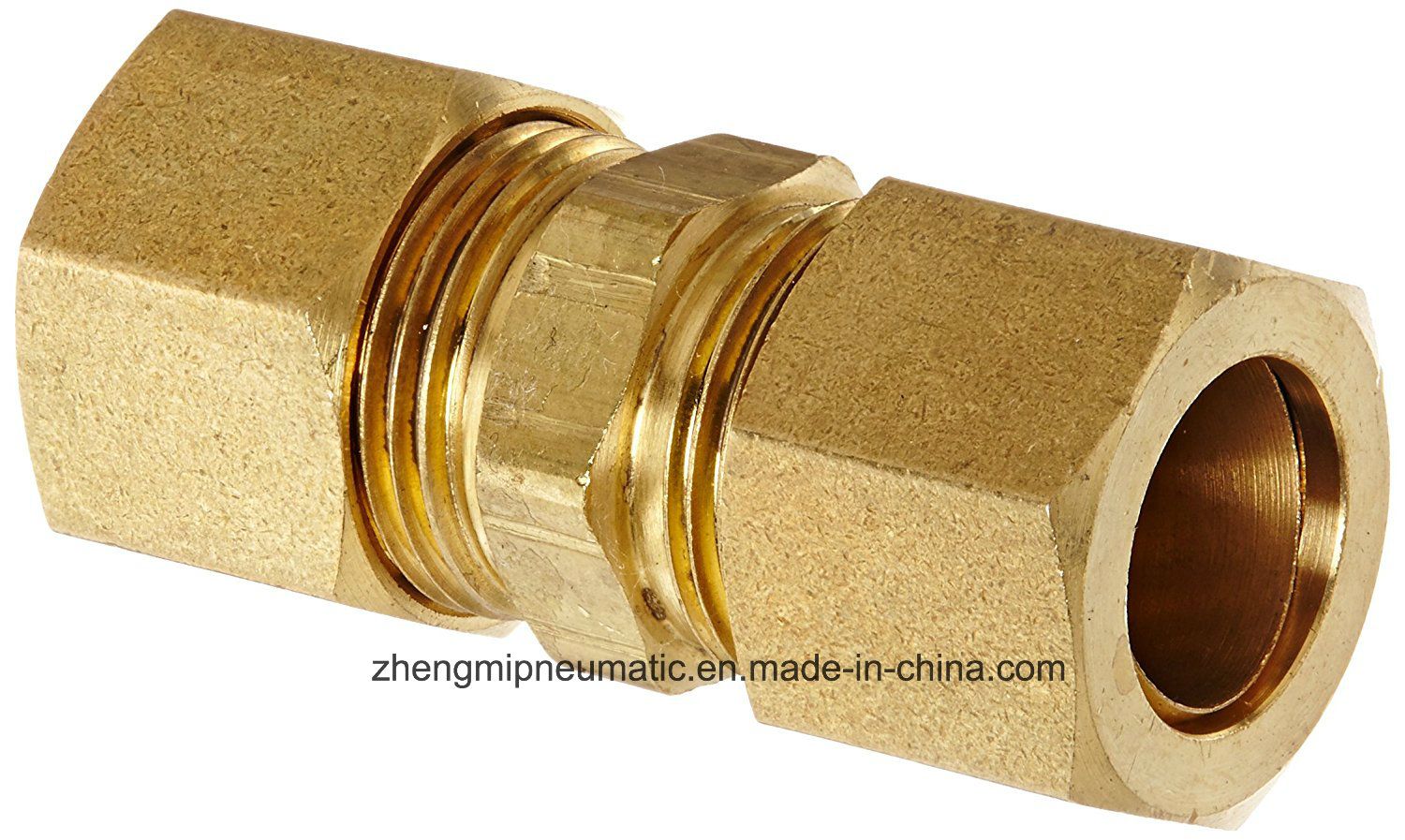

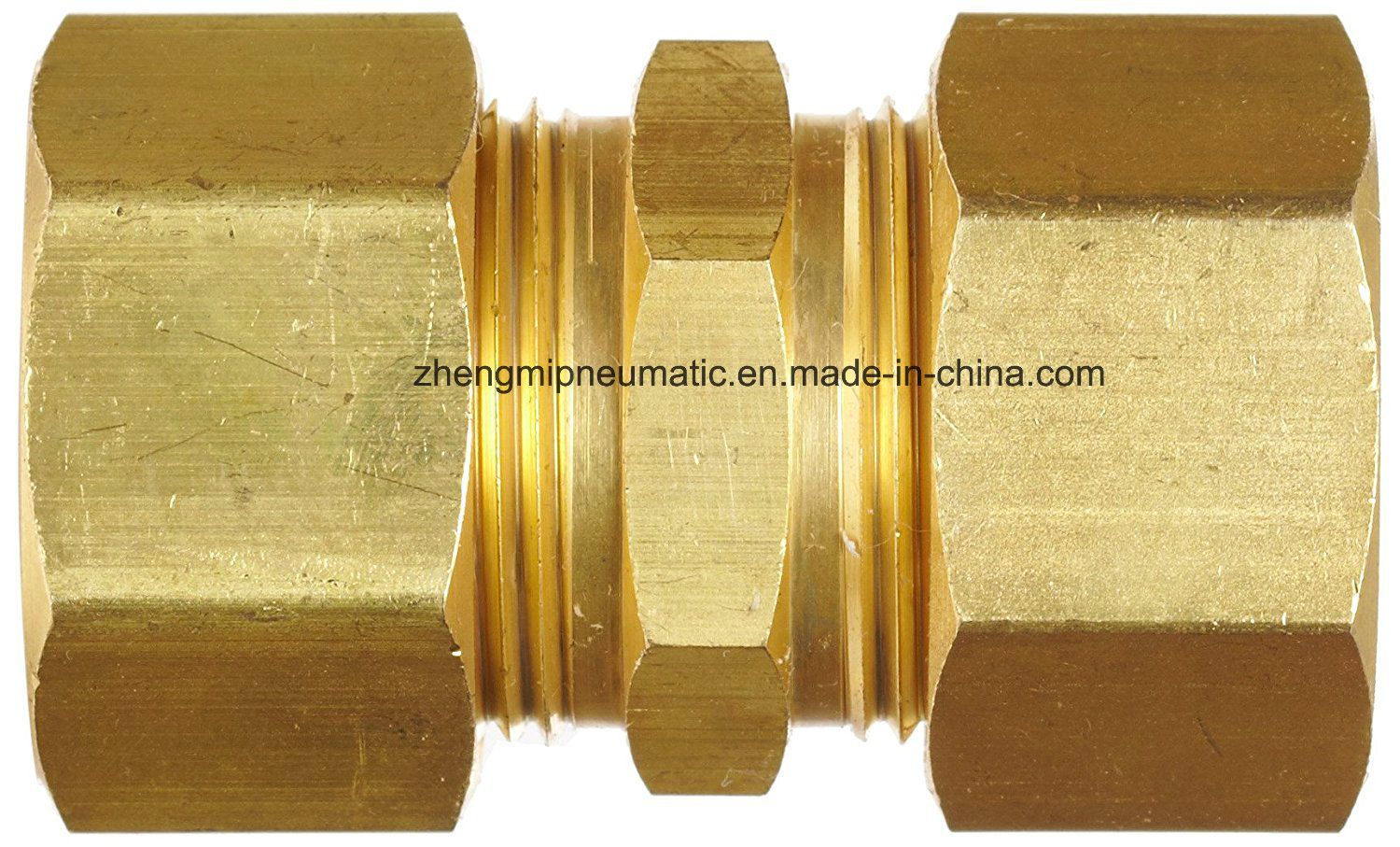

High quality brass fittings, 962 Union,Air Brake Fittings for Nylon Tube
note:the following size is just for you refer , unstandard size is custom-made .
Specifications:
1. Product Name: Sleeve 60NTA, 960 Nylon Tube Sleeve,Air Brake Fittings for Nylon Tube
2. Raw Material: Brass DZR , CW602, CA360, lead-free, or according to your requests.
3. Size: Customized on your request.
4. Surface: Yellow brass color, or Nickel plated, or Chrome plated.
5. Certification: ISO9001:2000.
6. Years of OEM experience.
NTA Advantages:
Meets D.O.T. FMVSS 571.106 air brake specifications. Utilizes
ribbed sleeve for compression and positive grip. NTA? bodies (less
tube supports) are interchangeable with AB (SAE J246) fitting bodies.
NTA fittings are pre-applied with Locite Vibra-Seal 516 on all male
pipe threads.
No Special Tools Needed
You can assemble tubing to Parker NTA? fittings, no need to flare.
Machined from CA 360, CA 345 or CA 377 brass. Broad selection of
styles available.
Specifications
Meets functional requirements of the SAE automotive tube fitting
standards: SAE J246 and SAE J1131.
Applications
Use with SAE J844 Type A and B nylon tubing in air brake systems or
in cab air controls. Acceptable for use with diesel oil fuels when used
with Parker Parflex Division diesel fuel tubing.
Working Pressure Ranges
Up to 150 psi.
Temperature Ranges
Fittings will withstand variations from -40° to +200°F.
Order
By part number. Nuts and sleeves may be ordered as separate items
by their catalog number
Nomenclature
Part numbers are constructed from symbols that identify the style and
size of the fitting. The first series of numbers and letters identifies the
style and type fitting. The second series of numbers describes the size.
Sizes
Tube sizes are determined by the numbers of sixteenths of an inch in
the tube O.D.
Special Fittings
Fitting configurations and/or sizes other than those shown in the
catalog can be furnished. It is suggested that a print or sketch be
submitted with the inquiry.
Pricing
Only items priced in current supplementary price list PL3501 are
carried in stock. Price and delivery for non-stock items furnished on
request for specified quantity.
Tube Size | Additional Number Of Turns From Hand-tight |
3/16 | 2-1/2 |
1/4 | 3 |
3/8&1/2 | 4 |
5/8&3/4 | 3-1/2 |
