Prod Model: |
MHS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
SS304, SS316 |
Application: |
as Catalyst Used in Automobile/Motorcycle |
Cell: |
100-600cpsi |
Thickness(mm): |
0.04-0.1 |
Width(mm): |
10-250 |
Max Working Temperature: |
1100°c |
Max Service Temperature: |
1250°c |
Body Material: |
Steel |
Discharge Standard: |
Euro V |
Certification: |
TS16949 |
Component: |
Catalytic Converter |
Product Description

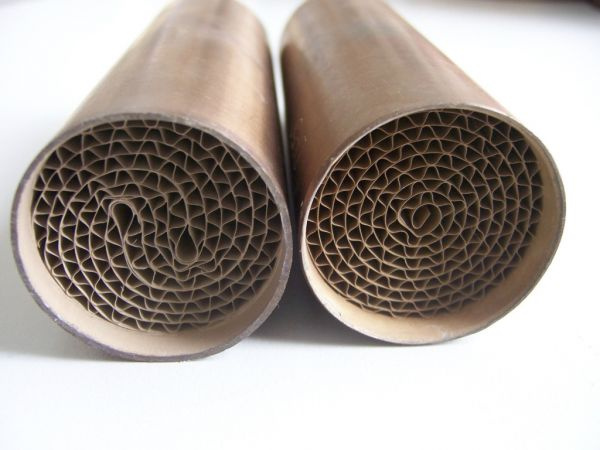

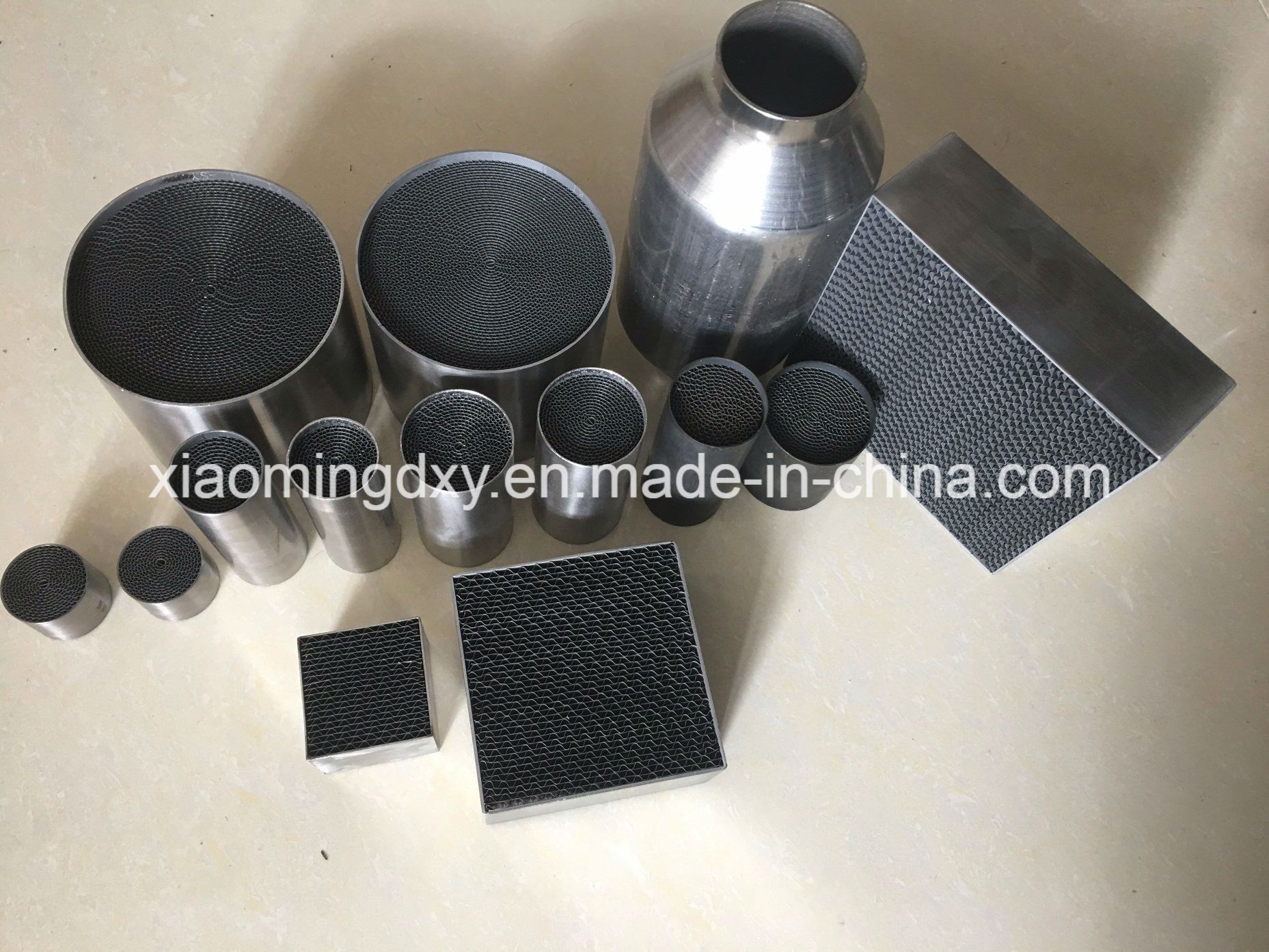

Honeycomb Metal Substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. We can make 100CPSI, 200CPSI, 300CPSI, 400CPSI and 600CPSI honeycomb metallic substrate in various shapes, such as round, oval, racetrack and other customized shapes. We constantly improve the quality and service, our products get high reputation from customers.
We mainly produce Metal Catalytics and Ceramic Catalytics for Auto and Motorcycle exhaust system:
Precious Metal: PT/Pd/Rh--Ducati/Harley
Wall Material: Cordierite/ Stainless
Coating Material: Al2O3 and rare earth oxygen storage materials
Usage: For exhaust system of auto engine, like Honda, Suzuki, Toyato, etc. And Diesel engine, like farm machinery and construction machinery: Tiller, Harvester, Rice transplanter, Planter, Rice mill, Weeder, Thresher, hoisting machinery, excavator, Reinforced concrete machinery.
Durability: Ceramic catalyst: 80, 000 KM/ Metal catalyst: 100, 000 KM
Specification: Cylinder shape, "T" series (one hole)/ "S" series (Two holes)/ three-holes
Size: Dia110mm~155mm, Hight: 40mm~150mm, Cell: 100~600cpsi
Like: Dia110*110(Inner hight 80)mm/ 200cpsi
Dia120*130(Inner hight120)mm/ 400cpsi
Advantages:*High temperature resistant
*Excellent and stable double-coating technology
*Excellent resistance to sulfur poisoning properties
*Meet the Standards European II ~ Europe V emission standard, EPA, CARB standard
*Corrosion resistant
*High durability performance
*Can be specialized designed for the customers various vehicle type
Substrate | Mantle | 430/436/441/444 |
Honeycomb | Fe-Cr-Al |
Brazing Material | BNi5 |
Shape | Shell size(mm) | Core size(mm) | Cell density (CPSI) |
Rotundity | Φ 30 × 22 | Φ 28 × 20 | 100/200/300/400 |
Rotundity | Φ 35 × 20 | Φ 33 × 20 | 100/200/300/400 |
Rotundity | Φ 35 × 30 | Φ 33 × 30 | 100/200/300/400 |
Rotundity | Φ 35 × 40 | Φ 33 × 40 | 100/200/300/400 |
Rotundity | Φ 35 × 50 | Φ 33 × 50 | 100/200/300/400 |
Rotundity | Φ 35 × 60 | Φ 33 × 60 | 100/200/300/400 |
Rotundity | Φ 35 × 70/100/130 | Φ 33 × 60/90/120 | 100/200/300/400 |
Rotundity | Φ 42 × 70/100/130 | Φ 40 × 60/90/120 | 100/200/300/400 |
Rotundity | Φ 45 × 70/100/130 | Φ 43 × 60/90/120 | 100/200/300/400 |
Rotundity | Φ 63,5 × 85/100/130 | Φ 60,5 × 74,5/90/120 | 200/300/400 |
Rotundity | Φ 73 × 70/100/130 L | Φ 70 × 60/90/120 | 200/300/400 |
Rotundity | Φ 93 × 70/100/130 | Φ 90 × 60/90/120 | 200/300/400 |
Rotundity | Φ 100,3 × 100/130 | Φ 98,3 × 90/120 | 600 |
Rotundity | Φ 144 × 150/152,4 | Φ 142 × 140/142,4 | 200/300/400 |
Rotundity | Φ 190 × 200 | Φ 188 × 190 | 200/300/400 |
Rotundity | Φ 420 × 100/130 | Φ 416 × 90/120 | 300/400 |
Race track | 123 × 63 × 85 | 120 × 60 × 75 | 200/300 |
Race track | 123 × 63 × 100 | 120 × 60 × 90 | 200/300 |
Race track | 78,5 × 52 × 104 | 76,5 × 50 × 90 | 200/300 |
