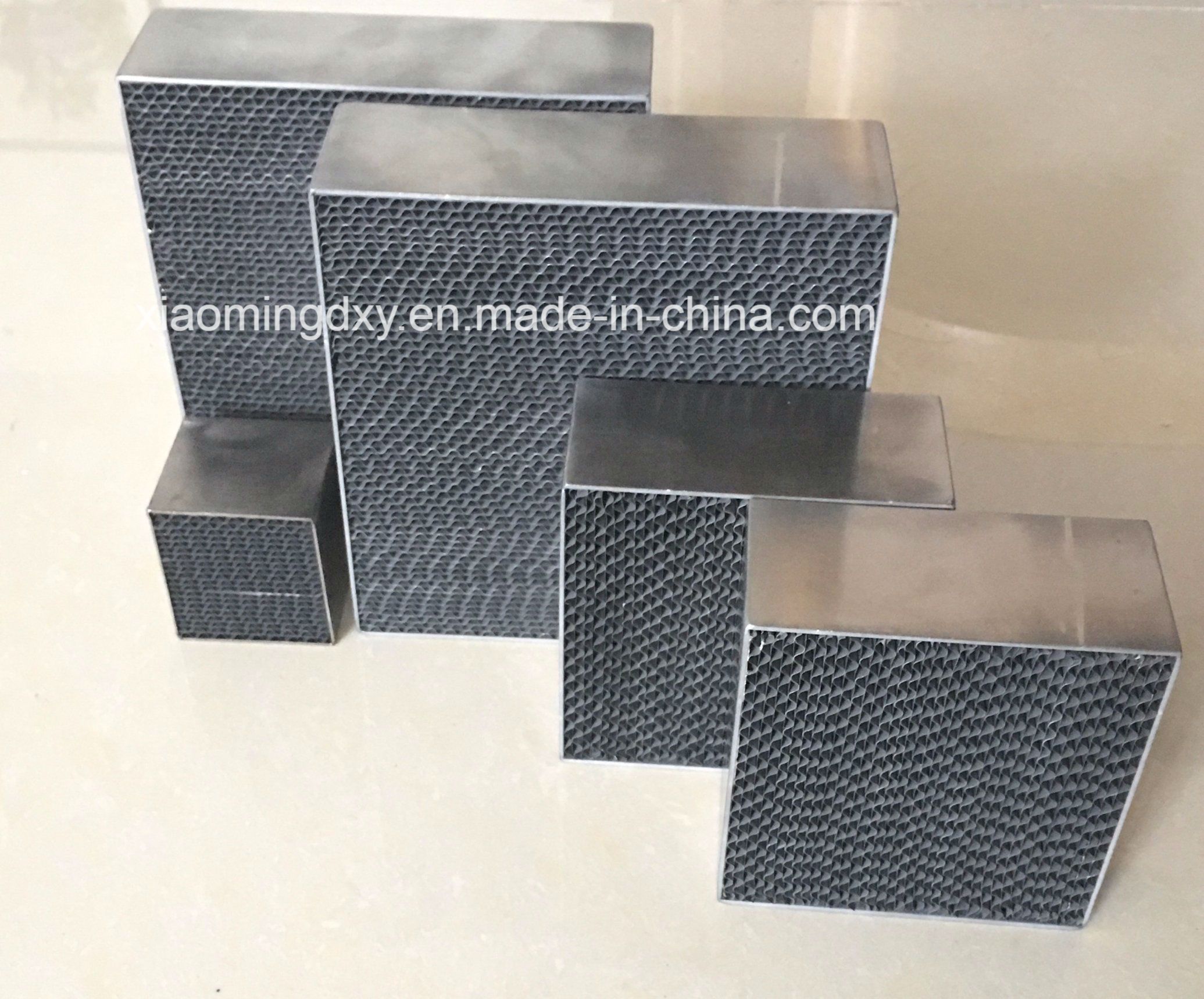

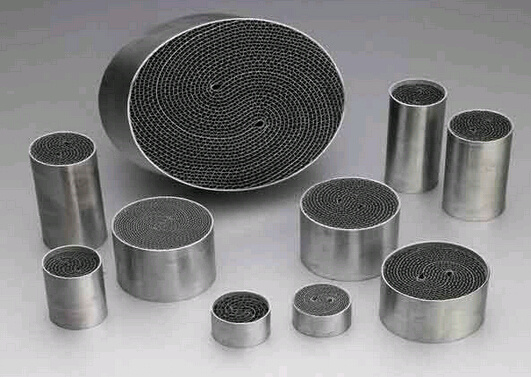

We mainly produce Metal Catalytics and Ceramic Catalytics for Auto and Motorcycle exhaust system,
-- Precious Metal: Pt/Pd/Rh--German Heraeus / Johnson Matthey
Wall Material: Cordierite/ Stainless
Coating Material: Al2O3 and rare earth oxygen storage materials
-- Usage: for exhaust system of auto engine,like Honda, Suzuki, Toyato, etc.
And Diesel engine, like farm machinery and construction machinery: Tiller, Harvester, Rice transplanter, Planter, Rice mill, Weeder, Thresher, hoisting machinery, excavator, Reinforced concrete machinery.
-- Durability-- Ceramic catalyst:80,000 KM/ Metal catalyst: 100,000 KM
- Specification--Cylinder shape, "T" series(one hole)/ "S" series (Two holes)/ three-holes
-- Size: Dia 110mm~155mm, Hight:40mm~150mm, Cell: 100~600 cpsi.
like: Dia 110*110(Inner hight 80)mm/ 200 cpsi.
Dia 120*130(Inner hight120)mm/ 400 S
-- Can be used for Honda, BMW, Buick,,,,,,,
-- Above is part of our metal catalysts, more sizes and Spec. can be customized to your engine.
Advantages:
1. High temperature resistant
2. Can be specialized designed for the customers various vehicle type
3. Excellent and stable double-coating technology
4. Excellent resistance to sulfur poisoning properties
5. Meet the Standards European II ~ Europe V emission standard, EPA, CARB standard.
Application :

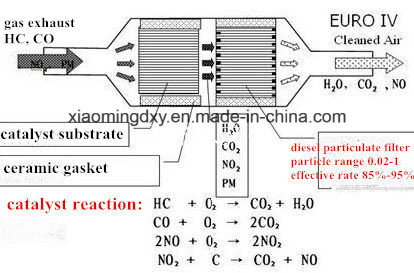

For light duty petrol vehicls exhaust purification ,through the precious metals and earth catalyst,the exhaust HC.CO.and NOx and other harmful components into harmful N2.CO2. and H2O. so that emission of State 3. 4 state standards.
| | Diameter (mm) | Hight(mm) | Inner Higtht ( mm) | Length (mm) | Width (mm) | Cell/ cpsi |
| | 110 | 110 | 80 | | | 200 |
| | 90 | 95 | 90 | | | 300S/400S |
| | 100 | 100 | 90 | | | 400S |
| Size | 120 | 130 | 120 | | | 400S |
| | 100 | 120 | 110 | | | 400 three holes |
| | 100 | 102 | 100 | | | 300 |
| | 110 | 150 | 105 | | | 600 three holes |
| | 155 | 75 | 75 | | | 400S |
| | | | | | | |
| | | 40 | 30 | 130 | 90 | 300/400 (two holes) |
| | | 102 | 92 | 150 | 88 | 400(two holes) |
| | | | | | | |
| Mark | Above is part of our metal catalysts, more sizes and Spec. can be customized to your engine |
| Our Certifications | SGS, ISO9001:2008, ISO14001, TUV, CARB |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
