| Prod Model: |
MHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SS304, SS316, Fe-Cr-Al Alloy |
| Application: |
as Catalyst Used in Automobile/Motorcycle |
| Cell: |
100-600cpsi |
| Thickness(mm): |
0.04-0.1 |
| Width(mm): |
10-250 |
| Max Working Temperature: |
1100°c |
| Max Service Temperature: |
1250°c |
| Body Material: |
Steel |
| Discharge Standard: |
Euro V |
| Certification: |
TS16949 |
| Component: |
Catalytic Converter |
Product Description
We have successfully developed many types of auto Catalytic Converter, which are suitable for cars in all types and meet the strict emission standard. As customers' requests, all kinds of Catalytic Converter can be explored and produced. The Catalytic Converter can eliminate 90% amount of the three main pollutants (hydrocarbon, carbon monoxide and nitrogen oxide).
About EURO 4 auto&motorcycle exhaust system metal honeycomb metallic substrate catalytic. We broke into the field of research and produce of meal honeycomb catalyst and ceramic honeycom catalyst for auto, motorcycle& general engine exhaust, including gasoline engine and diesel engine. With the introduction of technology advanced equipments, Depurace win the trust of customers in a short time, and coordinated several enterprises of motorcycle, general gasoline engine and diesel engine to get certifications like EPA, CARB and E-mark.

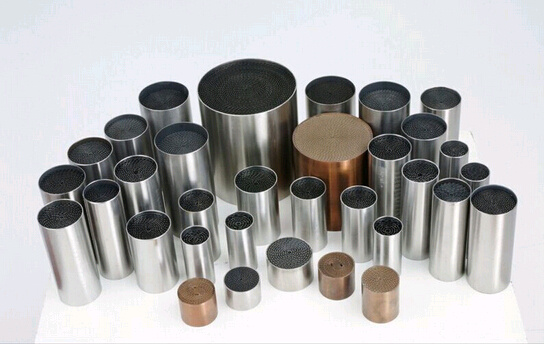

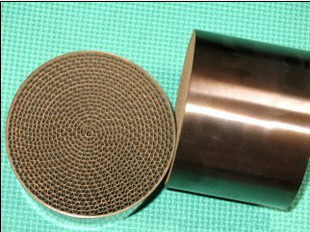

Round & Ovel metallic substrate Motorcycle three-way catalytic converter
*High quality of 409 stainless steel shell(ss304 is also avaialbe)
*400cell/sqt(300cells, 600cells, 800 cells are also available)

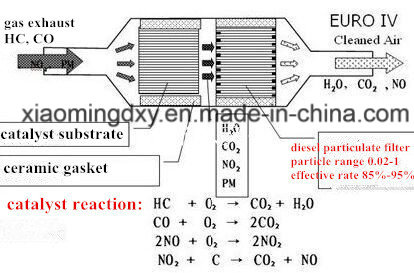

*Inside catalyst (Pt, Pd, Rh+rare earth) coating on honey combed metal substrate
*Function: Reduce hamful emmision( CO, CH, NOx) from motor vehcle more than 97%
*Meet Euro3 emmision standard, and warranty life is 3year/80000 kms
Standard of precious metal coating
*EUROII standard
*EUROIII standard
*EUROIV standard
*EUROV standard
*We can provide the product as per customers' requests
Features:*Low thermal expansion
*High surface area
*Long-term durability performance
*Low pressure drop
*Good thermal shock resistance
*Combined with the EGR systems to help different vehicles to satisfy emission standard
*Low light-off temperature
*Excellent adhesion between wash-coat and susbstrate with netty structure
*Excellent quality and competitive price
| Test Result for EU- III | Emission Result, g/km |
| HC | CO | NOx |
| EU- III Standard | 0.8 | 2 | 0.15 |
| Displacement | Item | | | |
| 4 Stroke 150CC Scooter | Original Emission | 1.8 | 10.68 | 0.24 |
| With Two Catalytics | 0.19 | 1.74 | 0.09 |
| 4 Stroke 125CC Scooter | Original Emission | 2.72 | 7.36 | 0.7 |
| With Two Catalytics | 0.14 | 0.94 | 0.13 |
| 4 Stroke 110CC Cub | Original Emission | 0.43 | 2.47 | 0.12 |
| With One Catalytic ( without SAI ) | 0.21 | 1.16 | 0.04 |
| 4 Stroke 150CC EFI Engine | With One Catalytic ( without SAI ) | 0.23 | 1.08 | 0.1 |
|
| 4 Stroke 300CC EFI Engine | With One Catalytic ( without SAI ) | 0.19 | 1.4 | 0.11 |
| Shape | Shell size(mm) | Core size(mm) | Cell density (CPSI) |
| Rotundity | Φ 30 × 22 | Φ 28 × 20 | 100/200/300/400 |
| Rotundity | Φ 35 × 20 | Φ 33 × 20 | 100/200/300/400 |
| Rotundity | Φ 35 × 30 | Φ 33 × 30 | 100/200/300/400 |
| Rotundity | Φ 35 × 40 | Φ 33 × 40 | 100/200/300/400 |
| Rotundity | Φ 35 × 50 | Φ 33 × 50 | 100/200/300/400 |
| Rotundity | Φ 35 × 60 | Φ 33 × 60 | 100/200/300/400 |
| Rotundity | Φ 35 × 70/100/130 | Φ 33 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ 42 × 70/100/130 | Φ 40 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ 45 × 70/100/130 | Φ 43 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ 63,5 × 85/100/130 | Φ 60,5 × 74,5/90/120 | 200/300/400 |
| Rotundity | Φ 73 × 70/100/130 L | Φ 70 × 60/90/120 | 200/300/400 |
| Rotundity | Φ 93 × 70/100/130 | Φ 90 × 60/90/120 | 200/300/400 |
| Rotundity | Φ 100,3 × 100/130 | Φ 98,3 × 90/120 | 600 |
| Rotundity | Φ 144 × 150/152,4 | Φ 142 × 140/142,4 | 200/300/400 |
| Rotundity | Φ 190 × 200 | Φ 188 × 190 | 200/300/400 |
| Rotundity | Φ 420 × 100/130 | Φ 416 × 90/120 | 300/400 |
| Race track | 123 × 63 × 85 | 120 × 60 × 75 | 200/300 |
| Race track | 123 × 63 × 100 | 120 × 60 × 90 | 200/300 |
| Race track | 78,5 × 52 × 104 | 76,5 × 50 × 90 | 200/300 |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
