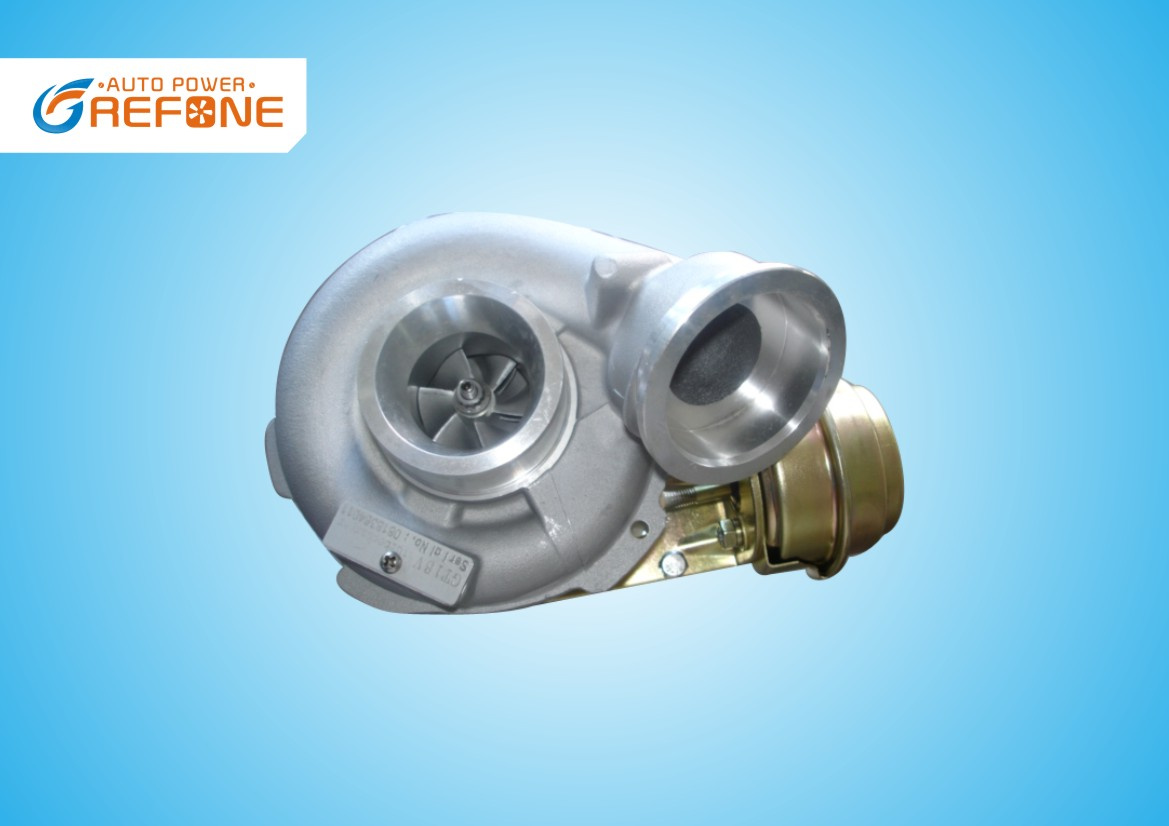

Δ GT1852V 709836 turbocharger specs
| Part Number |
709836-5004S
|
| Previous Version |
709836-0001, 709836-0003, 709836-0004
|
| OE number |
6110960899, A6110960899, A6110961699, A6110961599
|
| Year |
99-06
|
| CHRA |
703890-0045
|
| Turbo Model |
GT1852V
|
| Engine |
OM611, OM611 DE22LA
|
| Displacement |
2.2L, 2148 ccm
|
| KW |
80/95/105
|
| Angle α (compressor housing) |
69
|
| Angle β (turbine housing) |
238.5
|
| Bearing Housing |
722282-0013
|
| Turbine Wheel |
704580-0001
|
| Comp. Wheel |
436131-0021
|
| Back plate |
701335-0003
|
| Heat shield Number |
433112-0001
|
| Repair Kit |
732252-0001
|
| Thrust Kit |
732248-0003
|
| Nozzle Ring Assemblies |
704013-0013/709835-0001
|
| Turbine Housing AR |
VNT2
|
| Settings Wastegate (pressure) |
0.297 - 0.303 bar
|
| Settings Wastegate (lift shaft) |
1.5 - 3.4 mm
|
Δ Application
99-2006 Mercedes Truck Sprinter I 211CDI/311CDI/411CDI with OM611 DE22LA EngineΔ What we do
Refone Auto Power Co., ltd is professional manufacturer and exporter of auto spare parts turbochargers, turbo parts&accessories and other engine pars.
Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service
We are looking forward to build long business relationship with international friends.
Δ Why choose us
1.We have been in turbochager business for many years to meet the customer various reuqest of turbocharger and parts ,with the most competitive price & quality.
2.All turbocharger and cartridges balance tested by the "TURBO TECHNICS" imported from the UK.
3.Developing new turbo or parts according to customer's samples
4.Sample order accepted and we have warranty for official orders.
Δ GT18 turbochargers
P/N
| OEM No. | Application |
717625-5001S
717625-0001
| 24445061
860050
860098 | 2002- Opel Astra with Y22DTR Engine 2002- Opel Zafira with Y22DTR Engine |
705204-0001
705204-0002
705204-5002S
717626-0001
|
860055
24443096
860051
24445062
9202611
24418170
| 2002-2004 Opel Signum 2.2L DTI
2002-2004 Opel Vectra C 2.2L DTI
2000-2005 Saab 9-3 I 2.2L TiD
2000-2005 Saab 9-5 I 2.2L TiD
Engine : Y22DT |
727477-5006S
727477-5007S
727477-5002S
727477-0002
727477-0005
| 144115M310
14411-AW400
14411-AW40A
14411AW400EP | 2003-07 Nissan Almera, YD22 engine
2003-07 Nissan Primera, YD1 engine
2003-07 Nissan X-Trail, YD22 engine
2003- Nissan Tino, YD1 engine |
778794-5001S
726698-0003
778794-0001
|
6110961699
A6110961699
6110961599
A6110961599
A6110960899
|
03-06 Mercedes Benz(Brazil)
2000-06 Mercedes Sprinter I 211CDI/311CDI/411CDI
2000-06 Mercedes Sprinter I 213CDI/313CDI/413CDI
Engine: OM611
|
709835-5002S
704412-0001
709835-0001
709835-0002
| 6110960399
A6110960399
6110960799 | 1999-03 Mercedes E-Class 220 CDI (W210)
1999-03 Mercedes E-Class 200 CDI (W210)
Engine : OM611 ,2.2L |
718089-5008S
718089-0001, 718089-0002, 718089-0003, 718089-0004, 718089-0005, 718089-0006, 718089-0007, 718089-5007S
| 8200267138, 8200447624A, 7701475282, 8200447624, 7711134877, 8200683860, 7701476620, 8200267138A, 8200221363 | 2003-06 Renault Vel Satis dCi
2003-06 Renault Espace dCi
2004-06 Renault Laguna dCi
2001-06 Renault Avantime
Engine: G9T 700, G9T 702 ,2.2L |
