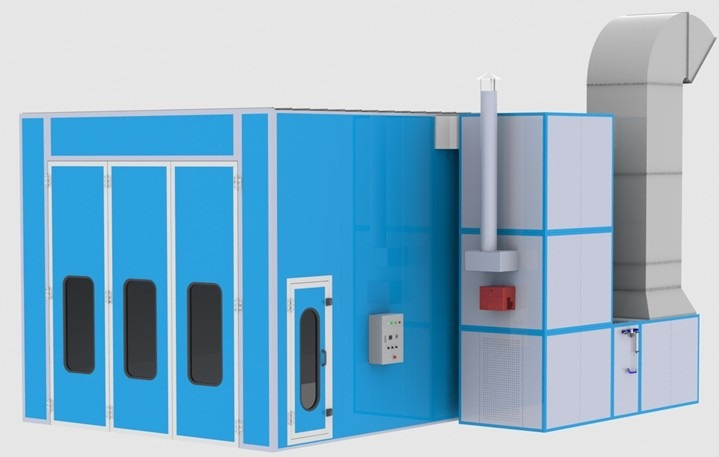

Medium Bus Spray Booth--S860

Name: Medium Bus Spray Booth--S860
Brand: ibuyautoparts.com
SKU: 687964052
Availability: InStock
Rating: 4.7 (46 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S860
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Condition:	New

Product Description

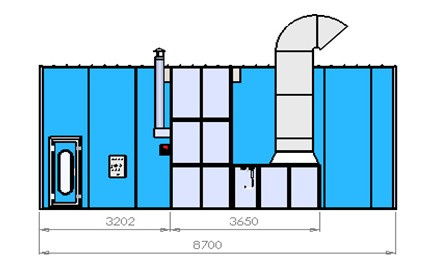

Interior Size--------------8600×4000×3500mm(L×W×H)

Exterior Size-------------8700×5550×4020mm(L×W×H)

Wall------------------------50mm thick EPS Panel, Width 1150mm

Door-----------------------3 Front Doors with safety glass window,3100×3400mm(W×H), 1 safety door with glass window 650×1850mm(W×H)

PIT-------------------------Have pit, One row grid at the middle and fiber filter under the grid

Air Inlet--------------------One 11W motor direct drive,fan capacity 32000 m3/h,

Air Exhaust---------------One 11KW motor direct drive,fan capacity 32000 m3/h,2 Straight Ducts,one of each 90 degree and 45 degree elbow

Heating System----------Italian RIELLO G20 Diesel Burner,Stainless Steel Heating exchanger,Spray and baking shifted by pneumatic organ

Filtration System----------Pre filters; Ceiling Filters and Exhaust Filters

Lightening System--------Ceiling tilted lights 10 Units,each unit 4×40w; Side Lights 12 units,each unit 2×20w, Brightness≥1200Lux

Electric Control-------------Standard control panel, paint at constant temperature; Baking Automatic

Power-------------------------24.2Kw,powered by:380V(220V)/50Hz
