| Prod Model: |
L3E |
| Type: |
Flatbed-type |
| Max. Lifting Capacity: |
3.5T |
| Certification: |
ISO |
| Condition: |
New |
Product Description
Specifications| Model | L2E | L3E | M1E | M2E | B1E | B2E |
| Platform length | 5200mm | 5500mm | 5500mm | 6100mm | 6100mm | 6500mm |
| Platform width | 2100mm | 2100mm | 2236mm | 2236mm | 2236mm | 2236mm |
| Lifting way | Tiltable lift | Tiltable lift & Parallel lift |
| Working height | 500mm | 380-1020mm |
| Pulling power | 10 tons |
| Working range | 360 degrees |
| Lifting capacity | 3500kgs |
| Weight | 2200kgs | 2500kgs | 2700kgs | 3000kgs | 3100kgs | 3300kgs |
| Power | 380V,3phase/220V,1phase |

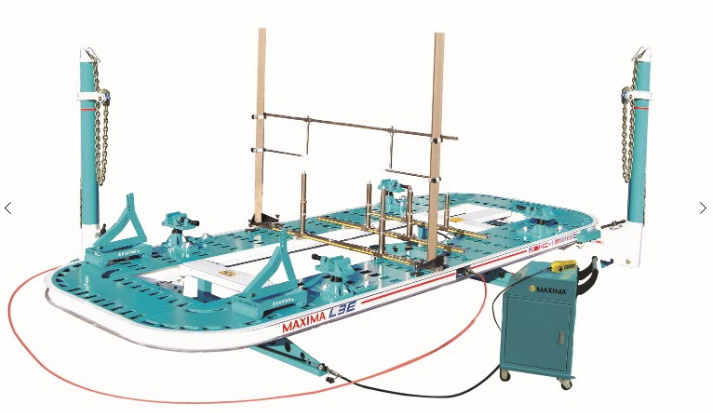

MAXIMA Car Bench L3E
Platform length: 5500mm
platform width: 2100mm
Platform height: 500mm
Max. pulling power of the tower: 10 T
Working range: 360°
Max. hydraulic pressure: 1.5kw
Max. lifting capacity: 3500kg
Weight: 2700kg
Voltage 380V,3phase/220V,1phase
Features:
There's only one electric-hydraulic pump to control the up&down of the platform,
RSJ and pulling towers.
The equipment is highlighted by its rigid platform welded by milled steel boards.
The vehicle can drive on and off the patented hydraulic tiltable platform easily.
The pulling towers with patented round collar glide with ease around the entire
equipment.
The hydraulic system has large pulling capacity, long lifespan and low malfunction.
The patented Universal Clamp can anchor all kind of chassis rock-solid.
The platform can work well with all kinds of measuring systems.
ISO9001:2008 certified.Company Profile:
Founded in 1992, MIT Group has been focusing on automobile after-sales markets over the years, and has grown to be the leader in the industry, supplying state-of-the-art products and services to our esteemed clients all over the world. The Group's brands include MAXIMA, Bantam, Welion, ARS, and 999.
As a subsidiary under MIT Group, MAXIMA is a professional manufacturer of auto-body repair systems and heavy duty column lifts, ranking as No.1 in the industry in China over the years, as taking up 65% of Chinese market and shipping to 40+ countries overseas. Proudly, MAXIMA is the unique company in China that can provide the most professional innovative solutions, technical development, training and customer support for auto-body repair and maintenance. We will look forward to building business cooperation with distributors and customers worldwide.

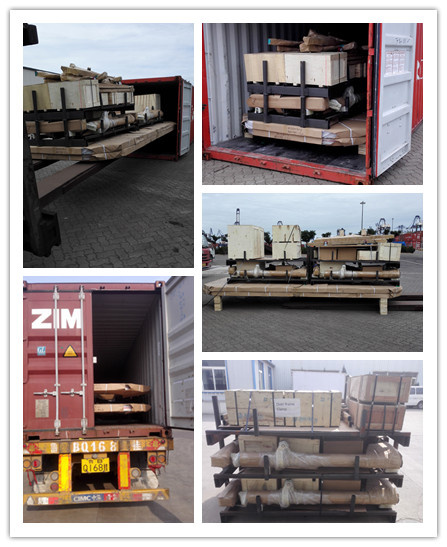

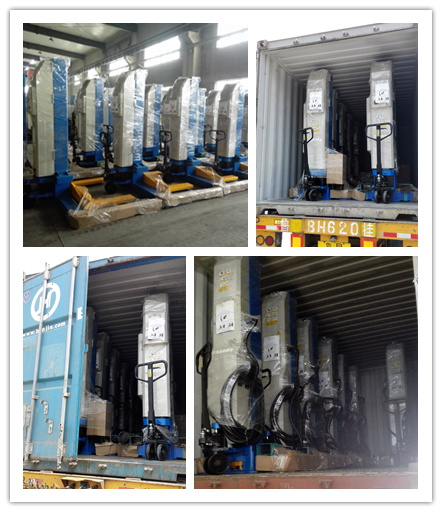

Package & Delivery1. Car Bench
2. Heavy Duty Column Lift

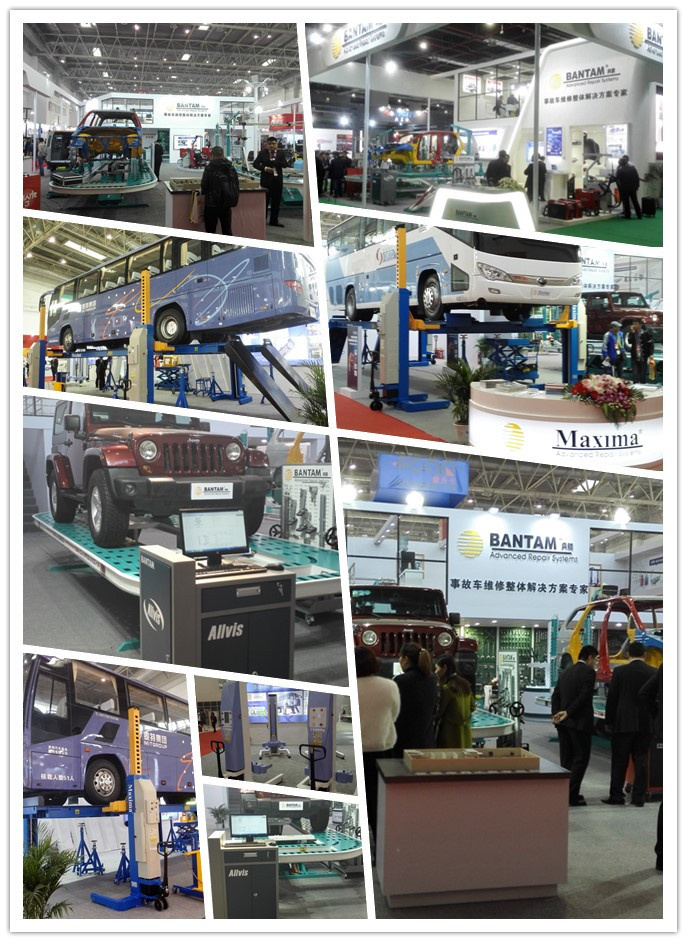

Customers & Exhibitions
Qualifications & Certifications (ISO, CE, ALI certified)
FAQQ1: What is your terms of payment?A: 30% TT as deposit upon order confirmation, 70% TT as balance before delivery. Q2: What is your standard leadtime?A: For car bench, the standard leadtime is 30 days after order confirmation.For electronic measurement system, the standard leadtime is 20 days after order confirmation. For mobile column lift, the standard leadtime is 40 days after order confirmation.For big platform and platform lift, the standard leadtime is 50 days after order confirmation. Q3: What delivery terms do you offer?A: EXW, FOB, CFR, CIF, DDU. Q4: Do you test all your products before delivery?A: Yes, all products are 100% tested before delivery. Q5: Why do we choose MAXIMA?A: MAXIMA is ISO certified manufacturer, CE certified, and the only one ALI certified brand in China, offering best quality products at a very competitive price.We offer 2 years of free warranty for all products; we have an overseas after-sales engineer ready to fly to any site upon emergent request from customer. Q6: What exhibitions do you attend?A: Inside China, we attend AMR Beijing in Mar. and Automechanika Shanghai in Dec.In overseas, we attend Autopromotec Bologna in May and Automechanika Frankfurt in Sep.Warmly welcome to visit our factory in Yantai and our booth in the shows. Q7: Do you have any branch in overseas?A: We have a branch office in California, USA, covering the sales of North American countries including U.S, Canada, Mexico etc. MAXIMA U.S has ready stock and will make delivery to North American countries immediately upon order confirmed.For all the rest countries and regions, we will do build-to-order, sales and delivery from MAXIMA China headquarters.Contact with us:
Please feel free to contact with us at any time via email or call, contact as follows:
Mr. Aaron Wu
86-535-6105064
Found in 1992, MIT group / MAXIMA has successfully become the leading supplier of auto aftersales services and equipments, and we are supplying to VW, GM, Honda, CITROEN, Toyota, Nissan, Zhonghua and some other car manufacturers.
In the past scores of years, MAXIMA has become No. 1 seller in domestic market by sharing 65% of total market, and also exporting to more than 35 countries, such as USA, UK, Spain, Australia, Norway, Brazil, South Africa...
As the first company in this industry passed the ISO 9001 certification in China, Maxima takes the advantage of state-of-the-art production line, world-class inspection systems, experienced R&D working team and perfect quality control management which set up a great and solid basis for us to pursue our aim: Providing the world-class auto repair equipments for our customers all over the world.
