1. Product Introduction

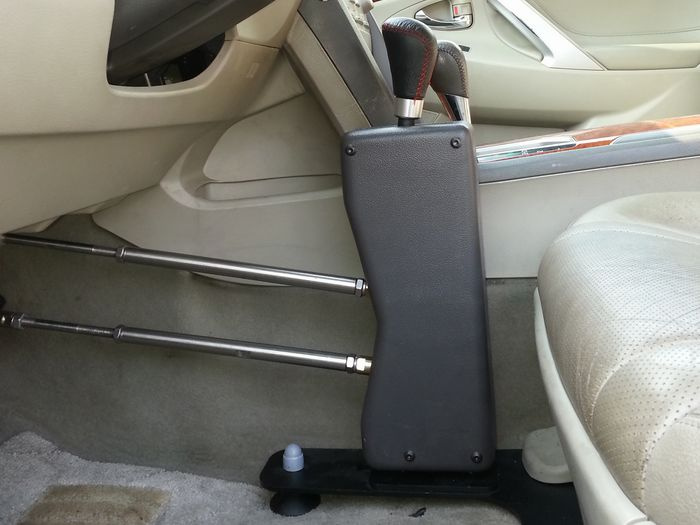

Ø This manual control system is a kind of equipment which mounted around driver's chair and helps the disabled to drive car totally by hands.
Ø The working principle is to shift the operation of brake and accelerator to hand through two control lever.
Ø There is wheel power handle in standard parts list, which is more convenient for the driver to control steering wheel by left/right hand and control brake and accelerator by right/left hand.
Advantages:
Ø Easy installation and operation
Ø Specially designed for the disabled
Ø Convenient for the disabled to drive car totally by hands
Parts List:
A whole set of manual control system should include the below parts:
Ø Manual control handle 1 set;
Ø Accelerator control lever 1 set;
Ø Brake control lever 1 set;
Ø Wheel power handle 1 PCS;
Operation points: Push manual control handle forward to brake car; Push manual control handle backward to accelerate.
Operation Steps
Start car
1. Seat in driver's chair and fasten the safety belt;
2. After starting car, push manual control handle backward one to two times to check whether accelerator works well; And push manual control handle forward one to two times to check whether brake can work well;
3. Put down brake (brake car) by left hand, make the gear handle to S(driving) by right hand, and then control brake handle by right hand, hold steering wheel (wheel power handle) by left handle.
Driving car
1. During car running, hold steering wheel near power wheel handle, because it is convenient to use power wheel handle to change driving direction when necessary.
2. Hold the manual control handle by right hand, and adjust accelerator (push accelerator control handle backward) according to driving speed.
3. Push manual control handle forward if necessary. Push it fast to brake fast, push it slow to brake slowly.
4. During car running, right hand can hold steering wheel or manual control handle.
5. When back the car, make the gear handle to R (back car) by right handle, and then hold steering wheel (wheel power handle) by left hand, hold manual control handle by right hand. Later operation is same as starting car.
6. The operation of light, horn, wiper, air container and sound is nothing different.
Special Warningduring car running, the manual control handle and steering wheel(wheel power handle) should be always under control. So manually control window and rearview mirror are not allowed during driving.
Stop Car
1. After stop car at right position, tension hand brake;
2. Make gear handle to P
Check and make sure every electrical part is shut down.
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
