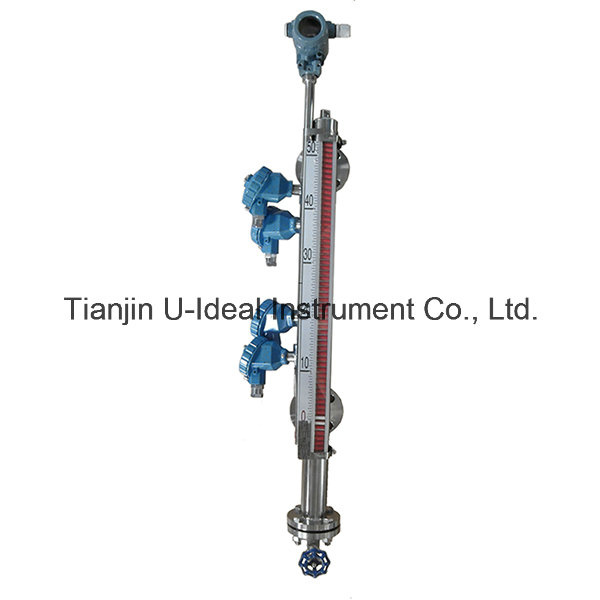

Magnetic Flap Bi-Color Floater Level Gauge Meter with Heating Jacket
| Price: |
US $ 260/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
bi-color level gauge Local flag display and remote transmitter with steam heating jacket1) Measure ranges: 0~15000mm
2)measuring accuracy: ± 5mm
3) Nominal pressure: PN1.0~10MPa
4)fluid density: ≥ 0.45g/cm3
5)fluid temperature: -20~450º C
6)4~20mA equipment
Measuring range 0~5000mm, when using
Multi sets of same model magnetic floater liquid level gauge at the same time, the 4~20mA part can connect in series, so please indicate when you order.
7) Output signal for 4~20mA: 4~20m
8) Max. Distance for 4~20mA: 3km
9) 4~20mA explosion-proof class: ExiallCT4
10)explosion-proof soft tube connection inside screw thread 3/4× 1.5 or 1/2× 1.5
Fuel tank level indicator/ magnetic level indicator with magnetostrictive level transmitter
The cage is flanged to the tank & the level is indicated on a Strip which consists of magnetic bi-colour rollers. The floats are available in various metallurgies like SS316, Titanium, PVDF, Polypropylene and PVC.
- Used for high temp and pr applications or if glass parts cannot be used for safety reasons.
- Applications in Chemicals, Pharmaceutical, petrochemical, refineries, oil and fuel tanks etc.
- Available in side andtop mounting versions
- Capsule Indicator in glass tube or magnetic bi-color rollers
- SS 304, SS 316, PTFE, PP, PVC & PVDF Float & Cage Material
- Max. C.C. Distance : 6000 mm, greater lengths on request.
- Flanged connection drilled ot ASA 150# or other on demand
- Pr 20 Kg/cm2 for SS & 3 Kg/cm2 for PP, PVC & PVDF, Higher Pr rating on demand
- Temp 450oC for SS, 80oC for PVDF, 60oC for PVC, 50oC (Max) for PP
- Specific Gravity : Min 0.5
- AI/SS etched scale in cm
- +/- 5 mm accuracy

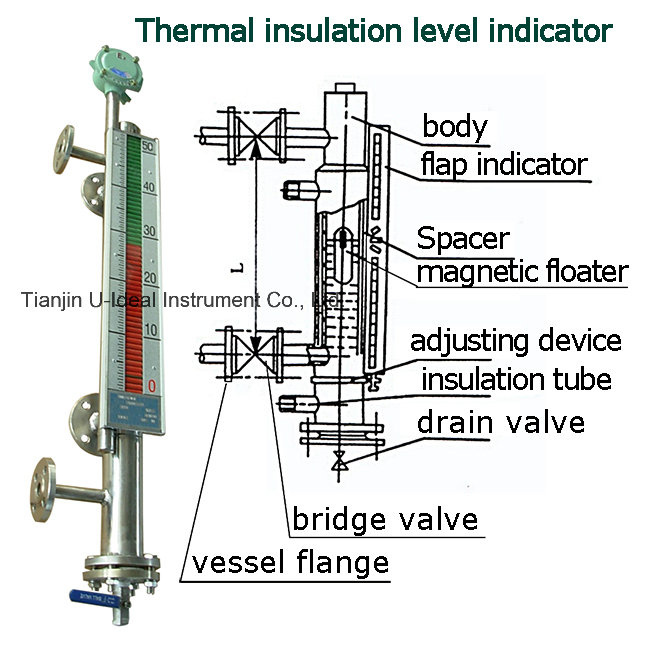

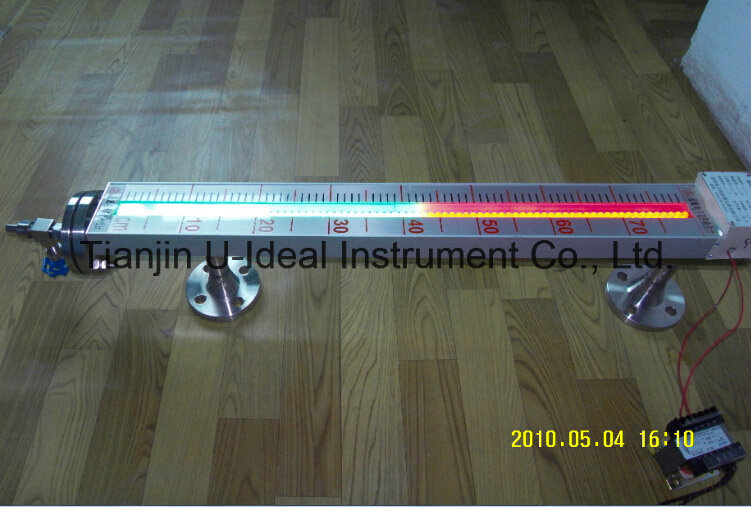

Principle of Operation
These models consists of Red or Black/white magnetic rollers equipped with small rod magnets which are rotated one after another at an angle of 180º by the magnetic field of the permanent magnet put inside the float. The rollers change from white to red on rising level and red to white on falling level. Plastic rollers are suitable for liquid temperature upto 100ºC & Alluminium rollers for temperature upto 250ºC and ceramic rollers for temperature upto 450ºC.
The level in a tank or agitating machine is permanently indicated as a Red or Black column even in the case of power fallure.
In addition, Level Sensing elements can be fixed directly to the float cage, so that-simultaneous, contact less sensing is measured electrically. Electronic Level indicator with set point can be connected with the sensor to have reading in remote. Single or double set point relays can also be provided in the electronic indicator for control purposes.
Magnetic level indicator is for on site level indication, use float as measurement unit, the magnet drive turned column showing the level without energy. It can work from low temperature to high temperature, from vacuum to high pressure, high viscosity, corrosion and so on. It measure the level safely and reliability. Under various environments to measure the liquid, the whole process of measurement without blind spots, display eye-catching, intuitive readings, measuring range.
Products matching upper and lower limit switch output, remote alarm can be realized, limit control.
We are the manufacturer, supplier and exporter of Transparent Level Gauges, magnetic level gauge from Tianjin U-ideal Instrument-China
| UIHC- | C | Side mounted; |
| D | Top mounted |
|
|
| R1 | Standard transmitter 4~20mA current signal (Resolution: 20mm/10mm/5mm); |
| R2 | Standard transmitter 4~20mA and hart; (Resolution: 20mm/10mm/5mm); |
| R3 | Magneticostrictive transmitter 4~20mA with hart |
| R4 | Switch and number; |
| R5 | Both 4~20mA transmitter and switches |
| R6 | No signal output |
|
|
| S | Steam tracing |
| E | Electric heating |
| F | Defrost |
|
|
| D | Drain valve , drain plug |
| DV | Drain valve and Vent valve or plug |
| N | No valve |
|
|
| A | Ambient temperature (0~40ºC) |
| M | -20~180ºC |
| H | High temperature (<400ºC) |
| L | If easy frozen |
|
| S | SS304 or SS316 |
| P | PP (Polypropylene),PVC,PVDF |
| O | Other |
|
| S | Safety environment |
| E | Explostion-proof ExdII BT4 |
| I | intrinsic safety ExibII CT4 |
|
| Measure range: mm |
|
| Fluid density: g/cm3 |
|
| working pressure: MPa |
|
|
| UIHC- |
|
|
|
|
|
|
|
|
|
|
Technical parameters
|
Side-mounted
|
Basic model
|
Jacket model
|
High temperature High pressure model
|
Anti-corrosion model
|
Stainless Steel PTFE lining
|
Economy
|
Measuring range
|
200~6000mm, other sizes can be customized
|
200 ~ 4000mm
|
Working pressure
|
0~4MPa
|
0.6-2.5MPa
|
0.6-32MPa
|
0.6-2.5MPa
|
0.6-1.6MPa
|
Operating temperature
|
-20~200 °C
|
< 520 °C
|
-20~200 °C
|
-20~90 °C
|
Medium Density
|
0.45-2.0g/cm 3
|
0.5-2.0g/cm 3
|
Connection
|
Flange connection: DN20, DN25 or other (According to customer requirements) .
Threaded connections, welded pipe and other technology interfaces optional.
|
Flange Standard
|
HG20592~20635-97, Other flange standards can be customized.
|
Jacket Interface
|
/
|
DN20 or
G1/2" Male
|
/
|
/
|
/
|
Material
|
1Cr18Ni9Ti, 316L
|
Stainless Steel PTFE lining
|
PPR,ABS,UPVC,PVC
|
Optional items
|
Liquid level switches, signal transmission, drain valve, the top vent valve, drain / exhaust bolts.
|
Technical parameters
|
Top-mounted
|
Top-mounted Side display
|
Measuring range
|
200~5000mm
|
0~0.5m or 0~200m (Display can be segmented.)
|
Working pressure
|
0.6-2.5MPa
|
0-1.6MPa
|
Operating temperature
|
≤520 °C
|
-20~500 °C
|
Medium Density
|
0.5~2.0g/cm 3
|
≥0.7g/cm 3
|
Connection
|
Flange DN80, DN100, DN125, DN150.
|
Flange DN150
|
Flange standard
|
HG20592~20635-97, Other flange standards, please specify.
|
Material
|
1Cr18Ni9Ti, 316L
|
Optional items
|
Liquid level switches, signal transmission.
|
| Prod Model: |
UHC-CR1S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optional: |
Liquid Level Transmitter |
| Structure: |
Electric Thermal or Steam Insulation |
| Range: |
0-15m |
| Principle: |
Magnetic Sensors |
