Features

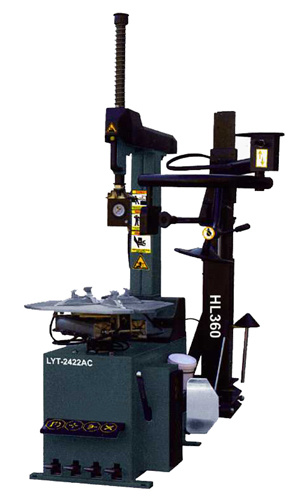

LYT-2422AC+HL360 is the full-automatic tyre changer with advanced configure. Push-pull horizontal arm, tilt back vertical arm, equipped with assistant inflating device and helper HL360, make the operation time saving, safe and easy. It is specially suitable for wide, low-profile, stiff and tubeless tyres. The quality is reliable, suitable for large tyre repair shop.
-Hexangular shaft used S41 mm steel, not easy to distort, ensure the operation of low-profile and stiff tyre more safety.
-The turntable, use δ 15mm steel, the surface of the turntable is chromeplated, wearable and antisepticised.
-The mounting head, used alloy material, ensure the intensity.
-This machine equipped with the protection cover for the mounting head, clamps, lever and bead breaker shoe, to avoid the damage for the aluminum alloy rim.
- The inflating system adopt gauge box, equipped with rubber inflating hose, ensure long working time and safety operation.
-This machine with C configure, C means tubeless tyre inflating device, make the edge of the tubeless tyre connect tightly with the rim, avoid the leakage when inflating.
- This model can upgrade, the middle-grade helper HL360 with rail-style slideway is optional according to customers demand, the roller on this helper is fixed, this helper make the operation easy.
-Full-automatic tyre changer with push-pull horizontal arm and tilt back vertical arm, pneumatic locking, instead of semi-automatic and manual locking method, improve the working efficiency.
| Model | LYT-2422AC |
| Motor power | 1.1kw/0.75 kw |
| Power supply | 100 V / 110 V / 200 V-3 ph / 220 V / 230 V / 380 V-3 ph / 415 V-3 ph |
| Operation pressure | 8-10 bar |
| Max.wheel dia | 441120 mm |
| Max. wheel width | 14360 mm |
| Rim clamping from outside | 10-21 |
| Rim clamping from inside | 12-24 |
| Bead-breaker force | 2500 kg |
| Noise | 70 dB |
