Luxurious One-Piece Column Clear Floor Two Post Car Lift Truck Ce-Stop Function with Safety Alarm Beep Would Automatically Warn

Luxurious one-piece column clear floor two post car lift truck CE-STOP function with safety alarm beep would automatically warn

Product Description
Basic parameters of the equipment:




TLT235SCA(U) Features

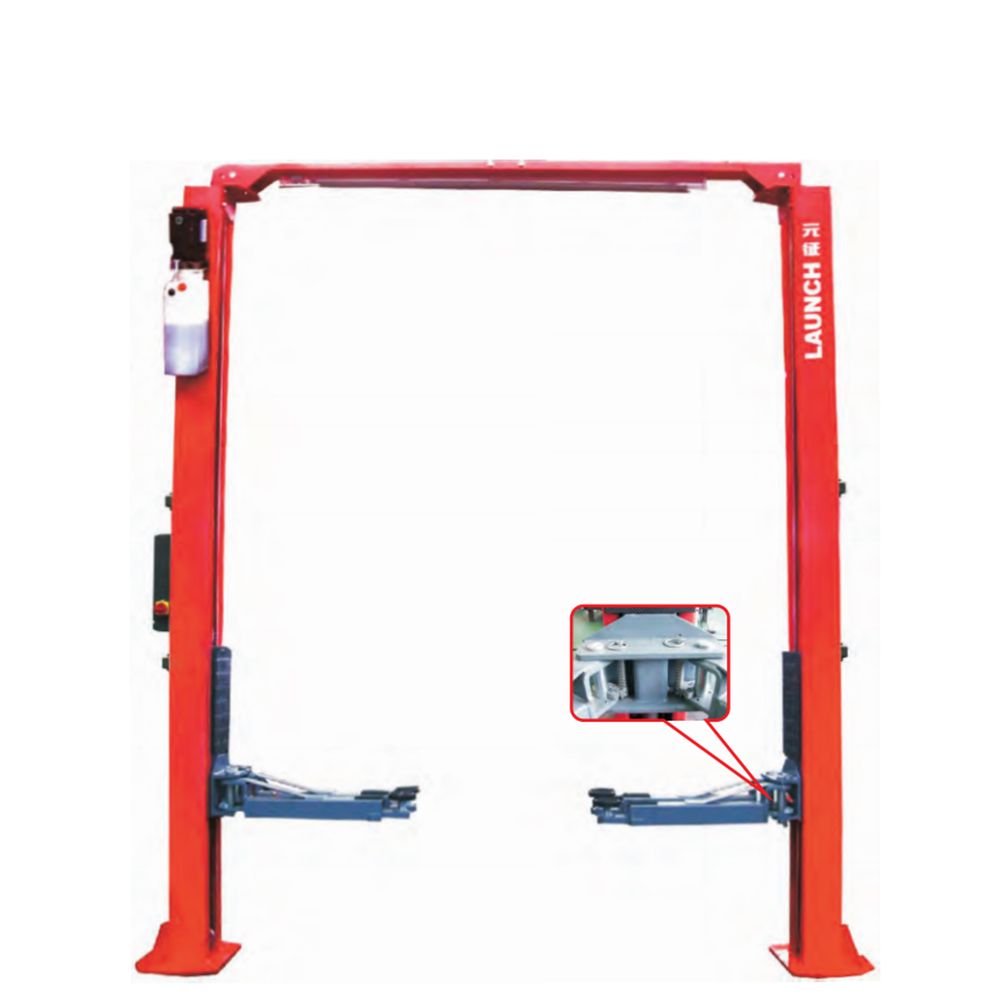

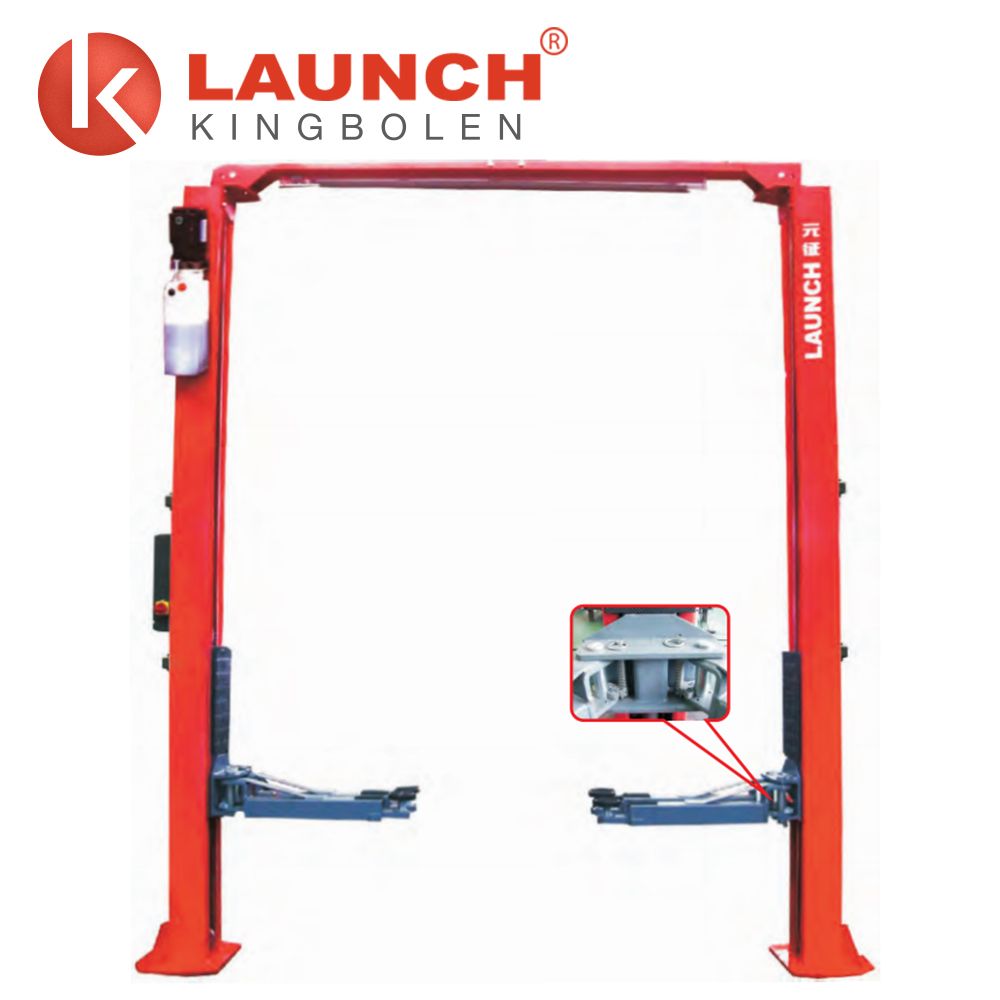

One-piece column design, with decent and elegant appearance and convenient for installation.
Fully automatic unlocking safety device is adopted for operating only with UP/ DOWN button.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
24V low voltage control box(IP54 level)ensures operator's safety.
Cylinder travel limit switch effectively protects cylinder and extends its lifespan.
Emergency lowering valve can be manually operated to make lift lower safely in case power is off.
Anti-explosion valve is deployed to make lift slower or stop lowering for the case of oil pipe explosion ,thus protects operator's safety and vehicle not being damaged.
CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to about 250mm high from ground.
Door rubber pad protects car door from being damaged in collision.

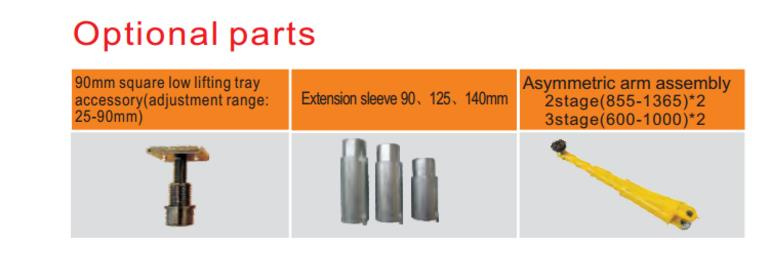

More lifting pads with different height meets the requirements for light lorries and SUVs.
Symmetric and asymmetric installation types are optional.
Passed 115% dynamic loading test and 150% static loading test .
CE certificated.

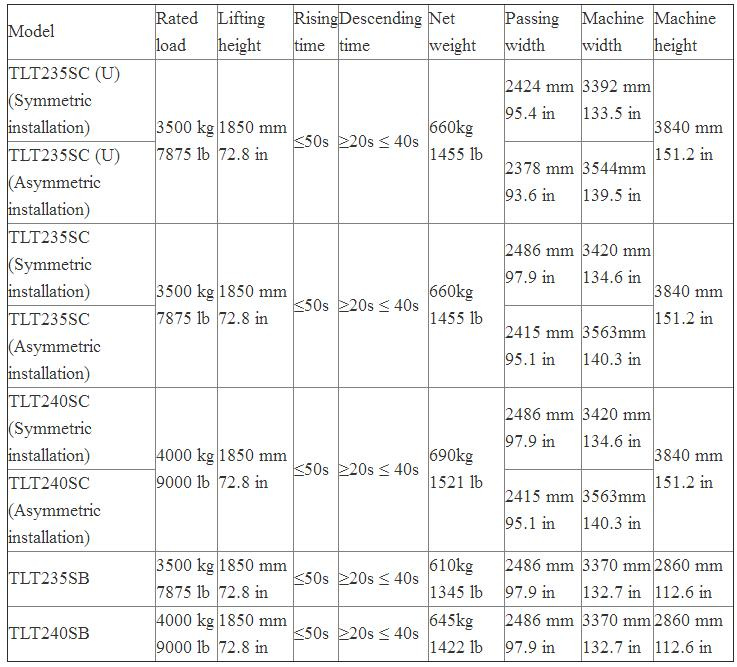

TLT235SCA(U) Parameter


Rated load:    3500kg
Lifting height:    1850mm
Initial height:    110mm
Lifting time:    ≤50s
Lowering time:    ≥20s≤40s

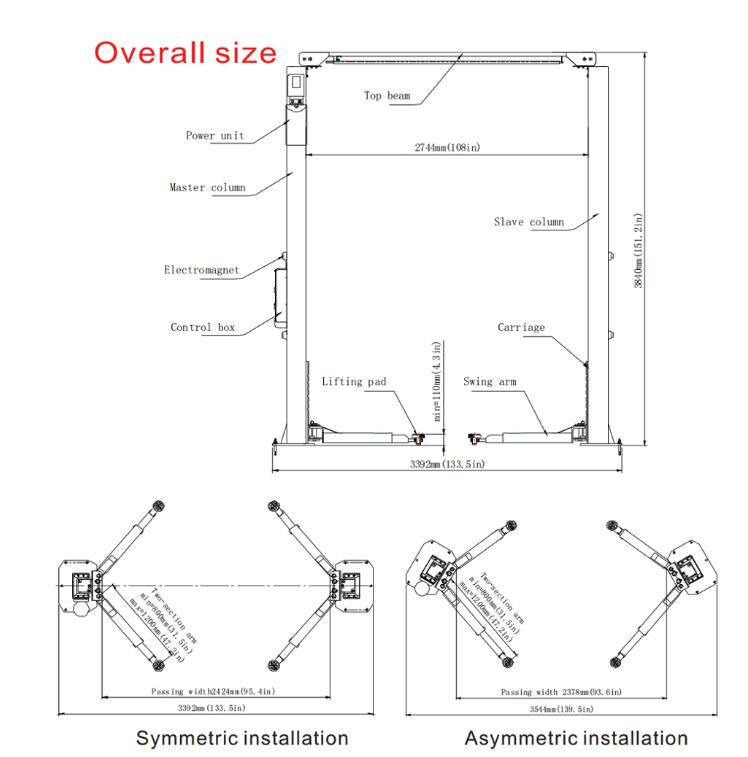

Passing width for symmetric installation:    2424mm
Overall width for symmetric installation:    3392mm
Passing width for asymmetric installation:    2378mm
Overall width for asymmetric installation:    3544mm
Overall height:    3840mm
Motor power:    2.2kw
Motor voltage:    3 phase/380v or Single phase/220V
Working noise:    ≤75dB(A)
Working oil pressure:    16M Pa


Environmental Requirement


Working temperature:    -5ºC ~+ 40ºC
Transport/storage temperature:    -5ºC~+ 40ºC
Relative humidity:    Temperature+ 30ºC ,relative humidity 8 0 %
Height above sea level:    No more than 2000m
