Low Price Auto Retractable Painting Booth
Other conditions and terms:
1. Payment term: T/T 50% advanced after order confirmed, T/T 50% balance paid before delivery.
2. Delivery date: 10-15 days after order confirmed.
3. Warranty: 2 years. During the warranty time, any problem caused by products' quality, BTD has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
4. Quality: Our products are welcomed in Europe, our quality meets the requirement of European market.
5. Service time: Life long maintenance| Custom-designed Retractable Paint Booth |

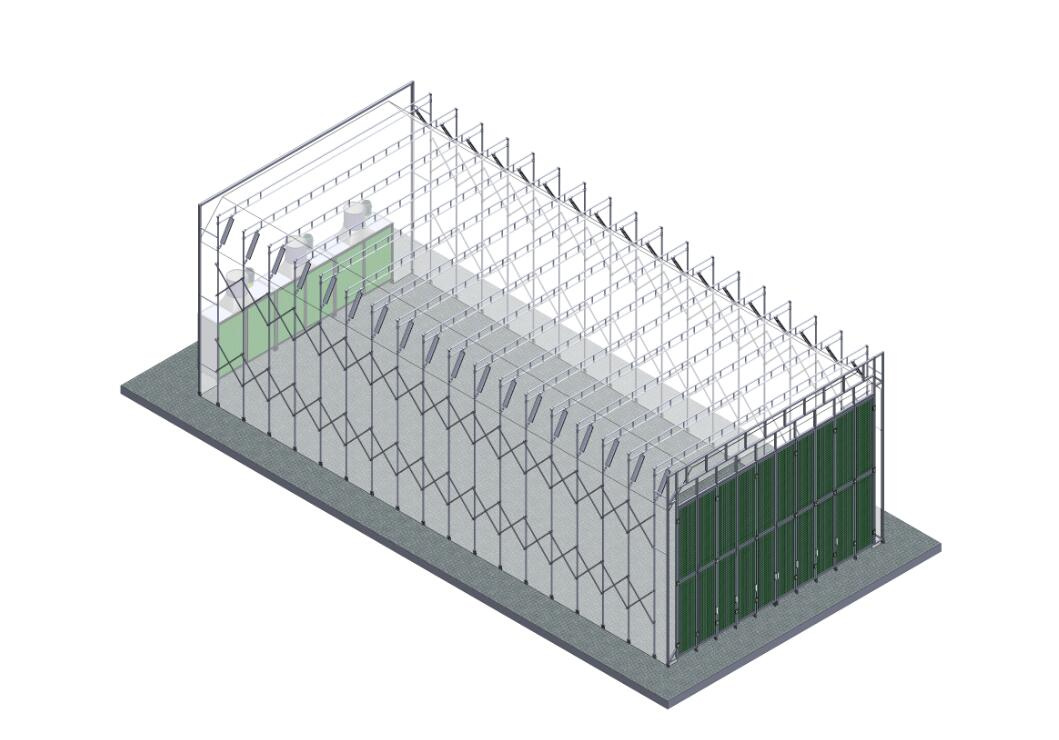

| Case one: Retractable type Paint Booth(24×11.5×8.5 M LxWxH) |
| Design Standard | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |
| Cabin size | |
| Inside size | 24,000×11,500×8,500mm (L×W×H) |
| Outside size | 25,300×11,800×10,000mm (L×W×H) |
| Cabin system | |
| Cabin structure | Skeleton constitution, Retractable, with Mecanum wheels |
| Sealing materials | Transparent PVC soft curtain, thickness: 0.5mm |
| Main door | |
| Door type | 5+5 open folding structure |
| Door size | 10,100x8,000mm (WxH) |
| Door description | Square tube frame, filter can be put into the middle |
| Filtration System | |
| Pre-filters | G2 Grade, Fiber glass paint-stop filter, in the main door |
| Exhaust filter | Fiber glass paint-stop filter, with features of big air ventilation volume, small resistance, fire resistance and so on |
| Light system | |
| | Quantity and power | 36 sets of lighting box , each set with 2×36W,total 2592W |
| | Lighting arrangement | on both sides |
| | Lighting description | Electron rectifier with CE certificate, America T8 lights |
| Ventilation system | |
| Exhaust fan form | Axial fan, model is T40No.6C/3kw-4 |
| Exhaust fan power& motor description | 3x3KW,1450 rpm, 240 V, 60 Hz |
| Exhaust fan parameter | 275pa, 61,500 m³//h |
Air speed
( under zero-load) | +/- 0.17m/ in empty booth |
| Noise level | <86 dB |
| Pipeline configuration | Pipe diameter: φ=710 |
| Control system | |
| Performance standards | Direct starting |
| Function | Painting, lighting switch, emergency stop switch, failure indication |
| Special description | Optional |
| PVC curtain with 1 hours fire rating | Adopt D grade fire listed, Foreign brands |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
FQA:
Q1: Are you Manufacturer or Trading company? A: We are a professional manufacturer with our own export department.
Q2: Where is your company ocated? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7: Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.
Our Service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project,
Please feel free to contact us.
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.
BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.
BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
