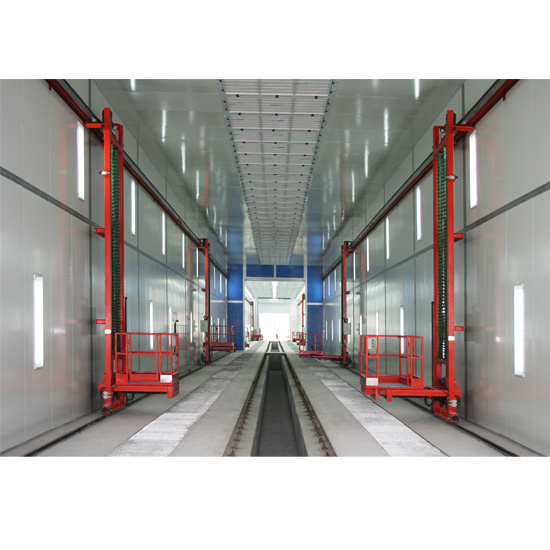

Lift Platform Industrial Lifting Equipment for Spray Paint Booth
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |

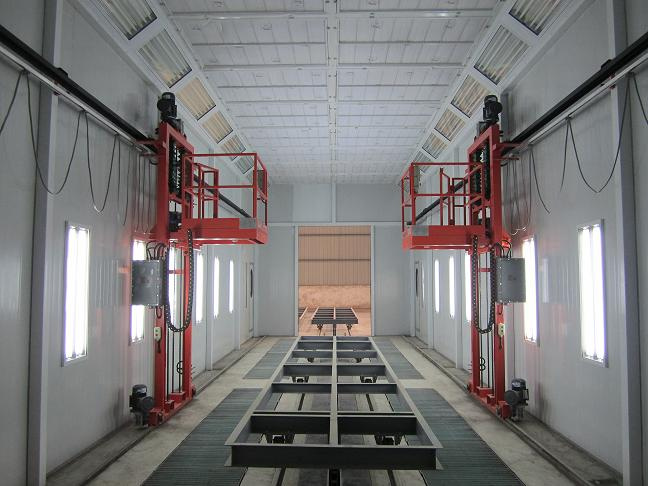

A. YOKISTAR 3-Axis Movement Platforms are designed and manufactured for a more convenient and efficient operation in spray booths, where quick and safe access in the height is essential.
B. 3 axes, horizontal movement (X-axis) of the personnel lift, vertical movement (Z-axis) of the basket, and the movement in and out of the basket (Y-axis), all can be easily reached by versatile YOKISTAR 3-Axis Movement Platforms.
C. YOKISTAR 3-Axis Movement Platforms can be tailored according to different sizes of spray booths. Numerous personnel lifts real cases and multiple attainable modifications make YOKISTAR 3-Axis Movement Platforms a perfect match of your spray booth.Main Specifications- Payload: 300kg
- Dimension of Basket: 900x650x900mm (LxWxH)
- Working Height: 550mm~3000mm from floor
- Extension Distance: 500mm
- Upper Rail: 10# channel steel, welded on the column of the spray booth; 3600mm from floor
- Lower Rail: 12kg/m light rail, welded on the steel plates embedded in the ground
- Noise Under Working: ≤70db
- Temperature Under Working: -15ºC~60ºC
- Working Voltage of Button: 36V/AC
- Total Power: 3kw
Features- Rail Scraper
- Emergency Stop Button
- Orange(Any color is optional)
- Inward Swing Door
- Applicable for YS-TB20 spray booth
- All the circuits are anti-explosion
- Easy Installation
- 12 Months Warranty
- 20 Business Days Delivery
- Bubble Films Packaging For Sea Transportation
Options- Bump Stop Control
- Paint Pot Carrier
- Mechanical Stop
- Safety Lock
Prod Model: |
standard model |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Payload: |
300kg |
Dimension Of Basket: |
900X650X900mm (Lxwxh) |
Working Height: |
550~3000mm |
Basket Extension: |
500mm |
Upper Rail: |
10# Channel Steel |
Lower Rail: |
12kg/M Light Rail |
Noise Under Working: |
Less Than 70dB |
Temperature Under Working: |
-15oc~60oc |
Working Voltage Of Button: |
36V/AC |
Total Power: |
3kw |
Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.
Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).
As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.
The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.
YOKISTAR is an ideal cooperator who deserves your reliance.
