Launch Truck Heavy Duty Diagnostic Scanner

Name: Launch Truck Heavy Duty Diagnostic Scanner
Brand: ibuyautoparts.com
SKU: 664246162
Availability: InStock
Rating: 4.9 (29 reviews)

Price:	US $ 180/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

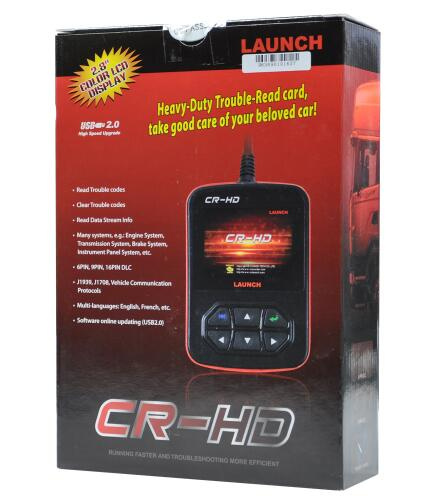

CR-HD is the first heavy truck code reader which Launch latest developed. It has integrated the basic diagnostic functions of two heavy duty truck standard protocols (J1939 and J1708), applied 2.8" color LCD with beautiful interface, and equipped with 6PIN and 9PIN additional diagnostic connectors, which can provide highest quality, most efficient, and most professional diagnostic service for heavy duty trucks. From now on, the heavy duty trucks also have their own small-scale diagnostic tool.

Read fault code
Clear fault code
Read data streams
Support multiple ECUs

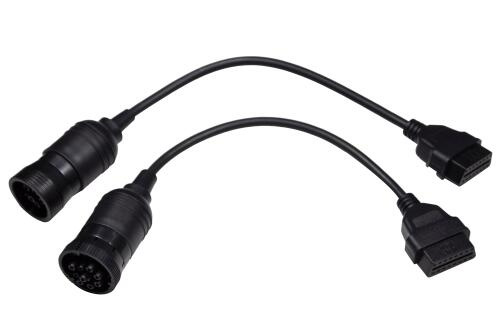

Support 6PIN, 9PIN, and 16PIN diagnostic connectors
Support J1939, and J1708 vehicle communication protocols
With multi-languages function (English, and French, etc. )
With online software upgrade function (USB2.0)

Screen: 2.8", 262K true color, 320*240 LCD
Input voltage range: 8~36V
Operating current: Typically <100mA
Typical power consumption: <1.2W
Wire connection: 6PIN, 9PIN, 16PIN diagnostic connector
Environmental temperature: 0ºC~50ºC
Storage temperature and humidity: -20ºC~70ºC@ RH 60%
External dimension: L*W*H=121*82*26mm
Single unit: <500g

weight	1kg
size	13&15&21inchi

Prod Model:	Cr-HD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Name:	Launch Code Reader
Item Type:	Code Readers & Scan Tools
Language:	English
Weight:	1kg
Certification:	RoHS
Update Method:	by Internet
