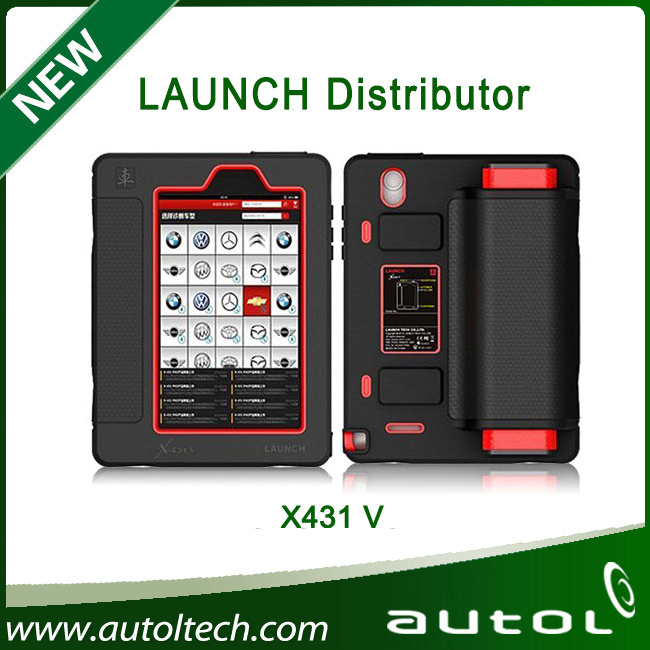

Global Version Universal Scanner Auto Scanner LAUNCH X431 V Pro Wifi/Bluetooth Diagnosis Tablet Full System Diagnostic Tool
X431 V Specifications:
Launch X431 V sopport one click online update, support full range car model from USA, European and Asian. Multi langauge.
Launch X431 V Wifi/Bluetooth Tablet Full System Diagnostic Tool
Highlights:
1. Supported Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese
2. Wi-Fi: Supported
3. Bluetooth: Supported
4. Dealer Code: 86A
5. Easy to Update: Online update, Support Online one-click update, no need to update the software to CF Card.
X431 V Description:
Launch X431 V with Bluetooth/Wifi based on Android system, is a new car malfunction diagnostic device developed by Launch Tech for internet application. X-431 V completely substitutes X431 IV and X431 Diagun III. It passes on Launch advantages in car fault diagnostic technology, such as vast car model coverage, powerful test function, special function and accurate tast data, etc., X-431 V achieves the full car model and full system fault diagnosis through the bluetoooth communication between DBSCar connector and intelligent mobile terminal. X-431 V taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle, etc., thus lead to wide car diagnostic community.
It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.
X431 V Product Features:
Panel PC: High configuration of hardware, fast running speed
Capacitor Screen: Multi-touch capacitor screen, more smooth operation
WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easy carry
Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
Wifi communication: Support WIFI network
Android System: Users can install and Android software
Numerous Additional Functions: Photo, video, multimedia, other software application, etc.
One click update: You do not have to download software to memory card anymore, can do one click update directly through your machine.
Pannel PC Parameters:
Operating System: Android
CPU: Dual core 1GHz
Battery: 3000mh, rechargeable polymer lithium battery
Standby time: It is subject to the using environment. Generally it can keep working for 4 hours.
Extension memory card: 32G Micro SD(TF) card supported
Memory: 512MB
Storage capacity: 2GB
LCD: 7.0 inch
LCD resolution: 1024X600
Touch screen: 5 points capacitive touch screen
Cameras: 2 mega rear and 0.3 mega front
Working temperature: -10° C ~ 55° C (14° F to 131° F)
Storage temperature: -20° C ~ 70° C (-4° F to 158° F)
DBSCar Connector Parameters:
Working Voltage: 9 ~15V
Average working current: About 35mA
Standby current: About 25mA
Working temperature: -20 to 55° C (-4° F to 131° F)
Storage temperature: -30 to 70° C (-22° F to 158° F)
Storage humidity: <80%
Working humidity: <60%
Net weight: About 26g
Bluetooth Distance: 10M (without obstacle)
Packing List:
1. X-431 V pad computer
2. Password envelope
3. X-431 v protection sleeve
4. DBScar diagnostic connector
5. OBD II extension cable
6. Cigarette lighter cable
7. Power adaptor
8. USB data cable
9. Non-16pin connector
| Difference | X431 IV | X431 V |
| Operation System | Linux | Android |
| Screec | LCD Touch with backlight, 240*320 | 7 inch Capacitive Touch |
| Processor | 72MHz 32-bit ARM7 | 1GHz Dual Core |
| Memory | 16M | 512m |
| Storage | 1 GB CF Card | 2 GB, extendible to 32G |
| Battery | no | 3000mAh, Engurance:4h |
| Printer | Thermal Priter | no |
| Diagnostic method | Test Cable | Bluetooth / Wifi |
| Diagnosis |
Wired diagnosis for full system,can analysis and diaply through smart therminal.
| Bluetooth diagnosis, independently diagnosis full system, can analysis and diaply through smart therminal. |
| Diesel Vehicle | yes, 12V | no |
| Upgrade | Download to CF Card | Online one-click upgrade |
| Multi Group Display | 2 | 4,6,12 |
| Camera | No | Front: 0.2 megapixel, Rear: 2.0 megapixel |
| Startup Time | 35s | 25s |
Picture/Audio/
Video/Instant Chat | No | Yes |
| Design Feature | Encapsulate design at side and bottom, anti-knock, Pwerful function,economical cost | Tablet, Multi-touch, Customer Managent |
