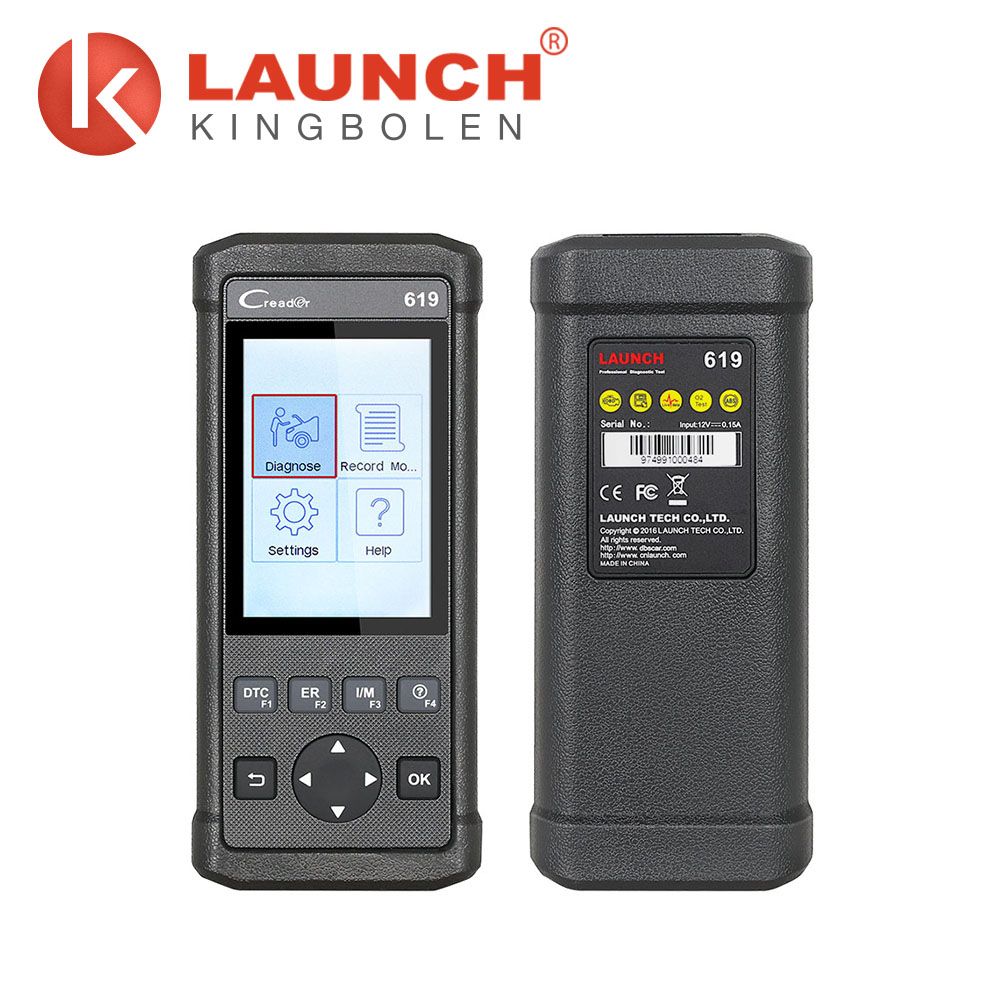

Launch Creader 619 Cr619 Code Reader OBD2/Eobd Function Support Data Record Replay Instead of Autel Al619 as Launch Creader 6011
Price: |
US $ 123.99-129.99/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
SP103-T |
Product Name: |
Launch Creader 619 Code Reader |
Language: |
Spanish, English, French |
Software Version: |
Newest Version |
Hardware Version: |
Newest Version |
Original Software Update: |
Yes |
Special Features: |
by Obdii Connector |
Support Vehicle: |
Support OBD II Car Models |
Special Function: |
Meets All Obdii/Eobd Protocols |
Update: |
Free Update All Life |
Certification: |
RoHS |
Update Method: |
by Internet |
Testing Equipment Type: |
Code Readers & Scan Tools |
Product Description
Launch CReader 619 OBD2/EOBD Auto Diagnostic Scanner with ABS and SRS System Diagnostic Functions
Product Introduction:
CReader 619 is a multipurpose CReader with a large-size color display. It provides full OBDII/EOBD diagnostic
functions, and also ABS and SRS system diagnostic functions. It is a practical car diagnostic tool that helps one resolve
common faults in daily car maintenance.
Highlight:
EASY TO USE: All-in-one screen and easy-to-use hotkeys make the 619 an ideal tool for the DIYer and professional
technicians alike. Thoughtful design elements like Quick access with hot keys; Durable buttons with metal covers to
prolong life; and Extended cover connections to maximize protection will allow this unit to last through years of constant
use and abuse.
FULL OBD FUNTION: CReader 619 provides full OBDII/EOBD diagnostic functions, Read dynamic data streams;
Read readiness status; Turns off Malfunction Indicator Light (MIL); Query freeze frame data; Read current DTCs; Clear
DTCs; O2 Sensor test; On-board monitor test; Read pending DTCs; On-board system or component control; Read vehicle
information; Read permanent DTCs. Works on ALL 1996 and newer OBD II & CAN domestic or import vehicles.
SPECIAL FUNCTION: CR6011 provides the ABS and SRS diagnostic functions, Read DTCs, clear DTCs, and read
data streams for the ABS system and the SRS system. Works on 46 car models, see the description for more models.
WHAT'S IN THE PACKAGE: OBD Scanner; OBD II Connector and cable; USB cable; One Bag; One Protective Case;
Quick start guide in three languages (English, France and Spanish); Free scanner updates via the internet, Multilingual
Support (English, French, Spanish, German, Russian)
Support Languages:English, Spanish, French, Russian, German, Portuguese, Japanese,Chinese
Product Functions:
1. OBD full functions
1) Read dynamic data streams and MIL
2) Read readiness status
3) Query freeze frame data
4) Read current DTCs
5) Clear DTCs
6) O2 sensor test
7) On-board monitor test
8) Read pending DTCs
9) On-board system or component control
10) Read vehicle information
11) Read permanent DTCs
2. Color and graphical display of data streams
3. Query DTCs
4. Free update of USB interface internet
5. Multilingual support
6. Data record and replay
7. Read DTCs, clear DTCs, and read data streams for the ABS system
8. Read DTCs, clear DTCs, and read data streams for the SRS system
9. Print data via PC
10. With the same functions as AUTEL al619.
Specifications: Screen | 4.0"TFT 320*480 dpi |
Voltage range | 9-18V |
Operating Temperature | 0~ 50 |
Environment Temperature | -20~70 |
Dimension | 195mm*86mm*32 mm (7.6" *3.4" *1.2") |
Weight | 460g (pending) |
Register & Update
The tool can be updated via USB cable.
Note: make sure the PC has an Internet connection.
1.Go to www.dbscar.com and download the update tool to the computer.
2.Decompress and install it on your computer (compatible with Windows XP, Windows7, Windows8 & Windows10)
There are 2 methods available to update your tool. You may choose one of the following to proceed.
Method 1: Via memory Card (recommend)
1.Launch the update tool, and type in Product Serial Number (located at the back of the tool)
2.Click [Device upgrade] to enter the sign-up page.
3.Enter the information and click [Summit]
Method 2: Via USB Cable
1.Connect one end of the USB cable to the USB port of PC, and the other end to the tool

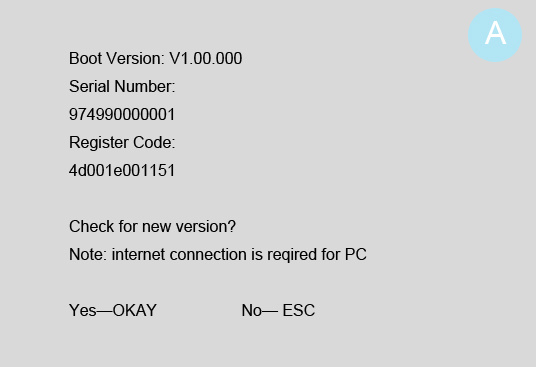

2.If a newer version is found, a screen similar to Fig A will appear.
Press [OK] to configure this tool as a USB device.
3.Launch the update tool on your PC, [Device upgrade] box will appear. Type in the Serial Number and Choose the
desired interface language and then click [Summit] to enter update center.
4.Select the updates you would like to perform or click 'Select all', and then click [Download] to start downloading.
5.Once all steps are complete, restart your tool, it will prompt you to upgrade, click [OK] to start updating, it may take
several minutes to finish the update. Then your tool is now ready for use.
