Prod Model: |
YS-200-C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ventilation: |
Downdraft Airflow Way |
Air Intake: |
5.5kw Double Intake Centrifugal Fan |
Air Exhaust: |
5.5kw Double Intake Centrifugal Fan |
Heating: |
Riello G10 Diesel Burner |
Voltage: |
1X220V, 3X380V, Your Special Voltages Are Accepted |
Optional Colour: |
White, Blue, Orange and Red |
Main Product: |
Spray Booth, Prep Station, Infrared Curing System |
Product Description
Model: YS-200-CInside dimention: 6300*3450*2700mmL*W*H
Any Size Requirements Can Be Met
With plenum, intake and exhaust air fan

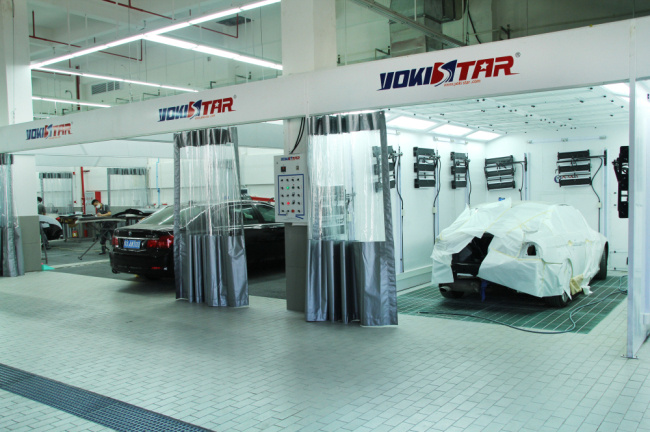

A. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
B. Prep stations speed up the drying process and improve the overall quality of your finished product.
C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts
D. Optional heat units are available for high production needs.
WarrantyThe goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
Outside Dimension | 7550×3550×3100mm (L×W×H) |
Inside Dimension | 6300×3450×2700mm (L×W×H) |
Plenum Dimension | 6300×3450×400mm (L×W×H) |
Basement | no basement, 2 rows of pits with grilles above |
Room Body | Back side with 50mm EPS wall panels, the other 3 sides with PVC curtains |
Lighting System | Ceiling lights 8units×4pcs=32pcs 36W, with electronic ballasts,5.0mm clear tempered glass |
Generator Setting | Exhaust air from rear side; galvanized steel molding frame, white coated steel cover |
Intake and Exhaust Air System | 5.5KW double intake centrifugal fan for intake air, 5.5KW double intake centrifugal fan for exhaust air, model YDW-4.5S, air capacity is 15500 m 3 /h, with manual damper for exhaust air |
Heating System | RIELLO G10 oil burner, stainless steel heat exchanger. Max. heating productivity: 100000 Kcal/h |
Filter System | Pre-filter, high efficiency filter, exhaust fiberglass filter |
Roof Plates | Galvanized steel plates |
Control System | Fan operation switch, lighting switch, temperature controller, emergency stop |
Setting Style | Suspending steel hook from roof of building or steel column supporting |
