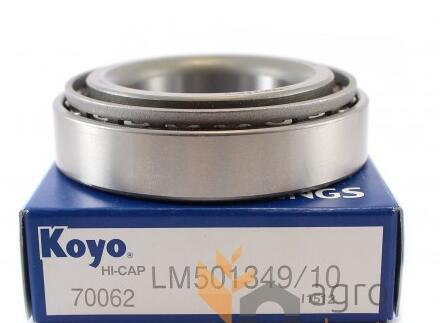

KOYO Tapered roller bearing LM501349/10
Tapered roller bearings are designed such that outer ring, inner ring and rollers have tapered surfaces whose apexes converge at a common point on the bearing axis. Along with metric series bearings, inch series bearings are also available. This type of bearing is suitable for applications that involve heavy or impact loading.
Koyo, NACHI, Timken, NSK, NTN, SKF brand -taper roller bearing, auto bearing, wheel bearing for Japanese car Bearing No. Ref. Series 1:
LM11749/10 LM11949/10 M12649/10 LM12749/10 LM12749/11 L44643/10 M84548/10 15103/245 15103S/243 L44649/10 L45449/10 329013 M86649/10 LM67048/10 LM67049A/10 15123/245 2580/20 M88048/10 LM48548/10 25877/20 25877/21 2793/20 31594/20 3872/20 L68149/10 L68149/11 HM89449/10 JL69349/10 2776/20 2788/20 418/414 2789/20 HM801349/10 LM300849/11 HM803146/10 HM803146/11 18590/20 LM501349/10 LM501349/14 11162/300 25578/20 HM801349/10 HM801349/11 25580/20 25582/20 HM803149/10 3782/20 3776/20 LM102949/10 LM603049/11 25590/20 25590/22 25590/23 LM503349A/10 18690/20 359A/354A 3778/20 JLM104948/10 LM104949/11 18790/20 18790/243780/20 LM806649/10 387/382A 387A/382A 387AS/382A 387S/382A 462/453X 29580/20
Bearing No. Ref. Series 2:
02474/20, 02475/20, 09067/195, 102949/10, 104948/10, 104949/11, 11162/300, 11590/20, 11749/10, 11949/10, 12649/10, 1280/20, 14118/283, 14127A/276, 14138A/276, 15123/245, 16150/284, 17887/31, 18590/20, 19150T/282, 1988/20, 21075/12, 212047/10, 212049/11, 215249/10, 218248/10, 220149/10, 25580/20, 25590/20, 25880/20, 25883/24, 27687/20, 2788/20, 28580/21, 28584/22, 28985/20, 29585/20, 29586/20, 29586/22, 29590/20, 29675/20, 29685/20, 29749/10, 29749/11, 31593/20, 300849/10, 33252/462, 33275/462, 33281/472, 33287/462, 3382/25, 3490/20, 359S/354X, 368A/362A, 3767/20, 3778/20, 3780/20, 3782/20, 3795/20, 387A/382A, 387/382, 389AS/382, 39236/433, 395A/394A, 395A/396A, 39581/20, 39590/20, 3982/20, 3984/20, 3994/20, 418/414, 44643/10, 44649/10, 45284/20,
Bearing No. Ref. Series 3:
45289/20, 45449/10, 462/453X, 480/472, 48548/10, 501349/10, 503349/10, 515649/10, 518445/10, 536/532X, 55176/443, 55187/443, 566/563, 567/563, 570/572, 580/572, 596A/592A, 603049/11, 65385/20, 67048/10, 68149/10, 68149/11, 69349/10, 710949/10, 749/742, 801346/10, 801349/10, 801349/12, 84548/10, 86649/10, 88048A/10, 88048S/10, 88048/10, 88547/10, 88649/10, 89446/10, 89449/10, 903249/10, 907639/10, 15120, 25580, 14136A, 7815, 24780/20, 2788/20, 903249, 88047, 911245/20, 913843/20, 683/672, 903249, 37425, 3984, 911242
Product: Tapered roller bearing, taper bearing, roller bearing, inch bearing, bearings.
| KOYO SINGLE ROW TAPERED ROLLER BEARINGS, INCH SERIES |
| Bearing No. | Boundary dimensions(mm) | Load ratings(kN) | Limiting speeds(RPM) |
| d | D | T | B | r(min) | r1(min) | Cr | C0r | Grease lub. | Oil lub |
| 3386/20 | 39.688 | 80.167 | 29.37 | 30.391 | 0.8 | 3.2 | 91 | 106 | 5000 | 6700 |
| 3382/28 | 39.688 | 84.138 | 29.37 | 30.391 | 3.6 | 3.2 | 91 | 106 | 5000 | 6700 |
| 28158/300 | 40 | 76.2 | 20.638 | 20.94 | 1.6 | 1.2 | 57.3 | 65.9 | 5300 | 7000 |
| 344/332 | 40 | 80 | 21 | 22.403 | 3.6 | 1.2 | 68 | 74.8 | 4900 | 6600 |
| 344A/332 | 40 | 80 | 21 | 22.403 | 0.8 | 1.2 | 68 | 74.8 | 4900 | 6600 |
| 350A/354A | 40 | 85 | 20.638 | 21.692 | 0.8 | 1.2 | 71.8 | 81.7 | 4600 | 6200 |
| 420/414 | 40 | 88.501 | 26.988 | 29.083 | 3.6 | 1.6 | 98.2 | 112 | 4900 | 6500 |
| 543/532X | 40 | 107.95 | 36.512 | 36.957 | 3.6 | 3.2 | 138 | 172 | 3800 | 5100 |
| HM801349/10 | 40.483 | 82.55 | 29.37 | 28.575 | 3.6 | 3.2 | 87.3 | 117 | 4900 | 6600 |
| 18590/20 | 41.275 | 73.025 | 16.667 | 17.462 | 3.6 | 1.6 | 45.9 | 55.8 | 5200 | 6900 |
| LM501349/10 | 41.275 | 73.431 | 19.558 | 19.812 | 3.6 | 0.8 | 57.8 | 73 | 5200 | 7000 |
| LM501349/14 | 41.275 | 73.431 | 21.43 | 19.812 | 3.6 | 0.8 | 57.8 | 73 | 5200 | 7000 |
| LM501349/11 | 41.275 | 73.431 | 23.012 | 19.812 | 3.6 | 2.4 | 57.8 | 73 | 5200 | 7000 |
| 11162R/300 | 41.275 | 76.2 | 18.009 | 17.384 | 1.6 | 1.6 | 51.6 | 63.3 | 5200 | 6900 |
