| Prod Model: |
L45449/L45410 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Stock |
| Certification: |
ISO9006 |
| Type: |
Wheel Hub Bearing |
| Material: |
Chrome Steel |
| Tolerance: |
P5 |
| Clearance: |
C3 |
| Brand: |
Ikc SKF NSK NTN Koyo NACHI Timken |
Product Description

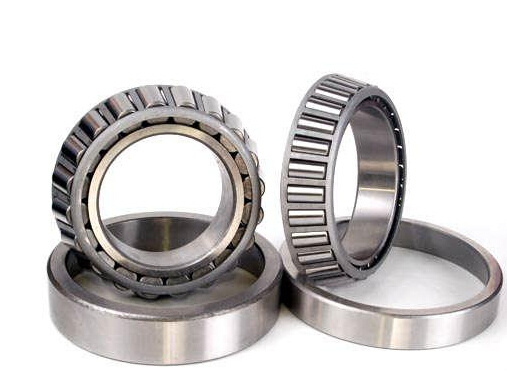

Taper roller bearing L45449/L45410
1. Flexible price
2. High precision Low noise
3. Large Quantity in stock
Taper roller bearing L45449/L45410
Tapered roller bearings have tapered inner and outer ring raceways, tapered roller arranged between the two. The surface of the projection lines of all cone bearing axis in the same point together. This design makes tapered roller bearings particularly suitable for bearing complex (radial and axial) loads. Most of the axial load bearing capacity is determined by the contact angle α ; Angle increases, the higher the axial load capacity. Angle size of the computational coefficient e to represent; E greater the contact angle the greater the bearing axial load greater applicability
KOYO taper roller bearing, auto bearing, wheel bearing for Japanese car Bearing No. Ref. Series 1:
LM11749/10 LM11949/10 M12649/10 LM12749/10 LM12749/11 L44643/10 M84548/10 15103/245 15103S/243 L44649/10 L45449/10 329013 M86649/10 LM67048/10 LM67049A/10 15123/245 2580/20 M88048/10 LM48548/10 25877/20 25877/21 2793/20 31594/20 3872/20 L68149/10 L68149/11 HM89449/10 JL69349/10 2776/20 2788/20 418/414 2789/20 HM801349/10 LM300849/11 HM803146/10 HM803146/11 18590/20 LM501349/10 LM501349/14 11162/300 25578/20 HM801349/10 HM801349/11 25580/20 25582/20 HM803149/10 3782/20 3776/20 LM102949/10 LM603049/11 25590/20 25590/22 25590/23 LM503349A/10 18690/20 359A/354A 3778/20 JLM104948/10 LM104949/11 18790/20 18790/243780/20 LM806649/10 387/382A 387A/382A 387AS/382A 387S/382A 462/453X 29580/20
Bearing No. Ref. Series 2:
02474/20, 02475/20, 09067/195, 102949/10, 104948/10, 104949/11, 11162/300, 11590/20, 11749/10, 11949/10, 12649/10, 1280/20, 14118/283, 14127A/276, 14138A/276, 15123/245, 16150/284, 17887/31, 18590/20, 19150T/282, 1988/20, 21075/12, 212047/10, 212049/11, 215249/10, 218248/10, 220149/10, 25580/20, 25590/20, 25880/20, 25883/24, 27687/20, 2788/20, 28580/21, 28584/22, 28985/20, 29585/20, 29586/20, 29586/22, 29590/20, 29675/20, 29685/20, 29749/10, 29749/11, 31593/20, 300849/10, 33252/462, 33275/462, 33281/472, 33287/462, 3382/25, 3490/20, 359S/354X, 368A/362A, 3767/20, 3778/20, 3780/20, 3782/20, 3795/20, 387A/382A, 387/382, 389AS/382, 39236/433, 395A/394A, 395A/396A, 39581/20, 39590/20, 3982/20, 3984/20, 3994/20, 418/414, 44643/10, 44649/10, 45284/20,
Bearing No. Ref. Series 3:
45289/20, 45449/10, 462/453X, 480/472, 48548/10, 501349/10, 503349/10, 515649/10, 518445/10, 536/532X, 55176/443, 55187/443, 566/563, 567/563, 570/572, 580/572, 596A/592A, 603049/11, 65385/20, 67048/10, 68149/10, 68149/11, 69349/10, 710949/10, 749/742, 801346/10, 801349/10, 801349/12, 84548/10, 86649/10, 88048A/10, 88048S/10, 88048/10, 88547/10, 88649/10, 89446/10, 89449/10, 903249/10, 907639/10, 15120, 25580, 14136A, 7815, 24780/20, 2788/20, 903249, 88047, 911245/20, 913843/20, 683/672, 903249, 37425, 3984, 911242
Product: Tapered roller bearing, taper bearing, roller bearing, inch bearing, bearings.
|
Bearing No. |
Dimension(mm) |
Weight |
|
d |
D |
T |
B |
C |
R |
r |
Kg |
|
LM11749/10 |
17.462 |
39.878 |
13.843 |
14.605 |
10.668 |
1.3 |
1.3 |
0.081 |
|
09067/09195 |
19.05 |
49.225 |
18.034 |
19.05 |
14.288 |
1.3 |
1.3 |
0.179 |
|
LM11949/10 |
19.05 |
45.237 |
15.494 |
16.637 |
12.065 |
1.5 |
1.5 |
0.122 |
|
12580/20 |
20.64 |
49.225 |
19.845 |
19.845 |
15.875 |
1.5 |
1.5 |
0.175 |
|
LM12649/10 |
21.43 |
50.005 |
17.525 |
18.288 |
13.97 |
1.2 |
1.2 |
0.169 |
|
LM12749/10 |
21.986 |
45.237 |
15.494 |
16.637 |
12.065 |
1.3 |
1.3 |
0.116 |
|
LM12749/11 |
21.986 |
45.974 |
15.494 |
16.637 |
12.065 |
1.3 |
1.3 |
0.126 |
|
KJL22349/10 |
22 |
41 |
14.5 |
14.5 |
11.4 |
1.5 |
1 |
0.082 |
|
15101/245 |
25.4 |
61.998 |
19.05 |
20.638 |
14.288 |
0.8 |
1.2 |
0.35 |
|
LM44643/10 |
25.4 |
50.292 |
14.224 |
14.732 |
10.668 |
1.3 |
1.3 |
0.123 |
|
M84548/10 |
25.4 |
57.15 |
19.431 |
19.431 |
14.732 |
1.5 |
1.5 |
0.245 |
|
M86643/10 |
25.4 |
64.292 |
21.433 |
21.433 |
16.67 |
1.5 |
1.5 |
0.375 |
|
LM44649/10 |
26.988 |
50.292 |
14.224 |
14.732 |
10.668 |
3.5 |
1.3 |
0.118 |
|
320/28XJ |
28 |
52 |
16 |
16 |
12 |
3.5 |
1.5 |
0.137 |
|
639297/154Q |
28 |
57.146 |
17.55 |
17.44 |
13.525 |
3.5 |
1.5 |
0.2 |
|
L45449/10 |
29 |
50.292 |
14.224 |
14.732 |
10.668 |
4 |
1.3 |
0.113 |
|
LM45449/10 |
29 |
50.292 |
14.224 |
14.732 |
10.668 |
3.5 |
1.3 |
0.11 |
|
M86649/10 |
30.162 |
64.292 |
21.433 |
21.433 |
16.67 |
1.5 |
1.5 |
0.335 |
|
M86649/10 |
30.162 |
64.292 |
21.433 |
21.433 |
16.67 |
1.5 |
1.5 |
0.335 |
|
02475/20 |
31.75 |
68.263 |
22.225 |
22.225 |
17.463 |
3.5 |
1.5 |
0.374 |
|
15123/15245 |
31.75 |
62 |
18.161 |
19.05 |
14.288 |
0.8 |
1.3 |
0.244 |
|
15126/15245 |
31.75 |
62 |
19.05 |
20.64 |
14.288 |
0.8 |
1.3 |
0.26 |
|
2580/20 |
31.75 |
66.421 |
25.4 |
25.357 |
20.638 |
3.5 |
0.8 |
0.434 |
|
2580/23 |
31.75 |
69.85 |
23.813 |
25.357 |
19.05 |
1.3 |
0.8 |
0.439 |
|
31KW01 |
31.75 |
53.975 |
15.3 |
14.9 |
11.9 |
2 |
1.3 |
0.135 |
|
LM67048/10 |
31.75 |
59.131 |
15.875 |
16.764 |
11.8 |
SP |
1.3 |
0.182 |
|
LM67049/10 |
31.75 |
59.131 |
15.875 |
16.764 |
12 |
4 |
1.8 |
0.182 |
|
M88046/10 |
31.75 |
68.263 |
22.225 |
22.225 |
17.463 |
1.5 |
1.5 |
0.339 |
|
14131/14276 |
33.338 |
69.012 |
19.845 |
19.583 |
15.875 |
1.2 |
0.8 |
0.346 |
|
M88048/10 |
33.338 |
68.263 |
22.225 |
22.225 |
17.42 |
0.8 |
1.5 |
0.375 |
|
M88048/10 |
33.338 |
68.263 |
22.225 |
22.225 |
17.42 |
0.8 |
1.5 |
0.375 |
|
LM48548/10 |
34.925 |
65.088 |
18.034 |
18.288 |
13.97 |
3.56 |
1.2 |
0.249 |
|
LM48548/11 |
34.925 |
65.088 |
21.082 |
18.288 |
17.018 |
SP |
1.5 |
0.245 |
