| Prod Model: |
25590/20 25590/23 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Stock |
| Type: |
Wheel Hub Bearing |
| Material: |
Chrome Steel |
| Tolerance: |
P5 |
| Certification: |
ISO9001 |
| Clearance: |
C3 |
| ABS: |
Without ABS |
| Brand: |
Ikc SKF NSK NTN Koyo Timken |
Product Description

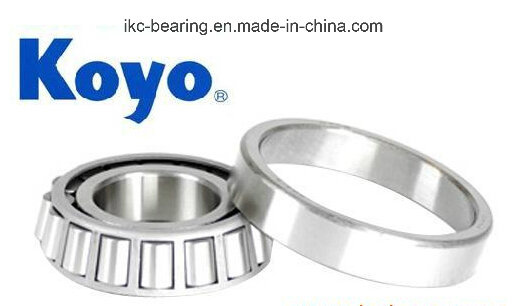

Koyo, NACHI, Timken, NSK, NTN, SKF brand -taper roller bearing, auto bearing, wheel bearing for Japanese car Bearing No. Ref. Series 1:
LM11749/10 LM11949/10 M12649/10 LM12749/10 LM12749/11 L44643/10 M84548/10 15103/245 15103S/243 L44649/10 L45449/10 329013 M86649/10 LM67048/10 LM67049A/10 15123/245 2580/20 M88048/10 LM48548/10 25877/20 25877/21 2793/20 31594/20 3872/20 L68149/10 L68149/11 HM89449/10 JL69349/10 2776/20 2788/20 418/414 2789/20 HM801349/10 LM300849/11 HM803146/10 HM803146/11 18590/20 LM501349/10 LM501349/14 11162/300 25578/20 HM801349/10 HM801349/11 25580/20 25582/20 HM803149/10 3782/20 3776/20 LM102949/10 LM603049/11 25590/20 25590/22 25590/23 LM503349A/10 18690/20 359A/354A 3778/20 JLM104948/10 LM104949/11 18790/20 18790/243780/20 LM806649/10 387/382A 387A/382A 387AS/382A 387S/382A 462/453X 29580/20
Bearing No. Ref. Series 2:
02474/20, 02475/20, 09067/195, 102949/10, 104948/10, 104949/11, 11162/300, 11590/20, 11749/10, 11949/10, 12649/10, 1280/20, 14118/283, 14127A/276, 14138A/276, 15123/245, 16150/284, 17887/31, 18590/20, 19150T/282, 1988/20, 21075/12, 212047/10, 212049/11, 215249/10, 218248/10, 220149/10, 25580/20, 25590/20, 25880/20, 25883/24, 27687/20, 2788/20, 28580/21, 28584/22, 28985/20, 29585/20, 29586/20, 29586/22, 29590/20, 29675/20, 29685/20, 29749/10, 29749/11, 31593/20, 300849/10, 33252/462, 33275/462, 33281/472, 33287/462, 3382/25, 3490/20, 359S/354X, 368A/362A, 3767/20, 3778/20, 3780/20, 3782/20, 3795/20, 387A/382A, 387/382, 389AS/382, 39236/433, 395A/394A, 395A/396A, 39581/20, 39590/20, 3982/20, 3984/20, 3994/20, 418/414, 44643/10, 44649/10, 45284/20,
Bearing No. Ref. Series 3:
45289/20, 45449/10, 462/453X, 480/472, 48548/10, 501349/10, 503349/10, 515649/10, 518445/10, 536/532X, 55176/443, 55187/443, 566/563, 567/563, 570/572, 580/572, 596A/592A, 603049/11, 65385/20, 67048/10, 68149/10, 68149/11, 69349/10, 710949/10, 749/742, 801346/10, 801349/10, 801349/12, 84548/10, 86649/10, 88048A/10, 88048S/10, 88048/10, 88547/10, 88649/10, 89446/10, 89449/10, 903249/10, 907639/10, 15120, 25580, 14136A, 7815, 24780/20, 2788/20, 903249, 88047, 911245/20, 913843/20, 683/672, 903249, 37425, 3984, 911242
Product: Tapered roller bearing, taper bearing, roller bearing, inch bearing, bearings.
| Bearing No. | Dimension(mm) | Basic Load rating(KN) | Weight |
| d | D | T | B | C | r1/r2 | r3/r4 | Cr | Cor | (kg) |
| 2 Series |
| 26882/23 | 41.275 | 76.2 | 25.4 | 25.4 | 20.638 | 3.5 | 1.5 |
|
| 0.48 |
| 28118/28300 | 30.162 | 76.2 | 20.637 | 20.94 | 15.507 | 1.5 | 1.3 |
|
| 0.48 |
| 28137/28300 | 34.925 | 76.2 | 20.637 | 20.94 | 15.507 | 1.5 | 1.3 |
|
| 0.44 |
| 26880/22 | 39.688 | 79.375 | 23.813 | 25.4 | 19.05 | 1.5 | 0.8 |
|
| 0.55 |
| 26881/22 | 39.688 | 79.375 | 23.813 | 25.4 | 19.05 | 3.5 | 0.8 |
|
| 0.54 |
| 26883/24 | 35 | 80 | 23.813 | 25.4 | 19.05 | 0.8 | 1.3 |
|
| 0.62 |
| 28138/28315 | 34.976 | 80 | 21.006 | 20.94 | 15.875 | 1.5 | 1.5 |
|
| 0.5 |
| 28150/28315 | 38.1 | 80 | 21.006 | 20.94 | 15.875 | 1.5 | 1.5 |
|
| 0.47 |
| 27880/20 | 38.1 | 80.035 | 24.608 | 23.698 | 18.512 | 0.8 | 1.5 |
|
| 0.571 |
| 28159/28317 | 39.98 | 80.035 | 21.433 | 20.94 | 15.875 | 3.5 | 1.5 |
|
| 0.44 |
| 26877/20 | 36.512 | 80.167 | 25.4 | 25.4 | 20.638 | 0.8 | 3.3 |
|
| 0.62 |
| 26878/21 | 38.1 | 80.167 | 29.37 | 25.4 | 24.608 | 0.8 | 3.3 |
|
| 0.66 |
| 26884/30 | 42.875 | 80.167 | 25.4 | 25.4 | 20.638 | 3.5 | 0.8 |
|
| 0.54 |
| 28151/28316 | 38.1 | 80.167 | 21.006 | 20.94 | 15.875 | 3.5 | 1.5 |
|
| 0.46 |
| 28158/28316 | 40 | 80.167 | 21.006 | 20.94 | 15.875 | 1.5 | 1.5 |
|
| 0.45 |
| 25570/18 | 36.512 | 81.973 | 23.876 | 25.4 | 19.114 | 3.5 | 1 |
|
| 0.63 |
| 22168/22325 | 42.862 | 82.55 | 19.842 | 19.837 | 15.08 | 2.3 | 1.5 |
|
| 0.45 |
| 22778/20 | 41.275 | 82.55 | 26.195 | 26.988 | 20.638 | 3.5 | 3.3 |
|
| 0.65 |
| 22780/21 | 42.862 | 82.55 | 26.195 | 26.988 | 20.638 | 3.5 | 0.8 |
|
| 0.63 |
| 25572/19 | 38.1 | 82.55 | 23.813 | 25.4 | 19.05 | 0.8 | 2 |
|
| 0.63 |
| 25576/20 | 42.862 | 82.931 | 23.813 | 25.4 | 19.05 | 3.5 | 0.8 |
|
| 0.57 |
| 25577/23 | 42.875 | 82.931 | 26.988 | 25.4 | 22.225 | 3.5 | 2.3 |
|
| 0.623 |
| 25578/20 | 42.862 | 82.931 | 23.812 | 25.4 | 19.05 | 2.3 | 0.8 |
|
| 0.576 |
| 25578/23 | 42.862 | 82.931 | 26.988 | 25.4 | 22.225 | 2.3 | 2.3 |
|
| 0.623 |
| 25580/20 | 44.45 | 82.931 | 23.812 | 25.4 | 19.05 | 3.5 | 0.8 |
|
| 0.558 |
| 25581/23 | 44.45 | 82.931 | 26.988 | 25.4 | 22.225 | 0.5 | 2.3 |
|
| 0.6 |
| 25582/24 | 44.45 | 82.931 | 23.813 | 25.4 | 19.05 | 5 | 2.3 |
|
| 0.54 |
| 25584/20 | 44.983 | 82.931 | 23.812 | 25.4 | 19.05 | 1.5 | 0.8 | 76.5 | 99 | 0.547 |
| 25590/20 | 45.618 | 82.931 | 23.812 | 25.4 | 19.05 | 3.5 | 0.8 | 76.5 | 99 | 0.538 |
| 25590/23 | 45.618 | 82.931 | 23.812 | 25.4 | 19.05 | 3.5 | 2.3 | 76.5 | 99 | 0.589 |
| 25571/21 | 42.875 | 83.058 | 23.812 | 25.4 | 19.05 | 3.5 | 3.3 | 76.5 | 99 | 0.577 |
| 25580/21 | 44.45 | 83.058 | 23.812 | 25.4 | 19.05 | 3.5 | 3.3 |
|
| 0.553 |
| 29168/29334 | 42.862 | 84.988 | 19 | 19.164 | 15.875 | 1.5 | 1.5 |
|
| 0.48 |
| 29177/29334 | 44.983 | 84.988 | 19 | 19.164 | 15.875 | 2 | 1.5 |
|
| 0.46 |
| 2973/24 | 42.862 | 85 | 25.4 | 25.608 | 20.638 | 3.5 | 1.3 |
|
| 0.7 |
