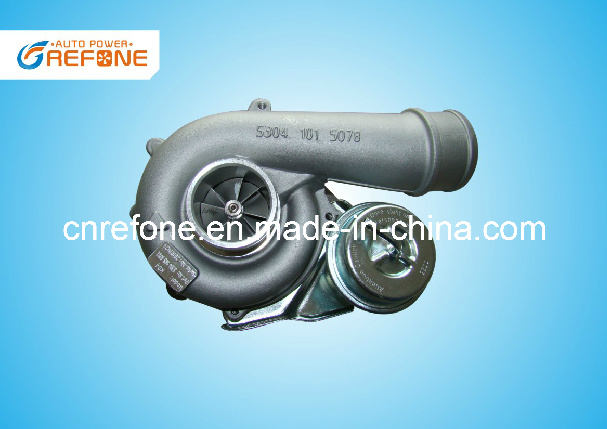

KKK K04 53049880022 06A145704P AMK engine turbocharger for Audi S3/TT
Products Details:
Part Number: 53049880022
OE number: 06A145704P
Year: 1999-2012
Description: Cars TT / S3
Manufacturer Part Number: 53049700022
CHRA: 53047100507
Turbo Model: K04-2275ECD5.82KCAXH
Displacement: 1.8L V5 quer / transverse
Engine: AMK, AMK APX
KW: 155
RPM Max: 5900
Fuel: Gasoline
Angle α (compressor housing): 305
Angle β (turbine housing): 190
Bearing housing (water-cooled): 53041500015 $68.40
Turbine Wheel: 53041205015
Comp. Wheel(milled titanium): 53041232015/53041232013/53041232203
Back plate: 53041515708
Heat Shield: 53041652000
Repair Kit: 53037110000
Turbine Housing: 53041008003
Compressor Cover: 53041015030
Turbine Housing AR: 5
Actuator: 58251104082
Settings Waste gate (pressure): 0.50 bar
Settings Waste gate (lift shaft): 5.50 mm
Gasket (turbine inlet): 210646
Gasket (turbine outlet): 210676
Gasket (oil outlet): 210317
ManufacturerBorg Warner - 3K - Schwitzer
Condition Rebuilt
Applications:
1999-2012 Audi S3, TT with AMK Engine
Our Service:
1.12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
5. Welcome to contact us! We will feedback within 24 hours!
Company Imformation:
Refone Auto Power Co., Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading. Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Our products have been exported to America, Latin America, Japan, Europe, Australia and Southeast Asia. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.
We Also Provide:
Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC
GT TA TB TO K03 K04 K14 K16 K24 K26 K27 K29 K31 K33 BV43 KP35 KP39
TDO TFO CT RHB RHC RHF RHG H1C H2C H1E WH1C WH1E H2D HX HY
HE HP 4LE 4LGZ S 3LM-319 J08C HT12 HT18 PC200 SJ KTR
Why Choose Us:
1.1 Year quality warranty.
2. High speed balancing tested.
3. Meeting customers' needs.
4. Convenient and effective after-sales service.
Contact Us Now:
Refone Auto Power Co., Ltd
Tina Meng
Tel: +86 551 65617152
Fax: +86 551 65613152
|
Part Number |
53049880022 |
|
OE number |
06A145704P |
|
Description |
Audi S3, TT with AMK Engine |
|
Turbo Model |
k04 |
|
Engine |
AMK, AMK APX |
|
Fuel |
Gasoline |
|
Displacement |
1.8L V5 quer / transverse |
|
KW |
155 |
|
RPM Max |
5900 |
|
Manufacturer |
Borg Warner - 3K - Schwitzer |
