Kit Motor Bicycle

Name: Kit Motor Bicycle
Brand: ibuyautoparts.com
SKU: 734129142
Availability: InStock
Rating: 4.6 (29 reviews)

Price:	US $ 56/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Original Color

Dimensions required for bicycle frames

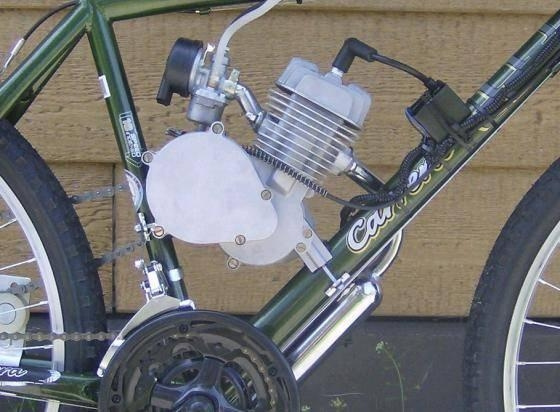

80cc engine kit is about 8.5" height 7" length 5" width. Kit fits on standard 25mm to 29mm frame tube. Larger frame size requires drilling into bike frame and use the universal face plate. Ensure proper fit by reviewing the minimum dimension requirements diagram on the right.

Specification for Center Mount 2 Stroke Motor

Model	WP50	WP60	WP80
Engine Type	2 stroke, one cylinder, air cool
Bore*Stroke	40*38	45*38	47*38
Displacement	48cc	61cc	66cc
Rated Power	1.6HP/5000r/m	2.7HP/5000r/m	3.0HP/5000r/m
Igniton	CDI
Start	Pedal Start
Clutch Type	Rub Block Drying
Compression Ration	8:1
Spark Plug	z4c 14mm
Fuel Comsuption	1.5L/100km	2L/100km	2.5L/100km

Color Available for the motors

1. sliver 2. black . 3 red

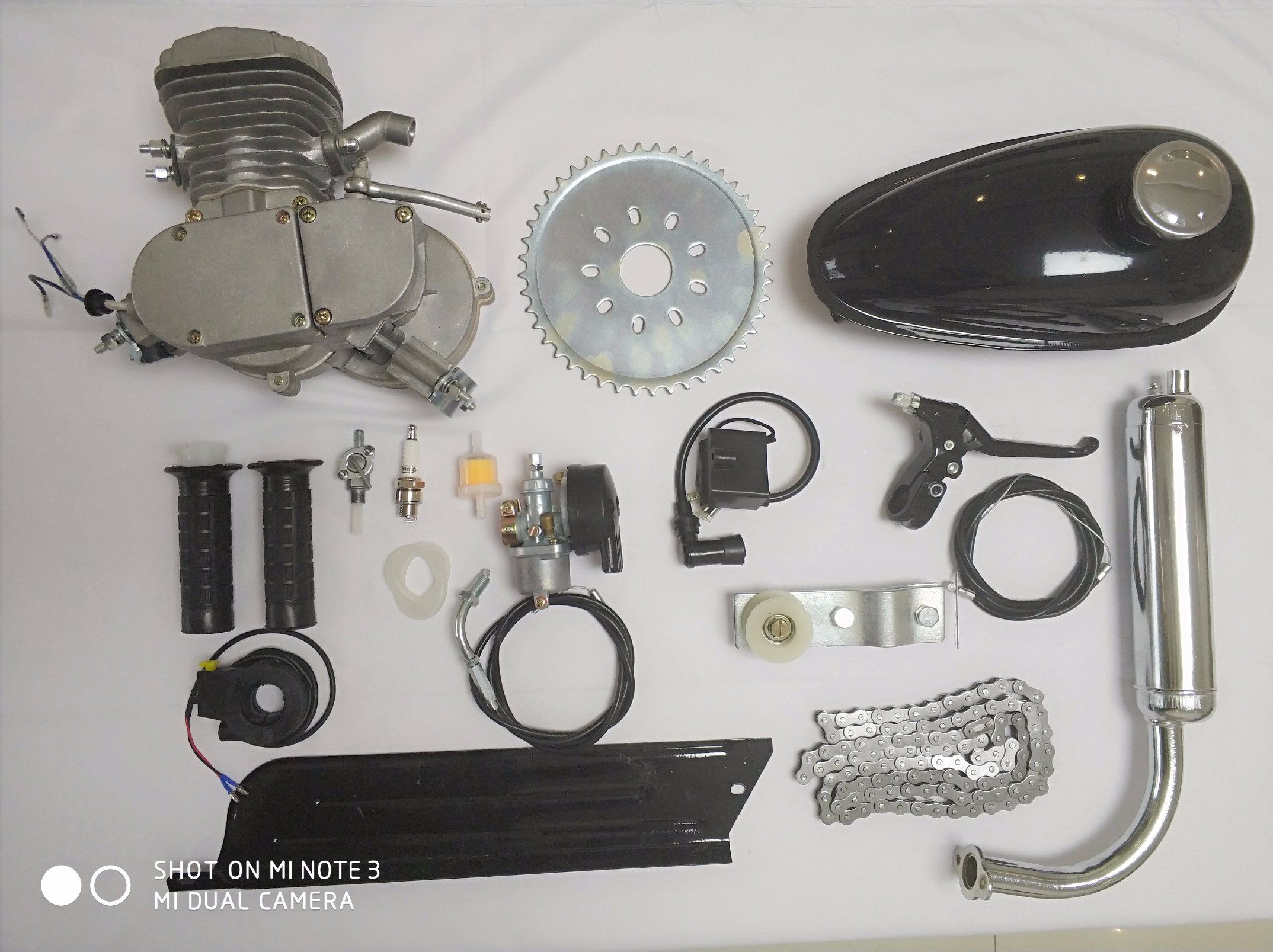

Package includes

   1. Silver / Black/ Red Motors 48/61/80cc 2-Stroke None-EPA Apporved Engine

   2. Low Profile Carburetor

   3. Upgraded Hush Muffler

   4. Clutch Cable

   5. Drive Chain Idler

   6. High Quality Japanese Main Bearings

   7. 410 Bike Chain

   8. Upgraded Chain Tension Guide with Bearing Wheel

   9. Chain Guard

   10. Spark Plug

   11. CD Ignition Coil

   12. Upgraded Alloy Push Clutch Lever

   13. Upgraded Twist Throttle and Cable With Grip

   14. Universal Mounting U-Bracket

   15. Black Teardrop Gas Tank (1.5L)

   16. Fuel Line

   17. Throttle Cable

   18. Clutch Cable

   19. Gasoline Tank Switch

   20. Sprocket Clamp Assembly

   21. Sprocket Clamp Bolts

   22. Large Spring (Heat Shield Spring)

   23. Extension Spring (Recoil Spring)

   24. High Quality Needle Bearings on Both Ends Crank

   25. 44 Tooth Zinc Sprocket with 9 Holes

   26. Magneto

   27. Kill Switch

   28. Bonus: Spark Plug Removal Tool

   29. All the Needed Mounting Brackets, Gaskets, and Hardware

   30. Complete Easy to Follow Installation Instructions

Certification:	ISO9001：2000

WOODPECKER is a private owned factory studying, researching and producing small motors suitable for bicycles. Started in 2005, WOODPECKER is growing very quickly, and now own a large facility.

Almost any bicycle engine kits, like regular 2 stroke 48cc kit, 2 stroke 80cc kits, 4 stroke kit with chain transition, 4 stroke kit with rubber belt transtion are available from us. The engines with reed valve are offered as well. Any special parts like CNS cylinder heads, chain ilders with spring, CNS mainfold also can be supplied. For the motors, different colors like black, red, blue are optional. WOODPECKER's production capacity is more than 40, 000 sets of sorted bike engine kits.

If you can not find some parts, welcome you contact us! If you want to reduce your purchasing cost, please contact us!

Mr Peter is here waiting for you!
