| Prod Model: |
K24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Turbine Shaft Material: |
K18 |
| Bearing Housing: |
Oil Cooled |
| Chra No.: |
53277100170 |
| Gross Weight: |
10kg |
| Engine Code: |
Om924la |
| Packing Size: |
20*20*20cm |
| Certification: |
CCC |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Brand: |
Refone |
Product Description

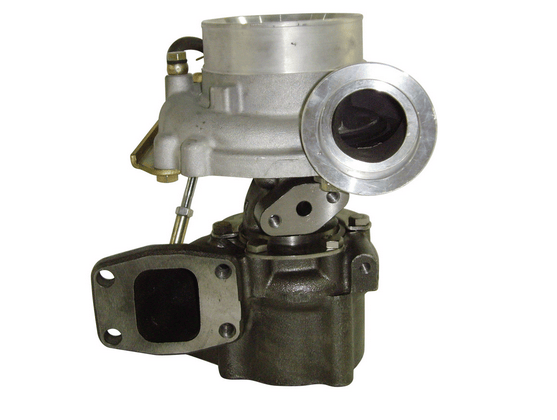

Δ K24 53249887114 turbocharger specs
| Part Number |
53249887107
|
| Previous Version |
5324-988-7107, 5324 988 7107, 53249887101, 53249887102, 53249887103, 53249887104, 53249887105, 53249887106, 53249887107, 53249887108, 53249887111, 53249887112, 53249887113, 53249887114, 53249887118, 53249887120, 53249887208 |
| OE number |
9240960999, A9240960999, 924 096 0999; A 924 096 09 99
|
| Manufacturer Part Number |
5324-970-7107, 5324 970 7107, 53249707100, 53249707101, 53249707102, 53249707103, 53249707104, 53249707105, 53249707106, 53249707107, 53249707108, 53249707111, 53249707112, 53249707113, 53249707114, 53249707118 |
| Turbo Model |
K24-2671OXCKA6.81GBAWD
|
| Engine |
OM924LAE2, OM924LAE3, OM924LA E2, OM924LA E2-E3, OM924LA E3, OM924LA E4
|
| Displacement |
4.8L, 4800 ccm
|
| KW |
160/218
|
| RPM Max |
2200
|
| Fuel |
Diesel
|
| Angle α (compressor housing) | 278 |
| Angle β (turbine housing) | 180 |
| Bearing Housing | 53261500025 |
| Turbine Wheel (left-hand thread) | 53241205016 |
| Comp. Wheel (milled aluminium) | 53261232211 |
| Back plate |
53261515718
|
| Heat Shield |
53261652007
|
| Repair Kit |
53167110009
|
| Turbine Housing | 53241009034 |
| Compressor Cover | 53261013005 |
| Actuator |
58201104166
|
Δ Applications
MERCEDES BENZ OM924LA
Δ What we do
Refone Auto Power Co., ltd is professional manufacturer and exporter of auto spare parts turbochargers, turbo parts&accessories and other engine pars.
Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service
We are looking forward to build long business relationship with international friends.
Δ Why choose us
1.We have been in turbochager business for many years to meet the customer various reuqest of turbocharger and parts ,with the most competitive price & quality.
2.All turbocharger and cartridges balance tested by the "TURBO TECHNICS" imported from the UK.
3.Developing new turbo or parts according to customer's samples
4.Sample order accepted and we have warranty for official orders.
Δ K24 turbocharger
P/N
| OEM No. | Application |
53249886706
53249706706
| 35242071F | 1996-08 VM Ship
Engine : MD704LI |
53249706405
53249886405
|
4848601
99446021
2992392
|
1995-05 Ford Truck
Iveco-Fiat EuroCargo 75.14
2002-09 Iveco-Fiat EuroCargo
Engine:8040.45.4300 |
53249887000
53249887002
53249707000
53249707002
|
034145703B
034145703A
034145702
034145702X
034145702V
| 89-01 Audi 200 Quattro 20V
Audi S2
1992-1996 Audi 80 2.2L
1990-1996 Audi S2 Coupe (B3)
1994-1997 Audi S6 2.2L |
53249887122
53249887120
53249707122
53249707120
| 9240962299 A9240962299 | 2007-2010 Mercedes Benz Truck
Engine : OM924LA |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
