K04 Turbo 53041008003 53049880022 53049700022 Turbine Housing 06A145704P For Audi TT/S3
1.Product Description | Part Number | 53049880022 |
| Previous Version | 5304-988-0022, 5304 988 0022 |
| OE number | 06A145704P |
| Year | 1999-12 |
| Description | Audi TT, S3 |
| Manufacturer Part Number | 53049700022, 5304-970-0022, 5304 970 0022 |
| CHRA | 53047100507 (5304-710-0507) |
| Turbo Model | K04-2275ECD5.82KCAXH |
| Displacement | 1.8L V5 quer / transverse |
| Engine | AMK, AMK APX |
| KW | 155 |
| RPM Max | 5900 |
| Fuel | Gasoline |
| Angle α (compressor housing) | 305 |
| Angle β (turbine housing) | 190 |
| Bearing housing (water-cooled) | 53041500015 |
| Turbine Wheel | 53041205015 |
| Comp. Wheel(milled titanium) | 53041232015/53041232013/53041232203 |
| Back plate | 53041515708 |
| Heat Shield | 53041652000 |
| Repair Kit | 53037110000 |
| Turbine Housing | 53041008003 |
| Compressor Cover | 53041015030 |
| Turbine Housing AR | 5 |
| Actuator | 58251104082 |
| Settings Waste gate (pressure) | 0.50 bar |
| Settings Waste gate (lift shaft) | 5.50 mm |
| Gasket (turbine inlet) | 210646 |
| Gasket (turbine outlet) | 210676 |
| Gasket (oil outlet) | 210317 |
| | |
Interchangeable with 53049880020

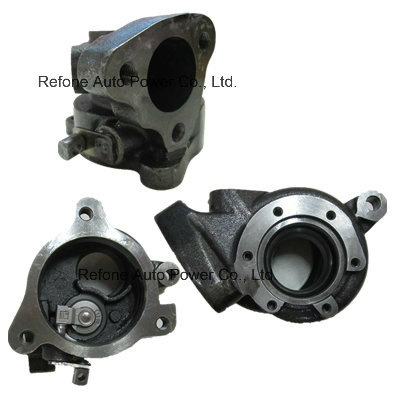

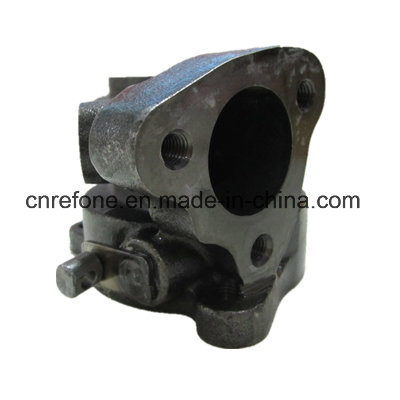

2. Photos:
3.Applications1999-12 Audi S3 1.8 T with AMK Engine
1999-12 Audi TT 1.8 T (8N) with AMK APX Engine
2002-03 Seat Leon 1.8 T Cupra R with AMK Engine
4. Packing & Shipping
1)TNT,DHL,FEDEX,UPS,EMS
2)By sea ,by air
3)Take your requirements into consideration
5. Company Information
REFONE TURBO is a group company which engaged in turbocharger and turbo parts manufacturing and exporting.Quality is our culture.We are engaged to provide best service for all our customers.
Our teams are excellent technical engineers and experienced sales. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly.
We are looking forward to build long business relationship with worldwide friends.
6. Our Service
1.12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
5. Welcome to contact us! We will feedback within 24 hours!
7. Contact:
Refone Auto Power (Heifei) Co.,ltd
www.refoneturbo.com
Tel:+86 551 65617152 Fax:+86 551 65613152
| Turbo Model | Reference No. | Application |
| K03 | Part No.:5303 988 0005 OEM:058 145 703E/H/L | V W Passat 1.8T |
| K03 | Part No.:5303 988 0029 OEM:058 145 703J/N | AUDI A4/A6 1.8T,Passat 1.8T |
| K03 | Part No.:5303 988 0011 OEM:06A 145 703A/B/G | AUDI A3 1.8T,SKODA Octavia 1.8T,Golf/Bora 1.8T |
| K03 | Part No.: 5303 988 0025 OEM:058 145 703K | AUDI A4/A6 1.8T,Passat 1.8T |
| K03 | Part No.: 5303 988 0026 OEM:06A 145 713K | AUDI A3 1.8T |
| K03 | Part No.:5303 988 0035 OEM:06A 145 704B | AUDI TT 1.8/5V |
| K03 | Part No.: 5303 988 0044 OEM:06A 145 704L | VW New Beetle 1.8T |
| K03 | Part No.: 5303 988 0045 OEM:06A 145 704K | Seat lbiza Cupra 1.8T |
| K03 | Part No.: 5303 988 0049 OEM: | Seat Alhambra 1.8T |
| K03 | Part No.: 5303 988 0052 OEM:06A 145 704T/713D | AUDI A3 1.8T,TT 1.8/5V,Seat Leon 1.8T |
| K03 | Part No.: 5303 988 0053 OEM:06A 145 704S/713L | AUDI A3 1.8T,Skoda Octavia 1.8T,Golf/Bora 1.8T |
| K04 | Part No.:5304 988 0001 OEM:914F6K682AF/AG | Ford Transit FT 190 2.5DI |
| K04 | Part No.:5304 988 0015 OEM: | AUDI A4 |
