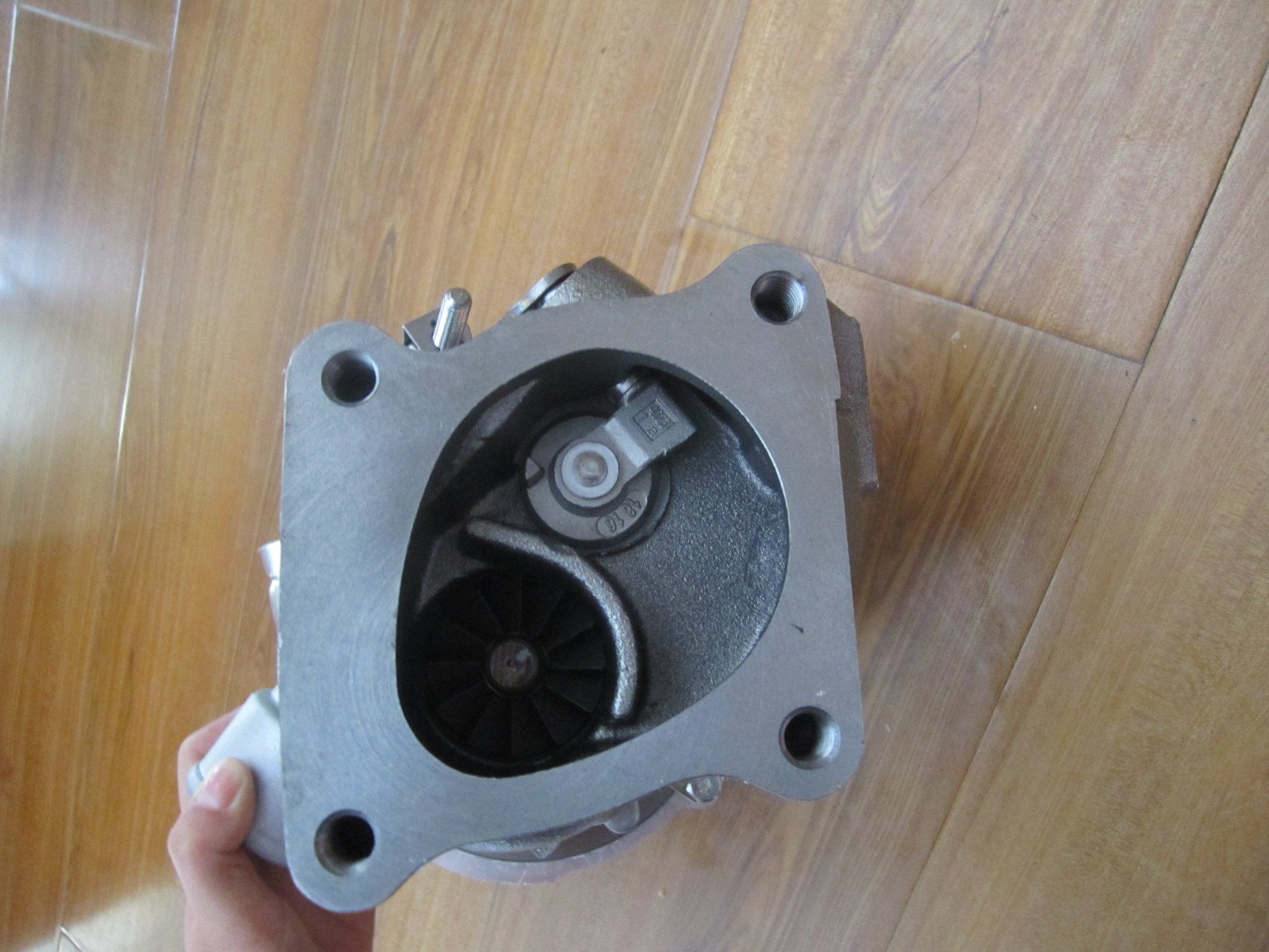

K04-2275ecd5 53049880025 Turbocharger for Audi RS4 V6 Bi-Turbo, Audi A4 Left Side

Name: K04-2275ecd5 53049880025 Turbocharger for Audi RS4 V6 Bi-Turbo, Audi A4 Left Side
Brand: ibuyautoparts.com
SKU: 813910465
Availability: InStock
Rating: 4.3 (24 reviews)

Price:	US $ 130-149/Piece
Min Order:	4/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

℗ 53049880025 Turbocharger Spec.

Part Number	53049880025
Previous Version	5304-988-0025, 5304 988 0025
OE number	078145701M, 078145703M, 078145703MX, 078145703MV
Year	2000-05
Description	Audi RS4 V6 Bi-turbo, Audi A4 Left Side
Manufacturer Part Number	53049700025, 5304-970-0025
CHRA	53047100510(5304-710-0510) (1302004910, 1000030114)
Turbo Model	K04-2275ECD5.82KCAXH, K04-2078EYE4.82KCAXM
Engine	ASJ / AZR
Displacement	2.67L, 2671 ccm , V6 Cylinders
KW	280/380
RPM Max	6100
Fuel	Gas
Angle a (compressor housing)	105.2
Angle β (turbine housing)	217.1
Bearing housing	53041500015/53041500009/53041500006/53041500017
Turbine Wheel	53041205015/53041205010
Comp. Wheel	53041232021/53271232309/53271232201
Back plate	53041515712/53041515712A (1302003304, 1300016034B)
Heat Shield	53041652000 (1302003341)
Repair Kit	53037110000 (1302000752, 5000040103)
Turbine Housing	53041009030
Compressor Cover	53041015101
Actuator	58251104085
Turbine Housing AR	4
Settings Waste gate (pressure)	0.5 Bar
Settings Waste gate (lifting rod)	2.0 mm
Gasket (turbine inlet)	210646
Gasket (turbine outlet)	210676
Gasket (oil outlet)	210317
Manufacturer	Borg Warner - 3K - Schwitzer

Applications
2000-05 Audi RS4 V6 Biturbo Left Side with ASJ/AZR Engine
2000-05 Audi A3 with AZR/ASJ Engine

Δ What we do

Refone Auto Power Co., ltd is professional manufacturer and exporter of auto spare parts turbochargers, turbo parts & accessories and other engine pars.

Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service.

All turbochargers and cartridges balance tested by the "TURBO TECHNICS" imported from the UK.

Samples are available. Your testing request is welcome. We always bring you the best using experience.

We are looking forward to build long business relationship with international friends.

Prod Model:	K04-2275ECD5
Turbo Model:	K04-2275ecd5.82kcaxh, K04-2078eye4.82kcaxm
Part Number:	53049880025
Chra:	53047100510(5304-710-0510) (1302004910, 1000030114
Engine:	Asj / Azr
Displacement:	2.67L, 2671 CCM, V6 Cylinders
Type:	ETS Exhaust-Gas-Turbo-Super-Charger
Body Material:	Iron
Certification:	ISO9001

Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.

Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.

The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.

Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
