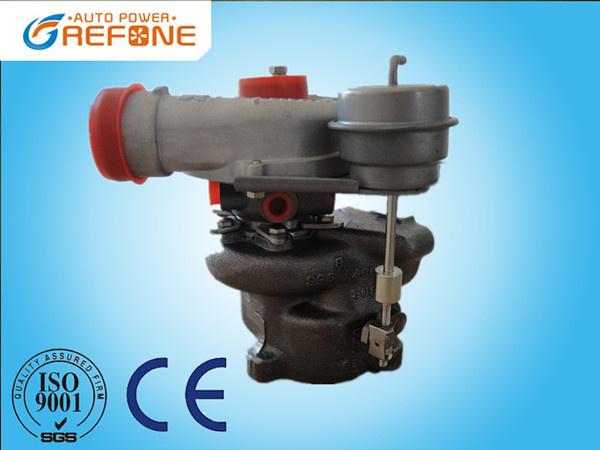

K03 Turbocharger for VW Passat 53039880029 1.8T Engine APU, ARK
Product Description
Part Number | 53039880029 |
| Previous Version | 5303-988-0029, 5303 988 0029 |
| OE number | 058145703J, 058145703JX, 058145703JV, 058145703N |
| Year | 2000-05 |
| Description | Audi, Volkswagen |
| Manufacturer Part Number | 53039700029, 5303-970-0029, 5303 970 0029 |
| CHRA | 53037100511 (5303-710-0511) |
| Turbo Model | K03-2072GAA5.88KCAXK, k03-005 |
| Engine Model | 1.8-5V longs, along |
| Displacement | 1.8L, 1781 ccm, 4 Cylinders |
| KW | 110 |
| RPM Max | 5500 |
| Fuel | Gasoline |
| Angle a (compressor housing) | 160º |
| Angle ß (turbine housing) | 150º |
| Bearing housing | 53041500006/53041500017 |
| Turbine Wheel | 53031205023/53031205037 |
| Comp. Wheel | 53041232018/53041232007 |
| Back plate | 53041515702 |
| Heat Shield | 53031652000 |
| Repair Kit | 53037110000 |
| Turbine Housing | 53031009060 |
| Compressor Cover | 53041015003 |
| Actuator | 58251104075 |
| Turbine Housing AR | 5 |
| Settings Waste gate (pressure) | 0.370 bar |
| Settings Waste gate (lifting rod) | 4.00 mm |
| Gasket (turbine inlet) | 210337 |
| Gasket (turbine outlet) | 210242 |
| Gasket (oil outlet) | 210317 |
| Condition | Rebuilt |
Applications
1998-99 Audi A4 1.8T (B5) Engine Code APU, ARK
2002-05 Audi A4 1.8T (B6) Engine Code BFB
1998- Audi A6 1.8T (C5) Engine Code APU, ARK
1996-00 Volkswagen Passat B5 1.8T Engine Code APU, ARK
2000-05 Audi A4 with AMG, AWM, ATW, AUG Engine
2000-05 Volkswagen Passat with AMG, AWM, ATW, AUG Engine
Our company products cover all popular makes and applications of turbo as followed:
Garrett:GT12, GT15-25, GT37-40, GT42-45, GT50-UTV-BTG, GT60, T2, T3, T04B-E, T04S , T12-60, T18-18A, T2-T25-T28, T3, TA45-51, TL-V-W, TV91-94
KKK:3LD, 4HD-MD, K03-04, K14-16, K24, K26, K27, K28-29, K31, K33, K36-37, KP/BV31-39
Schwitzer:3LD, 4HD-MD, 4LE-F-G, B2, S1B, S200, S2A, S2B-C-E, S3-3A, S300, S3B, S400, S4D, S4T, S500
MHI:TC04, TC06, TD02-03, TF035, TD04, TD05-06, TD07-08, TD13,
IHI:RHB3, RHB5-51, RHB6, RHB7, RHC6, RHC7, RHF3, RHF4, RHF5, RHF55, RHG8
Toyata:CT, CT9, CT12, CT12B, CT20, CT20B, CT26, Yaris
Hitachi:HT06, HT07, HT10-12, HT15, HT18, HT20, HT25
Other:K27, K36, K36V, C12, C13, C14, C15
Company Description
Refone is a group company which engaged in turbocharger and turbo parts manufacturing and exporting.
Our teams are excellent technical engineers and experienced sales. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly.
We are looking forward to build long business relationship with worldwide friends.
Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Advantage
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Produce turbo as customer's requirment.
Our After-sale Service
1. Take photos, sending back for testing
2. Send new turbo to customer
Welcome to inquire! We will feedback within 24 hours!
Contact us
Gavin wang
Tel: 86055165617152
Fax: 86055165613152
Mobile: 8618133658726
K03 | 53039880009 | 99-03 Citroen Xantia HDI with DW10TD Engine
99-03 Peugeot 206 HDI with DW10TD Engine
99-03 Peugeot 406 HDI with DW10TD Engine |
| K03 | 53039880011 | 1997-1998 Volkswagen Golf IV 1,8 Engine AGU
2000-2005 Volkswagen Bora 1,8T Engine AVC,APH,AGU
1999-2000 Volkswagen Beetle 1,8T Engine AVC,APH,AGU
1997-2000 Skoda Octavia I 1.8 T Engine AGU
1996-2003 Audi A3 1.8 T (8L) Engine AGU, ALN, ARZ |
| K03 | 53039880014
53039880038 | 00-07 Renault Espace 1.9 dTi Car with F9Q710/716/722/734 Engine
99-09 Renault Clio 1.9 dTi Car with F9Q710/716/722/734 Engine
00-07 Renault Laguna 1.9 dTi Car with F9Q710/716/722/734 Engine
00-07 Renault Megane 1.9 dTi Car with F9Q710/716/722/734 Engine
99-09 Renault Kangoo 1.9 dTi Car with F9Q710/716/722/734 Engine |
| K03 | 53039880015 | 1996-1998 Audi A3 1.9L TDI (8L) Engine AGR
1997-2000 Skoda Octavia I 1.9 TDI Engine AGR
1997-2001 Volkswagen Bora 1.9 TDI Engine AGR
1997-2001 Volkswagen Golf IV 1.9 TDI Engine AGR
1996-2010 Volkswagen Golf IV/Bora/New Beetle TDI |
| K03 | 53039880016 | 97-01 Audi A6 with AJK, ARE, BES, AGB Engine
97-01 Audi A6 Allroad with AJK, ARE, BES, AGB Engine
97-01 Audi S4 with AJK, ARE, BES, AGB Engine |
| K03 | 53039880017 | 97-01 Audi A6 with AJK, ARE, BES, AGB Engine
97-01 Audi A6 Allroad with AJK, ARE, BES, AGB Engine
97-01 Audi S4 with AJK, ARE, BES, AGB Engine |
| K03 | 53039880018 | 98-07 Citroen Xantia HDI with DW10ATED Engine
98-07 Peugeot 406 HDI with DW10ATED Engine |
| K03 | 53039880025 | 99-01 Audi A4 / A6 Car with 1,8-5V langs/along Engine
99-01 Volkswagen Passat Car with 1,8-5V langs/along Engine |
| K03 | 53039880026 | 1998-2000 Audi A3 1.8L T (8L) Engine AQA / AJQ
1998- Audi TT 1.8L T (8N) Engine AJQ APP
1998-2000 Seat Leon 1.8 T Engine AQA / AJQ
1997- Volkswagen Golf IV 1,8LT Engine AQA
1998- Volkswagen Golf IV 1,8T Engine AGU |
| K03 | 53039880029 | 1998-1999 Audi A4 1.8T (B5) Engine Code APU, ARK
2002-2005 Audi A4 1.8T (B6) Engine Code BFB
1998- Audi A6 1.8T (C5) Engine Code APU, ARK
1996-2000 Volkswagen Passat B5 1.8T Engine Code APU, ARK
2000-05 Audi A4 with AMG, AWM, ATW, AUG Engine
2000-05 Volkswagen Passat with AMG, AWM, ATW, AUG Engine |
| K03 | 53039880034
53039880075 | 2001-03 Iveco Commercial Daily 2.8L TD with 8140.43 Euro 3/2,8CR-S2000 Engine
1999-05 Opel Commercial Movano 2.8L DTI with 8140.43 Euro 3/2,8CR-S2000 Engine
1999-05 Renault Commercial Master 2.8L dTi with 8140.43 Euro 3/2,8CR-S2000 Engine |
| K03 | 53039880044 | 2001 Volkswagen Commercial Bora with 5V quer/transversal Engine
99-03 Volkswagen New Beetle with 5V quer/transversal Engine |
| K03 | 53039880049 | 00-04 Seat Alhambra Car with AWC Engine
00-04 Volkwagen Sharan Car with AWC Engine |
| K03 | 53039880050 | 2001 Citroen C5 HDI Car with DW10ATED FAP Engine
99-03 Citroen Xantia HDI with DW10ATED FAP Engine
99-03 Peugeot 406 HDI with DW10ATED FAP Engine
2001 Peugeot 607 HDI with DW10ATED FAP Engine |
| K03 | 53039880051 | 00-08 Suzuki Vitara Grand 2.0L TD with DW10ATED Engine
00-08 Geo Tracker with DW10ATED Engine |
| K03 | 53039880052 | 00-09 Audi A3 with AUQ, ARZ Engine
00-09 Audi TT with AUQ, ARZ Engine
00-09 Seat Leon with AUQ, ARZ Engine
00-05 Seat Leon Cupra with AUQ, ARZ Engine
00-09 Skoda Octavia with AUQ, ARZ Engine
00-09 Volkswagen Golf/Bora/Jetta with AUQ, ARZ Engine |
| K03 | 53039880053 | |
| K03 | 53039880055 | 2001 Renault Commercial Master 2.5L dCi with G9U720 Engine
2001 Opel Cars Movano 2.5 DTI with G9U720 Engine |
| K03 | 53039880057 | 2000- Citroen C4 2.0L HDi with DW10ATED FAP Engine
2002- Citroen Xsara 2.0L HDi with DW10ATED Engine
200- Peugeot 206, 307 2.0L HDi with DW10ATED FAP Engine |
| K03 | 53039880058 | 00-05 Audi A3 with 1.8L-5V langs,along Engine
00-05 Skoda Octavia with 1.8L-5V langs,along Engine
00-05 Volkswagen Golf IV, Bora with 1.8L-5V langs,along Engine
00-05 Volkswagen New Beetle with 1.8L-5V langs,along Engine |
| K03 | 53039880062 | 2001-2010 Peugeot Commercial Boxer with DW12UTED Engine
2001-2010 Citroen Cars Jumper with DW12UTED Engine |
| K03 | 53039880070 | 2002- Audi A6, Allroad 2.7L TDI Biturbo right side Engine 2,7L, V6, 5V |
| K03 | 53039880090 | 2003-2010 Iveco Commercial Ducato 2.3 TD with F1AE0481C Engine
2003-2006 Fiat Ducato II 2.3 TD Engine F1AE0481C |
| K03 | 53039880096 | 2004-08 Ford (Otosan) Commercial Transit Puma |
