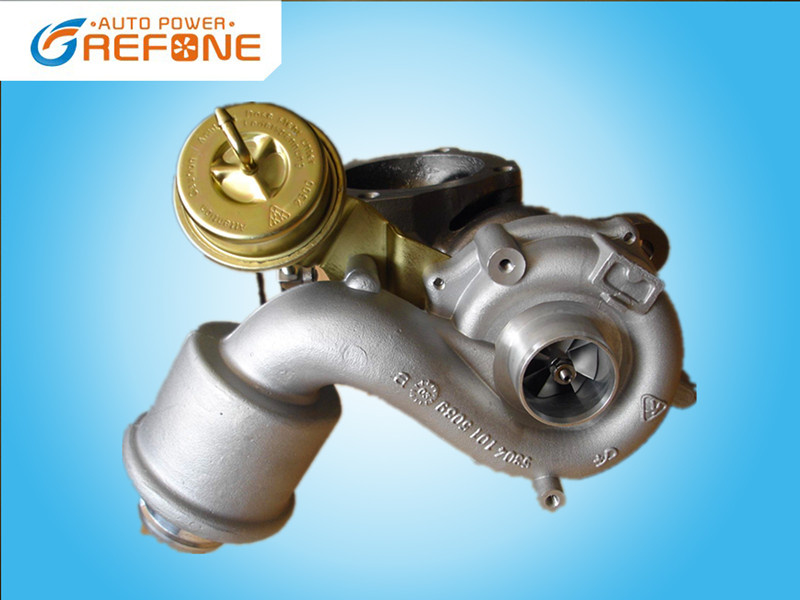

Δ K03 53039880052 turbochager specs
| Part Number |
53039880052
|
| Previous Version |
5303-988-0052, 53039880094, 5303-988-0094
|
| OE number |
06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F
|
| Year |
2000-09
|
| Description |
Audi, Seat, Skoda, Volkswagen
|
| Manufacturer Part Number |
53039700052, 53039700094, 5303-970-0052, 5303-970-0094
|
| CHRA |
53037100516 (5303-710-0516)
|
| Turbo Model |
K03-2075EYD5.88KCAXH
|
| Engine |
AUQ, ARZ, APP
|
| Displacement |
1.8L, 1781 ccm, 4 Cylinders
|
| KW |
132/180 HP
|
| RPM Max |
5500
|
| Fuel |
Gasoline
|
| Angle α (compressor housing) | 266.5 |
| Angle β (turbine housing) |
183.5
|
| Bearing Housing |
53041500017
|
| Turbine Wheel |
53031205023
|
| Comp. Wheel |
53041232029
|
| Back plate |
53041515712
|
| Heat shield Number |
5303-652000
|
| Repair Kit |
53037110001
|
| Turbine Housing |
53031009078
|
| Compressor Cover |
53041015017
|
| Turbine Housing AR |
5
|
| Actuator |
58251104084
|
| Settings waste gate (pressure) | 0.48 bar |
| Settings Waste gate (lift shaft) |
4.0 mm
|
Δ Application
00-09 Audi A3 with AUQ, ARZ Engine
00-09 Audi TT with AUQ, ARZ Engine
00-09 Seat Leon with AUQ, ARZ Engine
00-05 Seat Leon Cupra with AUQ, ARZ Engine
00-09 Skoda Octavia with AUQ, ARZ Engine
00-09 Volkswagen Golf/Bora/Jetta with AUQ, ARZ Engine
Δ Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable
5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive
Δ Our service
1. Quality Warranty: 12 months for official orders
2. Developing all turbo or turbo parts according to customer's samples
3. Quick delievery and reliable aftersale support
Δ REFONE k03 turbochargers
K03
|
5303-970-0005
|
058145703L
|
VW
|
A4/A6 1.8T
|
1.8
|
K03
|
5303-970-0007
|
6010960099
|
M-BENZ
|
Vito 2.3L,1996-1999
|
OM601
|
K03
|
5303-970-0008
|
2M59082
|
BMC
|
Levend
|
T18
|
K03
|
5303-970-0009
|
9633382180
|
CITROEN
|
Xantia HDI
|
DW10TD
|
K03
|
5303-970-0010
|
9633647480
|
PEUGEOT
|
306
|
XUD9TE ECO
|
K03
|
5303-970-0014
|
7700108948
|
RENAULT
|
Espace 1.9 dTi
|
F9Q710/716/722/734
|
K03
|
5303-970-0016
|
|
AUDI
|
S4
|
2.67L / G
|
K03
|
5303-970-0019
|
6680960199
|
M-BENZ
|
A160 CDI
|
OM668DE17A
|
K03
|
5303-970-0029
|
058145703J
|
VW
|
A4/A6 1.8T
|
1.8
|
K03
|
5303-970-0038
|
7700115414
|
RENAULT
|
Clio 1.9 dTi
|
F9Q780
|
K03
|
5303-970-0048
|
8200084399
|
RENAULT
|
Laguna 1.9 dCi
|
F9Q-732/733/740/751
|
K03
|
5303-970-0052
|
06A145704T
|
AUDI
|
A3 1.8T
|
1.8
|
K03
|
5303-970-0053
|
06A145704S
|
AUDI
|
A3 1.8T
|
1.8-5V quer/transversal
|
K03
|
5303-970-0054
|
500364493
|
CITROEN
|
Jumper 2.8 HDI
|
8140-43-2200 Euro 3
|
K03
|
5303-970-0055
|
8200036999
|
RENAULT
|
Movano 2.5 DTI
|
G9U720
|
K03
|
5303-970-0066
|
504014911
|
IVECO
|
Daily 2.3 TD
|
2.3-F1A Euro 3
|
K03
|
5303-970-0081
|
500364493
|
CITROEN
|
Jumper 2.8 HDI
|
8140-43-2200 Euro 3
|
K03
|
5303-970-0114
|
504136783
|
IVECO
|
SOFIM 2.3L
| |
