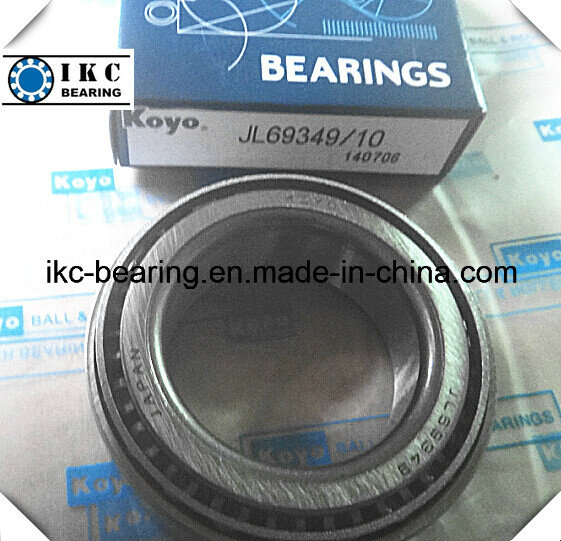

69349/69310 inch tapered roller bearing
1. Size: 38*63*17
2. Weight: 0.205
3. Good quality
KJL69349/KJL69310 Tapered roller bearings 38*63*17
Are separable. The correction of contact wire can reduce stress concentration. Tapered roller bearings can take large radial load and axial load. It can transfer one-way load only. When passing the opposite direction of axial load, it need to be installed another tapered roller bearing which is symmetrical with it.
Specifications
Taper roller bearing, wheel bearing for Japanese car: 68149/10, 69149/10, 11749/10,
38BDW12, 46T080604, DAC35680233, DAC3874W-6
Taper roller bearing, auto bearing, wheel bearing for Japanese car: 68149/10, 69149/1011949/10, 44649/10, 69349/10, 11749/10, 68149/10, 88048/10, 84548/10, 501349/10, 3982/3920, 29685/20
38BDW12, 46T080604-1, DAC35680233/30, DAC3874W-6, DAC3871W-3
Usage: FIAT, Ford, LANCIA. Renault19-21, Chrysler
Car Make: Renault, peugeot. Citroen, Renault
The bearings supplied to the original equipment market are also available for aftermarket repair The bearings can be found in, and are available, for applications such as Wheel, Clutch, Belt Tensioners and Transmissions, as well as other common automotive repair applications. Bearings are available for most domestic and import applications.
Tapered Roller Bearings
Automotive Hub Units
Other Enhanced Tapered Roller Bearings
Long Life Tapered Roller/KE, SH, HR & HRS
High Performance Series/LFT Bearings
Ball Bearings
Automotive Hub Units
DAC Automotive Wheel bearings
Double Row Ball Bearings
Tension/Idler Pulley Bearings
Water Pump Bearings
Clutch Release Bearings
Ceramic Ball Bearings
Roller Bearings
Needle Roller Bearings
Cylindrical Roller
The series of tapered roller bearings 30200 series, 30300 series, 32200 series, 32300 series, 32000 series, 33000 series, 32900 series| Dimension(mm) | Rated Load(N) | Model Number | Weight(kg) | | d | D | T | B | C | r1 | r2 | Cr | Cor | | 65 | 90 | 17 | 17 | 14 | 1 | 1 | 49000 | 86500 | 32913 | 0.323 | | 100 | 23 | 23 | 17.5 | 1.5 | 1.5 | 86500 | 132000 | 32013X | 0.646 | | 100 | 27 | 27 | 21 | 1.5 | 1.5 | 97500 | 156000 | 33013 | 0.76 | | 110 | 34 | 34 | 26.5 | 1.5 | 1.5 | 148000 | 218000 | 33113 | 1.32 | | 120 | 24.75 | 23 | 20 | 2 | 1.5 | 122000 | 151000 | 30213 | 1.18 | | 120 | 32.75 | 31 | 27 | 2 | 1.5 | 157000 | 202000 | 32213 | 1.55 | | 120 | 41 | 41 | 32 | 2 | 1.5 | 202000 | 282000 | 33213 | 2.04 | | 140 | 36 | 33 | 23 | 3 | 2.5 | 173000 | 205000 | 30313DJ | 2.43 | | 140 | 36 | 33 | 28 | 3 | 2.5 | 200000 | 233000 | 30313 | 2.51 | | 140 | 51 | 48 | 39 | 3 | 2.5 | 267000 | 340000 | 32313 | 3.6 | | 70 | 100 | 20 | 20 | 16 | 1 | 1 | 70000 | 113000 | 32914 | 0.494 | | 110 | 25 | 25 | 19 | 1.5 | 1.5 | 404000 | 158000 | 32014XJ | 0.869 | | 110 | 31 | 31 | 25.5 | 1.5 | 1.5 | 127000 | 204000 | 33014 | 1.11 | | 120 | 37 | 37 | 29 | 2 | 1.5 | 117000 | 262000 | 33114 | 1.71 | | 125 | 26.25 | 24 | 21 | 2 | 1.5 | 132000 | 163000 | 30214 | 1.3 | | 125 | 33.25 | 31 | 27 | 2 | 1.5 | 157000 | 205000 | 32214 | 1.66 | | 125 | 41 | 41 | 32 | 2 | 1.5 | 209000 | 299000 | 33214 | 2.15 | | 140 | 39 | 35.5 | 27 | 3 | 3 | 177000 | 229000 | T7FC070 | 2.55 | | 150 | 38 | 35 | 25 | 3 | 2.5 | 192000 | 229000 | 30314DJ | 2.94 | | 150 | 38 | 35 | 30 | 3 | 2.5 | 227000 | 268000 | 30314 | 3.03 | | 150 | 54 | 51 | 42 | 3 | 2.5 | 300000 | 390000 | 32314 | 4.35 | | 75 | 105 | 20 | 20 | 16 | 1 | 1 | 72500 | 120000 | 32915 | 0.53 | | 115 | 25 | 25 | 19 | 1.5 | 1.5 | 109000 | 171000 | 32015X | 0.925 | | 115 | 31 | 31 | 25.5 | 1.5 | 1.5 | 133000 | 220000 | 33015 | 1.18 | | 125 | 37 | 37 | 29 | 2 | 1.5 | 182000 | 275000 | 33115 | 1.8 | | 130 | 27.25 | 25 | 22 | 2 | 1.5 | 143000 | 182000 | 30215 | 1.43 | | 130 | 33.25 | 31 | 27 | 2 | 1.5 | 165000 | 219000 | 32215 | 1.72 | | 130 | 41 | 41 | 31 | 2 | 1.5 | 215000 | 315000 | 33215 | 2.25 | | 160 | 40 | 37 | 26 | 3 | 2.5 | 211000 | 251000 | 30315DJ | 3.47 | | 160 | 40 | 37 | 31 | 3 | 2.5 | 253000 | 300000 | 30315 | 3.63 | | 160 | 58 | 55 | 43 | 3 | 2.5 | 310000 | 420000 | 32315CA | 5.3 | | 160 | 58 | 55 | 45 | 3 | 2.5 | 340000 | 445000 | 32315 | 5.31 |
| 60series: | 6000-6220 sizes (2RS ZZ LU NR) | | 62series: | 6200-6220 sizes (2RS ZZ LU NR) | | 63series: | 6300-6320 sizes (2RS ZZ LU NR) | | 64series: | 6400-6420 sizes (2RS ZZ LU NR) | | 68series: | 6800-6820 sizes (2RS ZZ LU NR) | | 69series: | 6900-6920 sizes (2RS ZZ LU NR) | | 16000series: | 16001-1620 (2RS ZZ LU NR) | | Non-standard ball bearings | 60/22 60/28 60/32 62/22 62/28 62/32 63/22 63/28 63/32 (2RS ZZ LU NR) 98305 and 98205 According to the customer need long wide high dimensions. |
|
| Bearing No | Boundary dimensions (mm) | Weight (kg) |
| d | D | T |
| 32004 | 20 | 42 | 15 | 0.96 |
| 32005 | 25 | 47 | 15 | 0.115 |
| 32006 | 30 | 55 | 17 | 0.172 |
| 32007 | 35 | 62 | 18 | 0.227 |
| 32008 | 40 | 68 | 19 | 0.77 |
| 32009 | 45 | 75 | 20 | 0.329 |
| 32010 | 50 | 80 | 20 | 0.365 |
| 32011 | 55 | 90 | 23 | 0.55 |
| 32012 | 60 | 95 | 23 | 0.586 |
| 32013 | 65 | 100 | 23 | 0.627 |
| 32014 | 70 | 110 | 25 | 0.842 |
| 32015 | 75 | 115 | 25 | 0.887 |
| 32016 | 80 | 125 | 29 | 1.27 |
| 32017 | 85 | 130 | 29 | 1.33 |
| 32018 | 90 | 140 | 32 | 1.73 |
| 32019 | 95 | 145 | 32 | 1.8 |
| 32020 | 100 | 150 | 32 | 1.87 |
| 32021 | 105 | 160 | 35 | 2.38 |
| 32022 | 110 | 170 | 38 | 3.05 |
| 32024 | 120 | 180 | 38 | 3.2 |
| Greese/Oil | As you requirement, such as SRL ,PS2, Alvania R12 and so on |
| Series | Series 30200, 30300, 32200, 32300, 33000, etc. |
| Ring Material | Chrome Steel ,Carbon steel,Stainless steel |
| Tolerance grade | GB/T307.1-205 |
| ID Size | 10mm~280mm |
| Quality standard | ISO 9001:2000 standard |
| Precision | P0,P6,P5 |
| Steel pressed cage | Bending claw form or rivet form |
| Delivert Date | Normally ready goods and stock within 7 days |
| Application | Home appliances, low noise and high speed electric motors, automotive components, pumps, machinery. |
| Package | Single box or according to buyers requirement |
| Details |
We have complete process for the production and quality assurance to make sure our products can meet your requirement.
1.Assembly
2.Windage test
3.Cleaning
4.Rotary test
5.Greasing and gland
6.Noise inspection
7.Appearance inspection
8.Rust prevention
9.Product packaging |
