Product Description

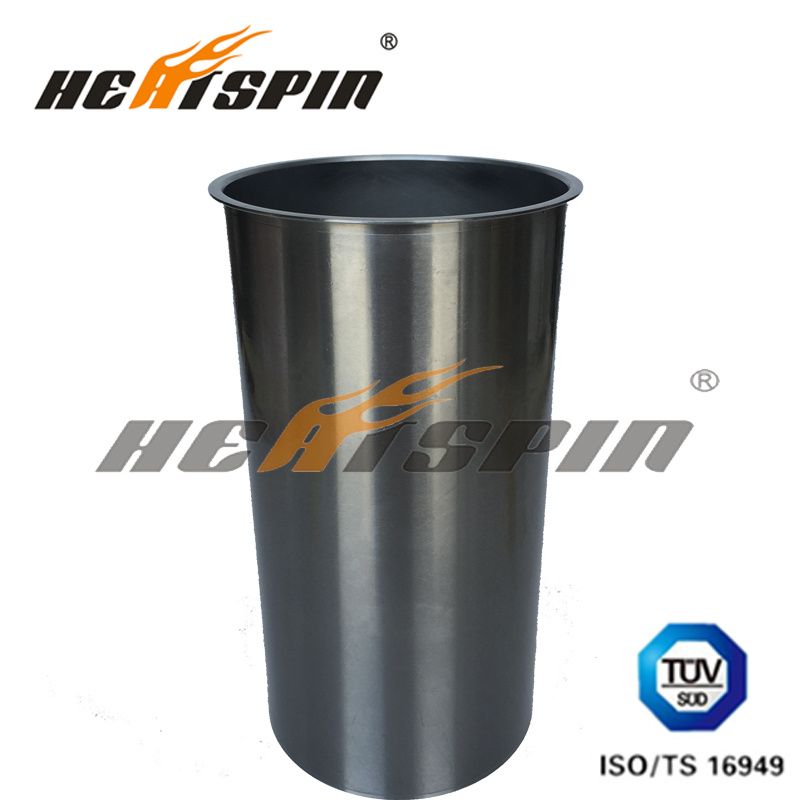

Isuzu 4JB1 Cylinder Liner/Sleeve 8-94247-861-0
FF chormed Isuzu 4JB1 cylinder liner
Cylinder Liner Specification:
| Engine Model | OEM No. | Packing | Delivery Time | Parameter(mm) |
| 4JB1 | 8-94247-861-0 | 1-6pcs/carton | 5-7days | Bore | 93.0 |
| TOTAL HEIGHT | 181.0 |
| Flange Dia. | 101.0 |
| Material | Steel |
| Treatment | Chromed |
Material: boron alloy, boron-copper chrome cast iron alloy, steel, etc.
Treating: phosphated, nitrided, laser treatment, quenching, chrome plated, etc.
Performance: high temperature resistance, high wear resistance, good dimensional stability.
Processing range: Diameter: 70mm-400mm
Packing details: Neutral or our own brand
Delivery time: 5days if stock, 35-50days for production
Warrenty: 80,000-400,000KM
Advantage:1) Yearly output capacity: piston 500,000pcs, sylinder-liners 300,000pcs, liner kits 12,000pcs and semi-finished product 500,000pcs.
2) Certification: TS16949, JB/T7295-94, JISD3103-1989 etc.
3) Brand: Heatspin or as to customers' option;
4) MOQ: 1pc if have stock;
5) Location: Our factory is located in Liaoning Province, very close to Beijing. Office and big warehouse is located in Guangzhou, near to Macau and Hongkong.
6) Delivery Time: 45-65 days for New order production, 5-7days for ready stocks
7) The percentage of our returned custom is 87%.
2. SERVICE1) Offering sample & drawing before production;
2) Quality guarantee: one year;
3) Making logo upon customers' needs;
4) Developing new models according to samples or drawings.
3. PACKAGE & SHIPPING1) Neutral Packing: Kraft paper+small box+big carton+Pallet;
2) Brand Packing: XYTOSAN packing or according to customers' requirements;
3) Transportation: by sea or by air(TNT, DHL, FEDEX, UPS, etc. ).

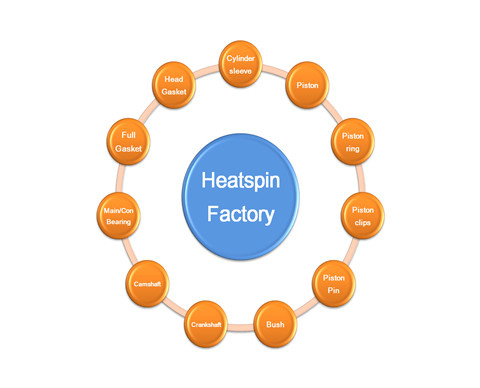

4. Brief IntroductionHaving had over 16 years experience in the field of auto parts, Hearspin can really say a word on the quality of its product. Heatspin mainly manufacturers Piston, Piston ring, Cylinder liner/sleeve, Gasket kit, Full gasket kit (including the head gasket and all necessary seal ), Cramshaft, Camshaft for these brands, such as Isuzu, Hino, Komatsu, Mitsubishi, Mazda, MMC, Nissan, Toyota, and so on.
CONTACT USHuludao Heatspin Autoparts Manufacturing Co., Ltd
WEB: http://www.heatspin.com.cn/
Contact: Sultine
TEL: +86-13710364884
FAX: +86-
Address: xinguangcong Auto parts Centre,No.113,north of Baiyundadao,Guangzhou city,Guangdong province,China
Other Engine models for Isuzu:
6BG1, C240, C190, C223, 4BC2, 4HF1, 4BE1, 6HH1, 6HK1, 10PD1, 10PE1, etc.
| Engine Model | OEM REF | No.Cyl | Cyl Diameter | Total Length |
| (mm) | (mm) |
| CYLINDER LINER ISUZU |
| C221 | 9-11261-253-1 | 4 | 83.0 | 174.0 |
| C190 | 9-11261-224-1 | 4 | 86.0 | 163.0 |
| C240 | 9-11261-230-1 | 4 | 86.0 | 178.0 |
| C223 | 5-11261-015-2 | 4 | 88.0 | 163.0 |
| 4JA1 | 8-94462-130-0 | 4 | 93.0 | 156.0 |
| 4JB1 | 8-94247-861-2 | 4 | 93.0 | 181.0 |
| 4JG1/4JG2 | 8-94456-791-0 | 4 | 95.4 | 178.5 |
| 4BA1 | 9-11261-802-2 | 4 | 98.0 | 180.5 |
| D500 | 9-11261-257-0 | 6 | 98.0 | 206.5 |
| A498B | | | 98.0 | 195.0 |
| 4BC1/4BC2 | 5-11261-014-2 | 4 | 102.0 | 187.0 |
| 6BB1/6BD1 | 1-11261-118-0 | 6 | 102.0 | 204.0 |
| 4BB1/4BD1 | | 4 | 102.0 | 204.0 |
| 4BE1 | 5-11261-016-2 | 4 | 105.0 | 187.0 |
| 6BF1/6BG1 | 1-11261-119-0 | 6 | 105.0 | 203.0 |
| 4BG1 | | 4 | | |
| DA120 | 9-11261-287-1 | 6 | 100.0 | 220.0 |
| DA220 |
| DA640A | 9-11261-302-0 | 6 | 102.0 | 220.0 (D116) |
| DA640B | 9-11261-293-0 | 6 | 102.0 | 220.0 (D119) |
| DA640C | 9-11261-288-0 | 6 | 102.0 | 228.0 (D119) |
| 6HE1 | 8-94396-332-0 | 6 | 110.0 | 210.0 |
| 6HE1T | 8-94390-530-0 | 6 | 110.0 | 210.0 |
| 4HE1T | 8-97176-728-0 | 4 | 110.0 | 210.0 |
| 4HF1 | 8-94396-276-3 | 4 | 112.0 | 180.0 |
| 10PA1/10PB1 | 1-11261-063-0 | 8/10/12 | 115.0 | 219.5 |
| 6SA1 | 1-11261-065-3 | 6 | 115.0 | 216.0 |
| 6HH1 | 8-94393-273-1 | 6 | 115.0 | 209.8 |
| 4HG1 | 8-97351-558-0 | 4 | 115.0 | 180.0 |
| 8PC1/10PC1 | 1-11261-076-0 | 8/10 | 119.0 | 219.5 |
| 10PC1(new) | 1-11261-143-1 | 10 | 119.0 | 219.5 |
| 10PD1/12PD1 | 1-11261-161-1 | 10/12 | 119.0 | 234.5 |
| 6SD1 | 1-11261-106-2 | 6 | 120.0 | 239.2 |
| 6QA1 | 1-11261-160-0 | 6 | 125.0 | 282.0 |
| 1-11261-061-1 |
| 10PE1 | 1-11261-175-0 | 10 | 127.0 | 233.0 |
| 6RB1-MTC | 1-11261-116-0 | 6 | 132.9 | 267.0 |
| 4M-6RB1 | 1-11261-106-0 | 6 | 132.9 | 264.0 |
| 6WA1 | 1-11261-296-0 | 6 | 132.9 | 266.0 |
| E120 | 9-11261-290-0 | 6 | 135.0 | 264.0 |
| 6RA1/6RB1 | 1-11261-133-0 |
| 6WG1 | | 6 | 147.0 | 267.0 |
| 4JC1 | 8-94169-883-1 | 4 | 88.0 | 156.0 |
Huludao Heatspin Auto Parts Manufacturing Co. Ltd. specializes in the manufacturing of chrome-plated thin steel cylinder-liner. We also produce cylinder liner kits for ISUZU and other trucks.
Lying in the city of Xingcheng, (about four hours away from Tianjin and Beijing) which is by the Bohai Sea, the center of the old industrial base in Northeast China, currently being revitalized by the joint efforts of both the local and central governments, we enjoy the great advantage of our geographical location.
More than a dozen varieties of cylinder-liners covering seven series, namely 86 88 93 95 98 102 105, with brand names of "Heatspin" and "Universal" are manufactured here and sold well both at home and abroad, featuring excellent quality and reasonable price, with a very high performance versus price ratio.
Under the leadership of senior engineer Wang Shuxuan, who is also the patentee of steel cylinder-liner in China and a member of the panel of experts that drafted the standards for this industry, our company was founded in the year 2000. Centering around the theme of constant innovation and improvement of quality, Heatspin patents new inventions on a yearly basis. Our company passed the ISO9002 accreditation.
We constantly upgrade our facilities. As a result, all the key manufacturing procedures are automatic or semi-automatic. Currently, we have the output capacity of 300, 000 pieces of cylinder-liners and 12, 000 sets of liner kits. Among the domestic cylinder-liner manufacturers, we are the only manufacturer that boasts a complete production line that includes stretching and attenuating the steel pipe to make semi-finished products, plating and final product manufacturing. With a capacity of 500, 000 pieces of semi-finished products a year. Meeting our own needs, we supply other manufacturers with the rest.
