Jinan Xinyu Cemented Carbide Co., Ltd. >> ISO Made in China Tungsten Carbide Substrate for PDC

ISO Made in China Tungsten Carbide Substrate for PDC

ISO Made in China Tungsten Carbide Substrate for PDC
Price: US $ 0.1/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: various types
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Commodity Name: Carbide Rock Drilling Tip
Grade: Yg6c/Yg8c/Yg11c/Yg15c/Zd15 etc.
Material: 100% Virgin Tungsten Carbide
Certificate: ISO 9001-2008
Use: Mining, Rock, Oil-Field Drilling
Size: Customized
Color: Grey or as You Required
Machine Type: Drilling Tool
Advantage: 13 Years' Experience in Making Cemented Carbide Pl
Process: Forging

Product Description

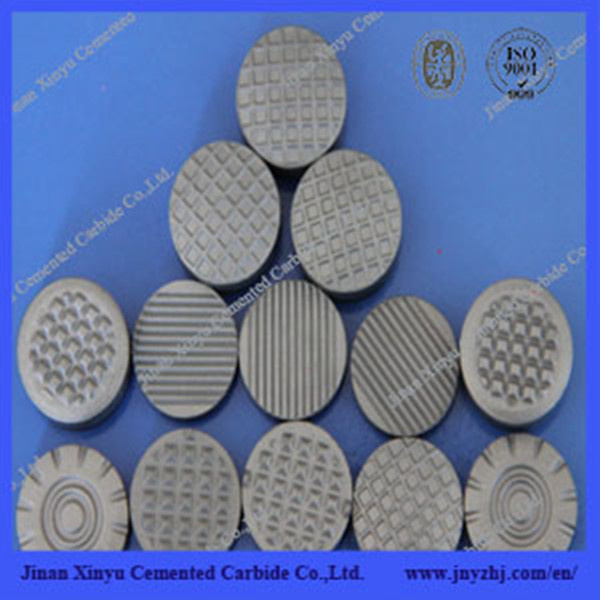

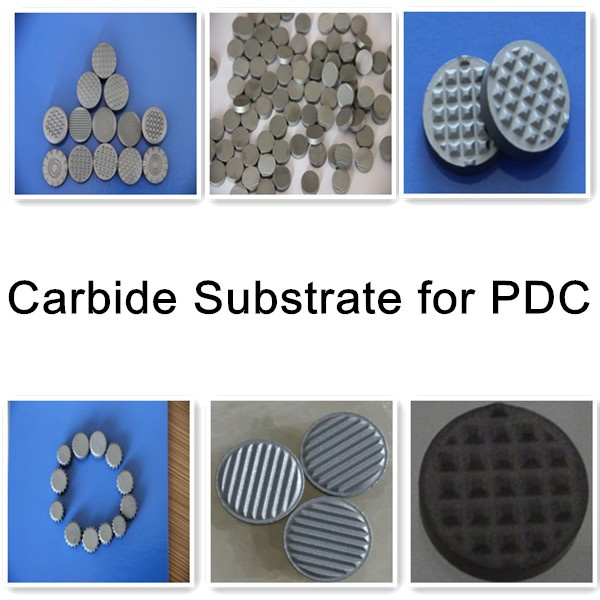

ISO Made in China Tungsten carbide Substrate for PDC


grades of cemented carbide plate

China Grade

ISO grade

Density

Hardness

TRS

(g/cm3)

(HRA)

(Mpa)

YG6

K20

14.95

91.0

1800

YG6X

K10

14.95

92.0

1800

YKM6A

K10

14.95

92.5

1800

YG8

K30

14.7-14.8

90.0

1950

YT5

P30

13

90.8

1900

YT14

P10-20

11.5

91.5

1500

YT15

P10-20

11.3

91.8

1450

YW1

M10-20

13.1

91.5

1600

YW2

M10-20

13.1

91.0

1600

YS25

P25

12.8

91.5

1900

YC30S

P30

12.8

91.0

2000

ZP35

P35

12.8

91.0

2000

YC40

P35

13.2

90.0

1850

Why choose us?
Experience: More than 13 years experience in making tungsten carbide products
Quality: ISO 9001:2008 quality control system
Service:Free online technical service, OEM & ODM service
Price:Competitive and reasonable
Market: Popular in America, Mid-east, Europe, South Asia and Africa.
Payment: All payment terms supported.
Sample:Free samples

product advantage
Material: 100% virgin raw material with submicron and average grain size.
Tolerance: strict tolerance extent control, which can reach +/-0.01mm;
Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.
Types: standard, conical, parabolic,ballistic
Physical performance: high hardness and impact toughness, very good mechanical & chemical stability
Our Company

Established in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licensed import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 countries and regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan etc. The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad. Our company has passed the ISO9001 surveillance and assessment and been praised as the first class AAA credit company.

Contact Us



Amanda Wang

JINAN XINYU CEMENTED CARBIDE CO., LTD



Address: Zhongmeng Village, Gaoguanzhai Town, Zhangqiu City, Shandong Province



Fax: 86-531-67897298

Website: www.jnxy.en.alibaba.com



If you have any questions or needs, please contact us on Trade Manager.



We will try our best to reply to your queries within 24 hours.

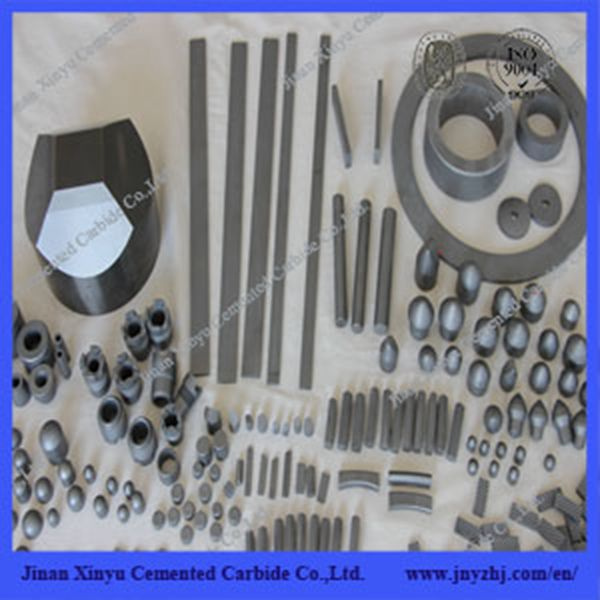

Founded in 2002 Jinan Xinyu Cemented Carbide Co., Ltd, is a large enterprise integrating R&D, manufacture and trade of cemented carbide in a whole. Our company mainly produces cemented carbide used in mine drilling, geological prospecting, coal mining, construction engineering, and cemented carbide anvil for diamond production. We also produce and finish all types of cemented carbide die, cobalt powder, tungsten carbide powder, diamond grinding wheel, cutting tools in flue gas turbines, long slices, chemical fiber cutting tools, nozzles specialized in oil fields, pipes and different types of wear-resisting, pressure-resisting and anti-corrosion parts. Besides, we can produce and process parts according to drawings and samples from customers'. Our company has advanced cemented carbide production technology in China, and series of advanced manufacturing equipment and detecting instruments such as low-pressure vacuum furnace, cold isostatic press, vertical vaccuum mixer, coercimeter, cobalt magnetic saturation instrument, high power metalloscope. Our annual output is above 500 tons and is on the rise every year. The quality of our products is stable and reliable.

Adhering to the operation concept of "Pursuing Survival with Quality, Promoting Development with Credit", our company guides our operation by advanced marketing concepts and strives to establish a marketing network system with reasonable layout, smooth channels and fast response. Our products are widely sold in domestic and abroad in Asia, Europe, Africa etc. Therefore, our company has become a leader in China's cemented carbide industry.

Our company always places people first, implements harmonious management and continuously improve employees living and working environment, which forms virtuous circle between development of company and improvement of employees' living, creates stable and harmonious internal environment for company's upgrade and development and achieved benefits both in economic and social.

While enforcing its core competitiveness, our company constantly seeks the expantion of industrial chains and wide international cooperation. Our international market share is unceasingly rising. An international cemented carbide famous-brand company is emerging.

Our factory is located in Jinan hi-tech industrial development zone with beautiful environment, fresh air and convenient transportation system. We warmly welcome all the clients to patronage.
